966.1 - Chaise Frame

  • Sale
  • PLEASE CALL FOR PRICING Regular price
Tax included.

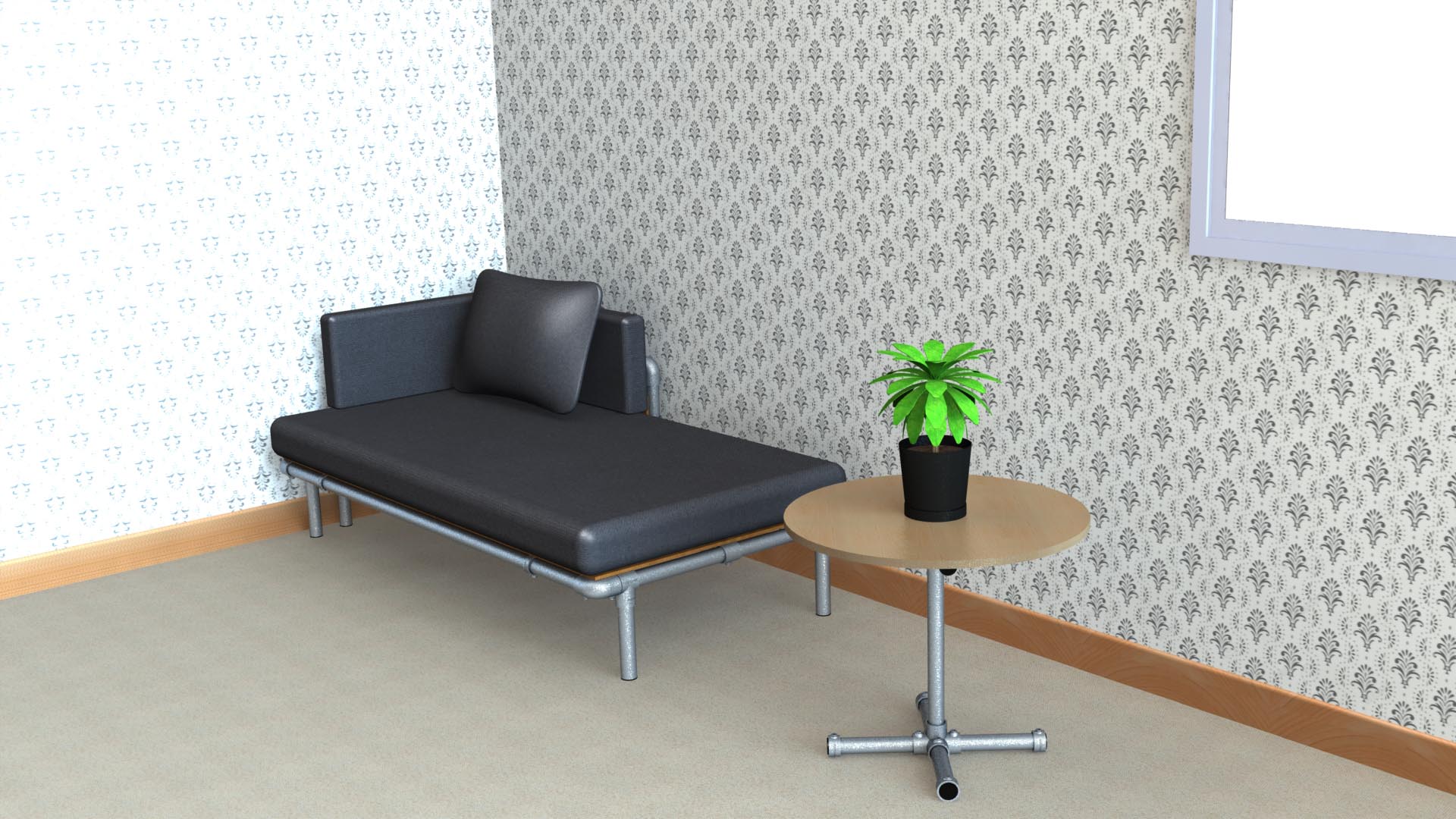

The TC966.1 Sofa Chaise Frame is a single seating sofa with a 2 way position design for people who want to alternate between sitting upright to watch TV or lying down to have a quick nap. You could also do the in-between and sit upright with your feet straight on top of the sofa for a more comfortable seating experience.

It has the advantage of easy disassembly and assembly for people living in high rise apartments as it can easily fit through doors, stairway or lifts in its disassembled state.

-Timber and cushioning pictured are not included in this kit

Kit contains:

TC101D Short Tee

TC125D Standard Elbow

TC133D End Cap Plastic

TC161D Standard Crossover

TC198D Double Lug Bracket

TC199D Single Lug Bracket

1900mm Tube

900mm Tube

700mm Tube

600mm Tube

350mm Tube

260mm Tube

Assembled size
L 90cm x W 190cm x H 90cm
Tube size: D 40NB/48.3mm

Custom Sizes:
If you want to order a custom size, the easiest way is to look at the image on the left with red and blue coloured letters and change the (L, H, W, etc) to your own dimensions.

You only need to fill in the dimensions in red.

After placing the kit in your cart, leave a message in the "Special Instructions to Seller" with your dimensions, or email us. We will get back to you soon with a quote.

Fitting Size
Tube Size
Tubeclamp Code
Outside Diameter
Imperial
Metric
T 21
21.3mm
½
15NB
A 27
26.9mm
¾
20NB
B 34
33.7mm
1
25NB
C 42
42.4mm
1 ¼
32NB
D 48
48.3mm
1 ½
40NB
E 60
60.3mm
2
50NB

*Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.




Product: TubeClamp® fittings
Material:

Fittings cast of malleable cast iron - galvanized finish
Cast iron fittings or casting to comply with AS 1832 (ISO 5922)
Hot Dipped Galvanized finish to comply with AS 4680

Set Screw:

Cup Point Case hardened setscrew in 45CR Alloy Steel (alternative* Stainless Steel 308)
Size C42, D48, E60 using 3/8” ISO 228 with 5/16” (8mm) hex key
Size A27, B34 using ¼” ISO 228 with ¼” (6.5mm) hex key
Size T21 using 1/8 BSF with 3/16” (5mm) hex key

Feature: No Welding Slip on Structural Fittings
Tensile Load: min 5,650 N axial load subjected to 40Nm tightened torque (FOS 2.0 min)
Testing: Internally by Solid Dynamics Engineering Pty Ltd. Testing videos are available upon request
Design: Tubeclamp Structural Fittings, when properly installed per manufacturing recommendations, meet or exceed all applicable requirements as specified by Australian Standard
Applications: Handrails, Trolley Bays, Temporary Structure, Shop Fittings, Furnitures and many more.
