199 - Single Lug Bracket

  • Sale
    • Prices ONLINE ONLY and are GST inclusive, Freight calculated at checkout.

     Price for selected size
  • $10.43
    •
    • ea

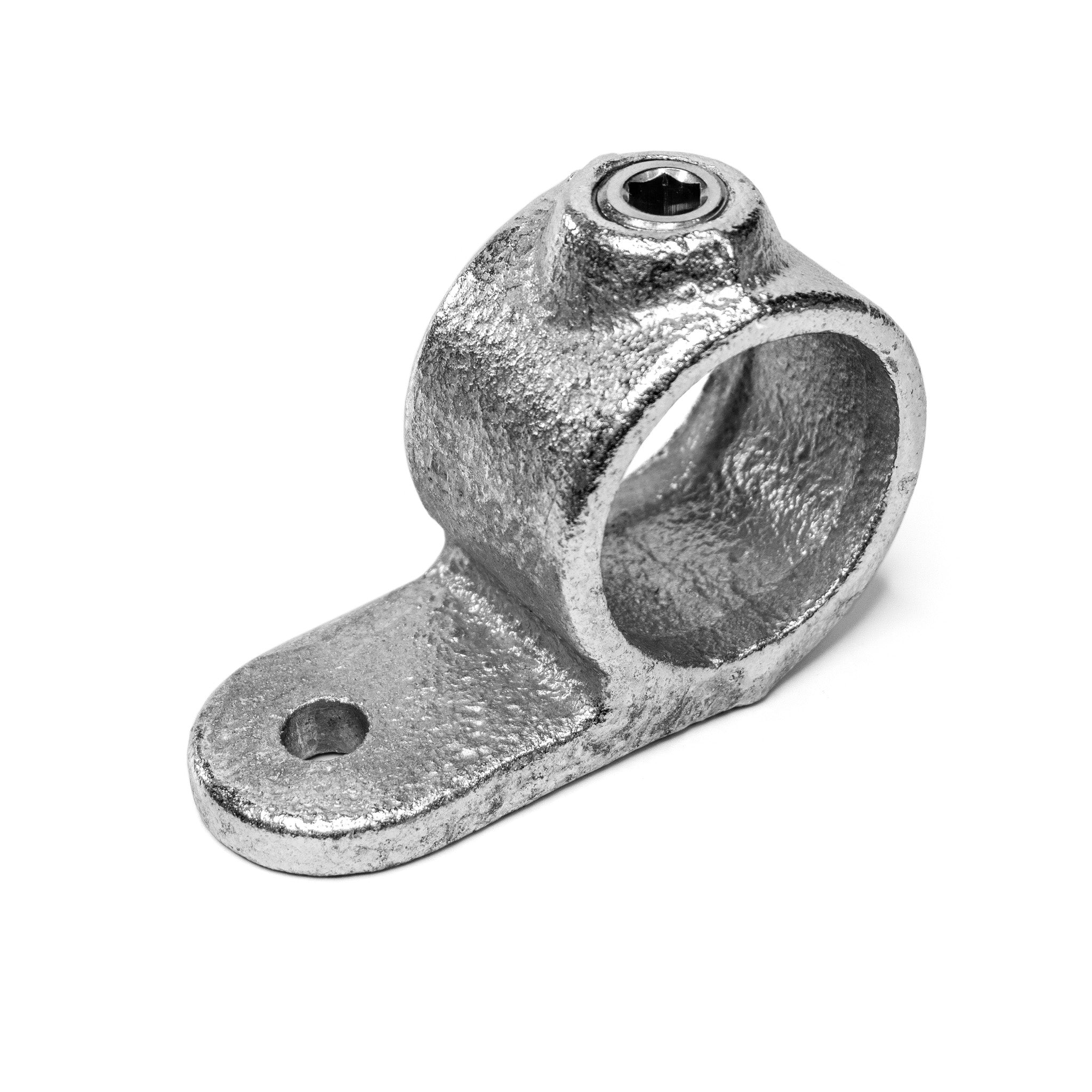

  • This single lug fitting connects to one piece of tube. Similar to TC173M Swivel Male it can attach sign boards onto tubular structures. TC198 Double Lug Bracket is a fitting which does the same job except it has two lugs instead of one.





    * Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

    * Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.


  • Fitting Size
    Tube Size
    Tubeclamp Code Kee Klamp Code Outside Diameter Imperial Metric
    T 21 4 21.3mm ½ 15NB
    A 27 5 26.9mm ¾ 20NB
    B 34 6 33.7mm 1 25NB
    C 42 7 42.4mm 1 ¼ 32NB
    D 48 8 48.3mm 1 ½ 40NB
    E 60 9 60.3mm 2 50NB

    *Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

  • Product: TubeClamp® fittings
    Material:

    Fittings cast of malleable cast iron - galvanized finish
    Cast iron fittings or casting to comply with AS 1832 (ISO 5922)
    Hot Dipped Galvanized finish to comply with AS 4680
    Set Screw:

    Cup Point Case hardened setscrew in 45CR Alloy Steel (alternative* Stainless Steel 308)
    Size C42, D48, E60 using 3/8” ISO 228 with 5/16” (8mm) hex key
    Size A27, B34 using ¼” ISO 228 with ¼” (6.5mm) hex key
    Size T21 using 1/8 BSF with 3/16” (5mm) hex key
    Feature: No Welding Slip on Structural Fittings
    Tensile Load: min 5,650 N axial load subjected to 40Nm tightened torque (FOS 2.0 min)
    Testing: Internally by Solid Dynamics Engineering Pty Ltd. Testing videos are available upon request
    Design: Tubeclamp Structural Fittings, when properly installed per manufacturing recommendations, meet or exceed all applicable requirements as specified by Australian Standard
    Applications: Handrails, Trolley Bays, Temporary Structure, Shop Fittings, Furnitures and many more.
