Suitable for both light and heavy duty applications, the TC946.1 offers strength with a sturdy, hard wearing frame and mobility with the inclusion of castors. The large table area has ample space which makes this ideal for both a retail and industrial use.
- Timber panels are not included
Kit contains:
1050mm Tube
950mm Tube
Assembled size:
L= 2100mm
W =1100mm
H= 850mm
Tube size: B 25NB/33.7mm
Custom Sizes:

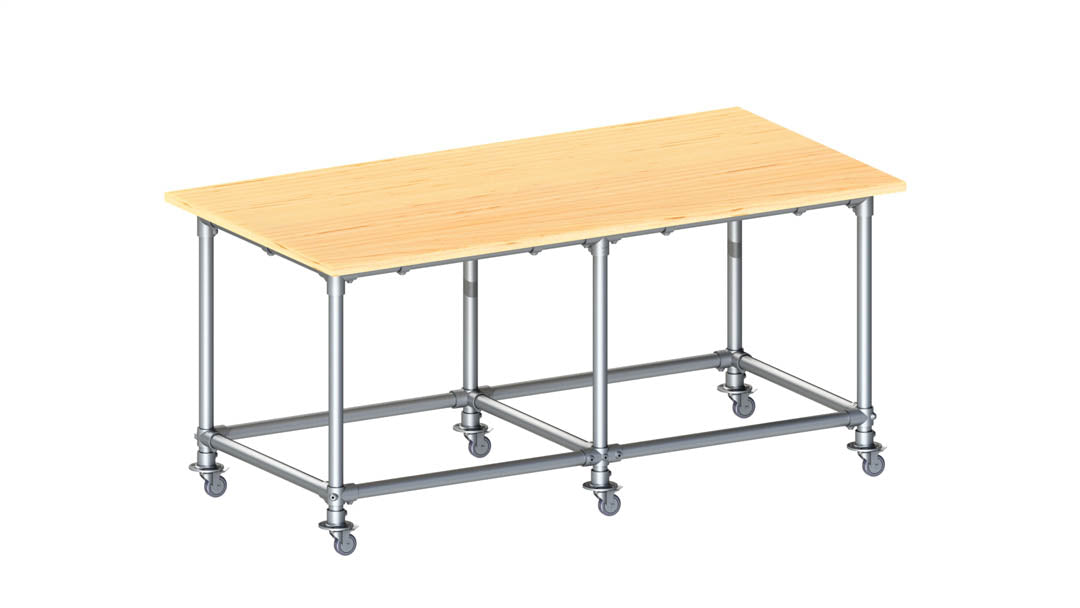

If you want to order a custom size, the easiest way is to look at the image on the left with red coloured letters and change the (L, H, W) to your own dimensions.
After placing the kit in your cart, leave a message in the "Special Instructions to Seller" with your dimensions, or email us. We will get back to you soon with a quote.
*Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.
| Product: | TubeClamp® fittings |
| Material: | Fittings cast of malleable cast iron - galvanized finish |
| Set Screw: | Cup Point Case hardened setscrew in 45CR Alloy Steel (alternative* Stainless Steel 308) |
| Feature: | No Welding Slip on Structural Fittings |
| Tensile Load: | min 5,650 N axial load subjected to 40Nm tightened torque (FOS 2.0 min) |
| Testing: | Internally by Solid Dynamics Engineering Pty Ltd. Testing videos are available upon request |
| Design: | Tubeclamp Structural Fittings, when properly installed per manufacturing recommendations, meet or exceed all applicable requirements as specified by Australian Standard |
| Applications: | Handrails, Trolley Bays, Temporary Structure, Shop Fittings, Furnitures and many more. |
