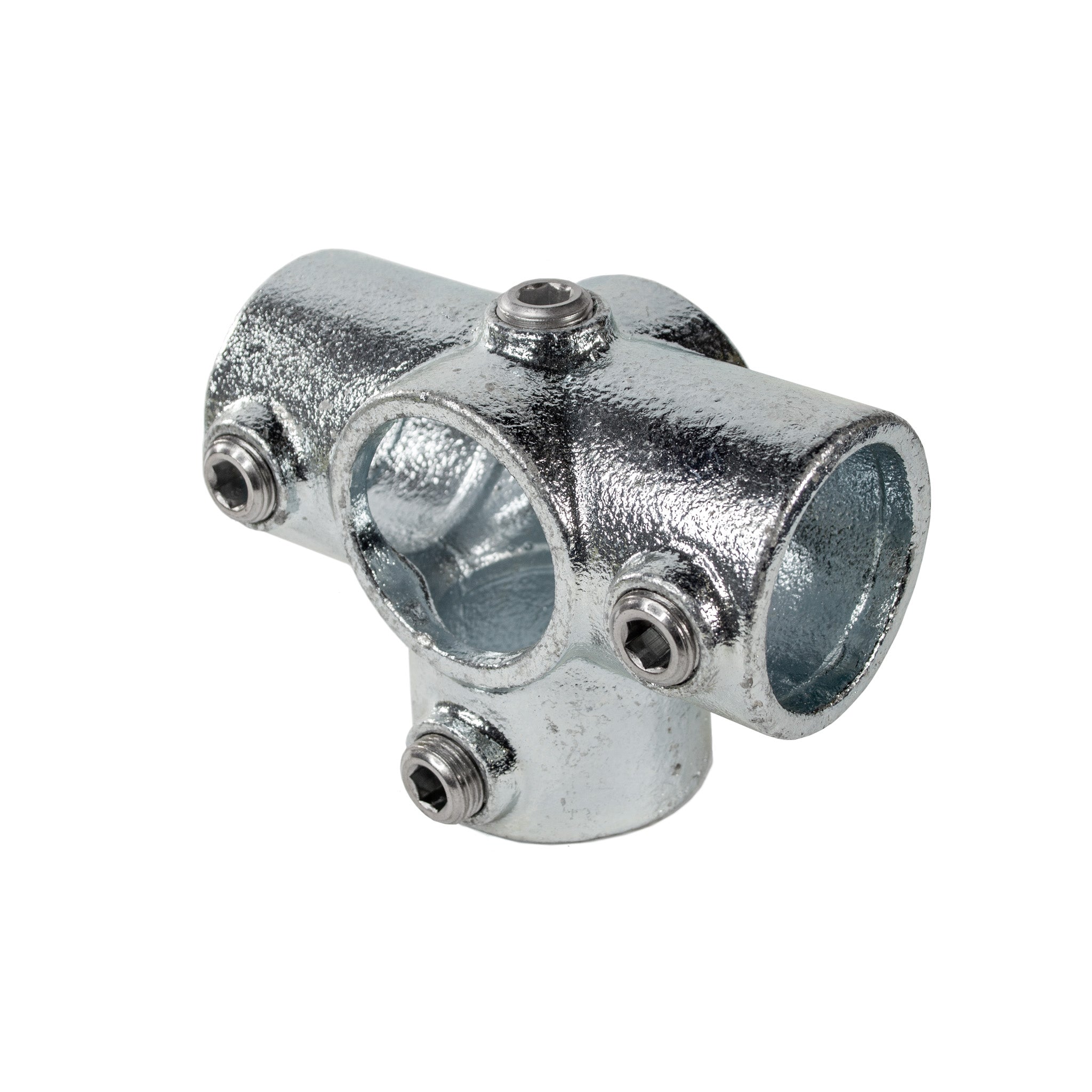

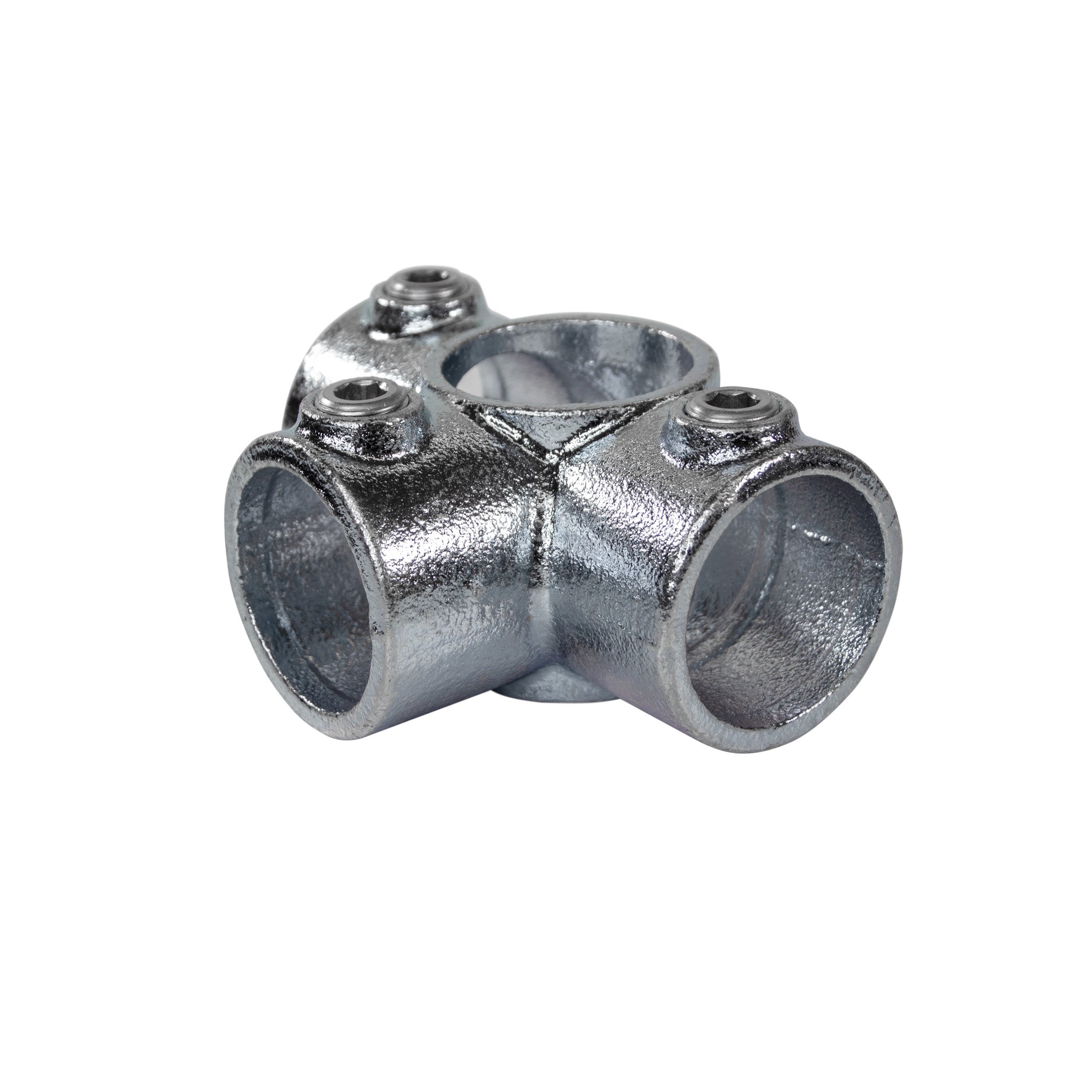

176 - Side Outlet Cross (Three Socket Cross) Galvanized Pipe Fitting

  • Sale
  • All prices are GST inclusive

    Freight to be calculated at checkout

  • Regular price $16.23



Buy in BULK and SAVE

Qty Price
1 - 3 $16.23
4 - 10 $15.42
11 - 19 $14.61
20 - + $12.98

  • This fitting combines 4 tubes together. tube 1 must be a continuous piece and tube 2, 3 and 4 are end pieces. Tube 1 is 90 degrees away from the other tubes. Tube 3 is 90 degrees away from tube 2, which in turn is 90 degrees away from tube 4. Tube 3 and 4 are on the same axis but a single tube cannot pass through.

  • Each fitting has various different sizes (A, B, C, D, E, T). First select which size tube or pipe you want to use, then look at the corresponding size in the table shown below. E.g. You want to use 48.3mm OD tube therefore you need Size D fittings.


  • Manufacturer: Solid Dynamics
    Brand: TubeClamp
    Material: Galvanise Steel

    Load:





    TubeClamp fittings are guarantee to hold minimum 5,650N axial load only when set screw is tightened to 40Nm which includes a safety factor of more than 2.
    Set Screw: Case Hardened Steel

    Standards:



    AS 1831 Ductile Cast Iron, AS 1832 Malleable Cast Iron, AS/NZS 4792 Hot-Dip Galvanized
