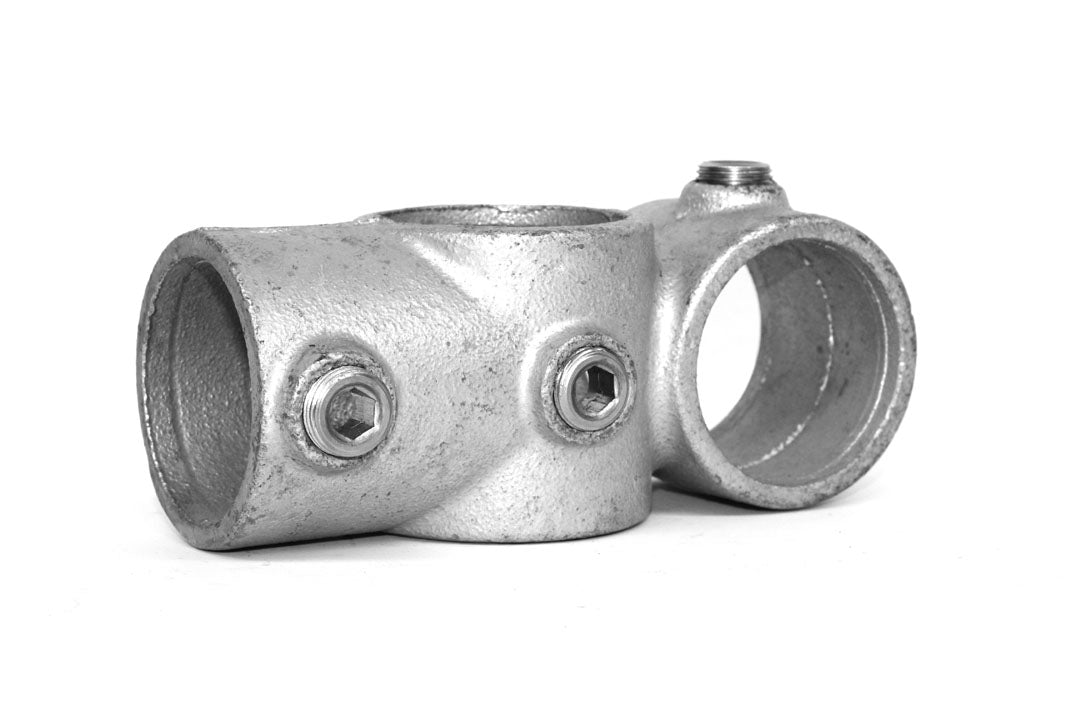

This fitting joins three tubes together. It is best described as putting a TC101 Short Tee and TC161 Standard Crossover together into one fitting. Similar to a TC176 Side Outlet Cross Tee. However, the difference between TC165 and TC176 is that TC165 has the 3rd tube fitting at the top, allowing an overlapping crossover of the horizontal tubes, housing a maximum of 3 tubes, whereas the TC176 does not allow an overlapping crossover and can house up to 4 tubes.
Designed for both indoor and outdoor projects, it features our easy slip-on and tighten connection system which only requires a hex key to secure.
It can be used in pipe structures, railings, racks and furniture.
- Alternative to TC176 Side Outlet Cross Tee
*Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.
Fittings cast of malleable cast iron - galvanized finish
Cup Point Case hardened setscrew in 45CR Alloy Steel (alternative* Stainless Steel 308)
|Feature:||No Welding Slip on Structural Fittings|
|Tensile Load:||min 5,650 N axial load subjected to 40Nm tightened torque (FOS 2.0 min)|
|Testing:||Internally by Solid Dynamics Engineering Pty Ltd. Testing videos are available upon request|
|Design:||Tubeclamp Structural Fittings, when properly installed per manufacturing recommendations, meet or exceed all applicable requirements as specified by Australian Standard|
|Applications:||Handrails, Trolley Bays, Temporary Structure, Shop Fittings, Furnitures and many more.|
