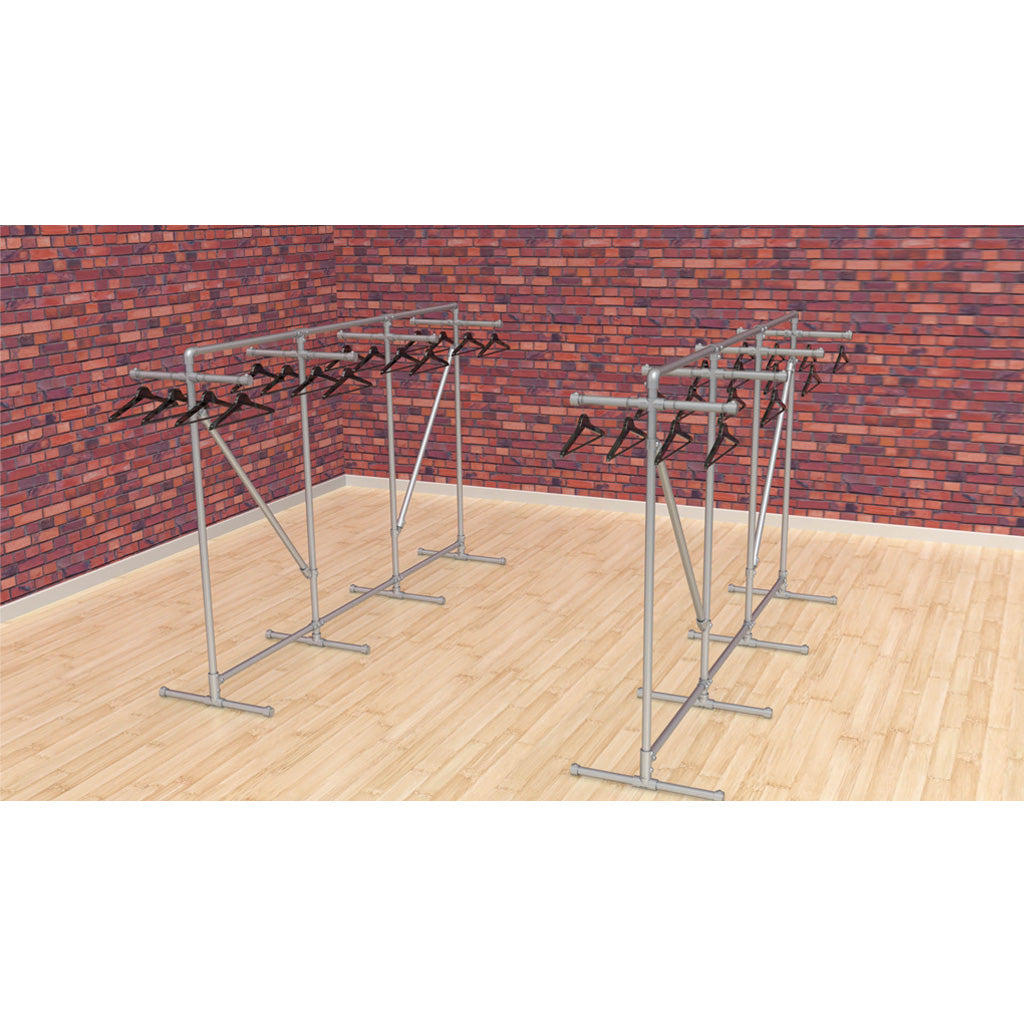

902.1 "RoddyGunn" Clothes Rack 1.5m high x 2.4m long

  • Sale
  • Regular price $556.76
Tax included.


Looking for a way to feature your latest stock arrivals or show off your best retail clothing? Look no further! Optimize your product display and let your clothing capture the customer's attention with this simple minimalist display rack.

This freestanding in-line clothes rack is capable of supporting heavy garments on both sides of the rack, allowing you to display more with less floor space.

(Note: one frame structure only)

Kit contains:

TC104B Long Tee

TC119B Standard Cross Tee

TC125B Standard Elbow

TC133B End Cap Plastic

TC173B Swivel Combination

TC179B Locking Ring

1500mm

1150mm

800 mm

600mm

300mm

Assembled Size:
W 60cm x L 240cm x H 150cm
Tube size: B 25NB/33.7mm

Custom Sizes:
If you want to order a custom size, the easiest way is to look at the image on the left with red and blue coloured letters and change the (L, H, W, S, etc) to your own dimensions.

You only need to fill in the dimensions in red.

After placing the kit in your cart, leave a message in the "Special Instructions to Seller" with your dimensions, or email us. We will get back to you soon with a quote.

Fitting Size
Tube Size
Tubeclamp Code
Outside Diameter
Imperial
Metric
T 21
21.3mm
½
15NB
A 27
26.9mm
¾
20NB
B 34
33.7mm
1
25NB
C 42
42.4mm
1 ¼
32NB
D 48
48.3mm
1 ½
40NB
E 60
60.3mm
2
50NB

*Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.




Product: TubeClamp® fittings
Material:

Fittings cast of malleable cast iron - galvanized finish
Cast iron fittings or casting to comply with AS 1832 (ISO 5922)
Hot Dipped Galvanized finish to comply with AS 4680

Set Screw:

Cup Point Case hardened setscrew in 45CR Alloy Steel (alternative* Stainless Steel 308)
Size C42, D48, E60 using 3/8” ISO 228 with 5/16” (8mm) hex key
Size A27, B34 using ¼” ISO 228 with ¼” (6.5mm) hex key
Size T21 using 1/8 BSF with 3/16” (5mm) hex key

Feature: No Welding Slip on Structural Fittings
Tensile Load: min 5,650 N axial load subjected to 40Nm tightened torque (FOS 2.0 min)
Testing: Internally by Solid Dynamics Engineering Pty Ltd. Testing videos are available upon request
Design: Tubeclamp Structural Fittings, when properly installed per manufacturing recommendations, meet or exceed all applicable requirements as specified by Australian Standard
Applications: Handrails, Trolley Bays, Temporary Structure, Shop Fittings, Furnitures and many more.
