Bike 492 - A-Frame Event Bicycle Parking Bay

  • Sale
  • Regular price $222.19
Tax included.


A-Frame Bike Parking Solution - Suitable for small business, cafe or events parking. The K492 A-Frame Bike Park is 2m long and can be linked together to provide additional bike parking.

This product is adjustable, can be disassembled, stored flat and easily rebuilt using an Allen Key. Suitable for home or business. Provide a convenient place for your customer’s bikes and make your business more attractive to potential customers. Perfect for biking events. Build it and they will come!

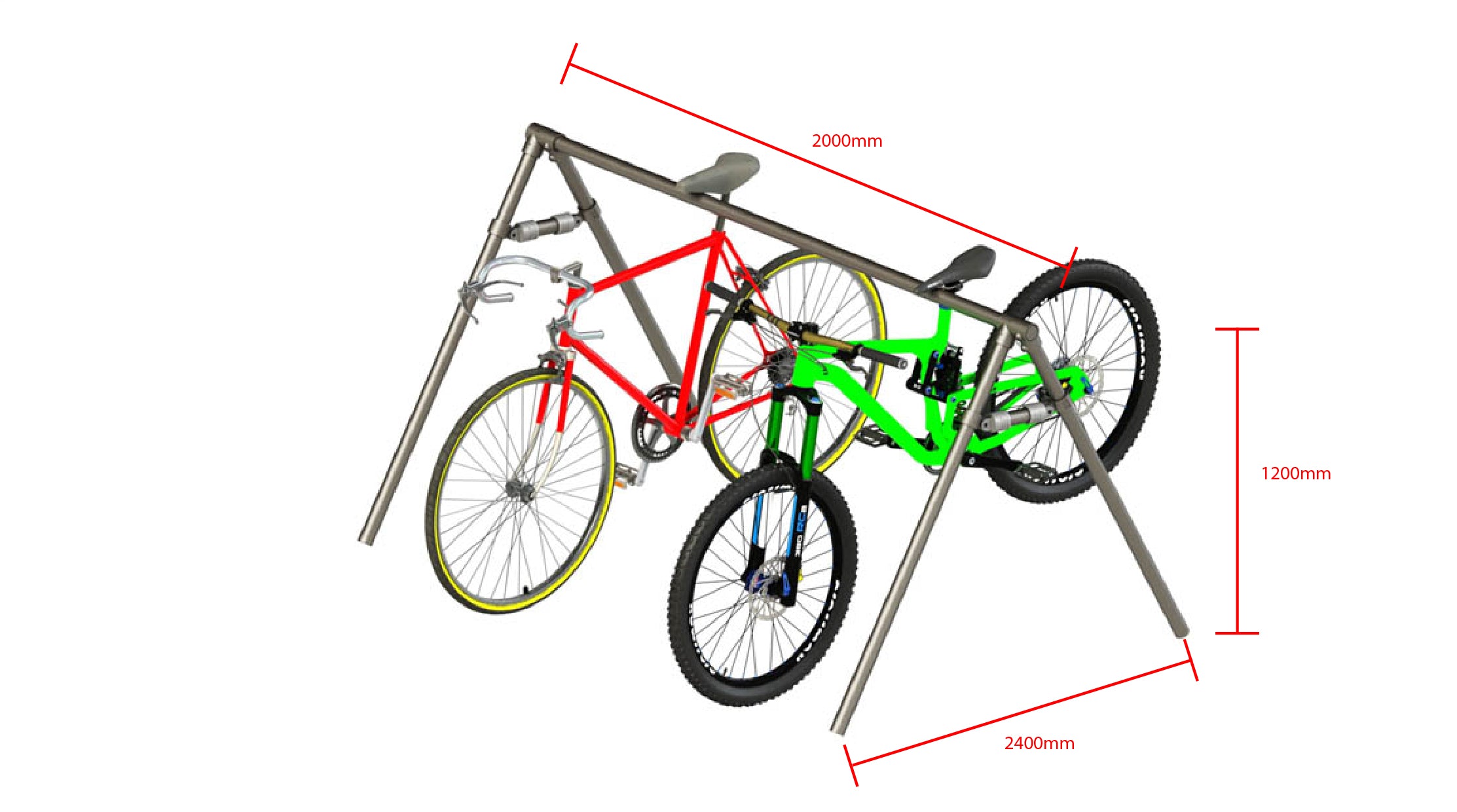

Dimensions:
L: 2000mm
W: 2400mm
H:1200mm
25NB/33.7mm Tube Used

Fitting Size
Tube Size
Tubeclamp Code
Outside Diameter
Imperial
Metric
T 21
21.3mm
½
15NB
A 27
26.9mm
¾
20NB
B 34
33.7mm
1
25NB
C 42
42.4mm
1 ¼
32NB
D 48
48.3mm
1 ½
40NB
E 60
60.3mm
2
50NB

*Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.




Product: TubeClamp® fittings
Material:

Fittings cast of malleable cast iron - galvanized finish
Cast iron fittings or casting to comply with AS 1832 (ISO 5922)
Hot Dipped Galvanized finish to comply with AS 4680

Set Screw:

Cup Point Case hardened setscrew in 45CR Alloy Steel (alternative* Stainless Steel 308)
Size C42, D48, E60 using 3/8” ISO 228 with 5/16” (8mm) hex key
Size A27, B34 using ¼” ISO 228 with ¼” (6.5mm) hex key
Size T21 using 1/8 BSF with 3/16” (5mm) hex key

Feature: No Welding Slip on Structural Fittings
Tensile Load: min 5,650 N axial load subjected to 40Nm tightened torque (FOS 2.0 min)
Testing: Internally by Solid Dynamics Engineering Pty Ltd. Testing videos are available upon request
Design: Tubeclamp Structural Fittings, when properly installed per manufacturing recommendations, meet or exceed all applicable requirements as specified by Australian Standard
Applications: Handrails, Trolley Bays, Temporary Structure, Shop Fittings, Furnitures and many more.
