Name: SQ 173 - Box Swivel Tee Components (SHS 25 & 40)
Brand: Tubeclamp AU
SKU: SQ173M 25
Price: 6.97 AUD
Availability: InStock

SQ 173 - Box Swivel Tee Components (SHS 25 & 40)

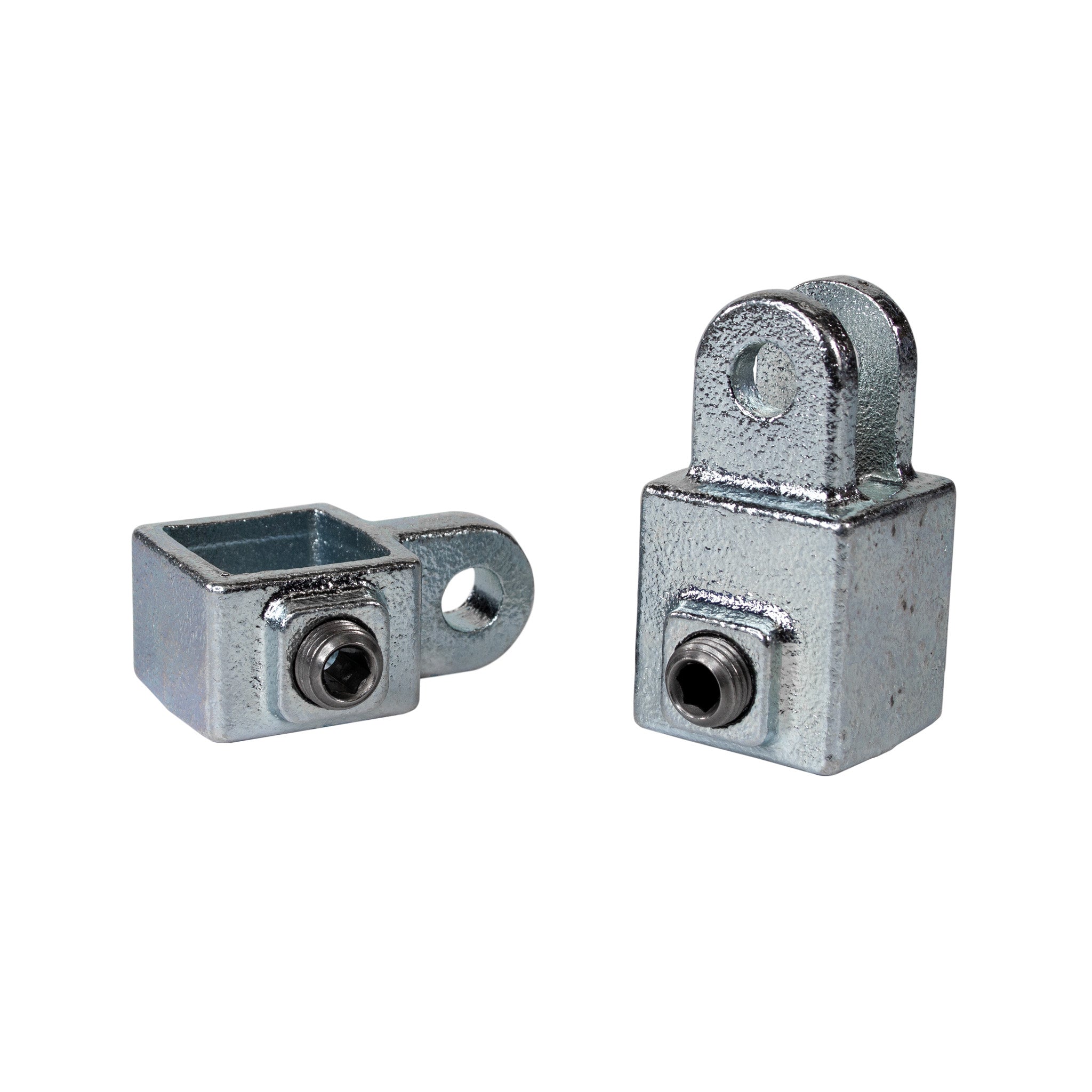

Male and Female components used to build SQ173 Box Swivel Tee Combination or as individual standalone fittings.

Product appearance and finishes may differ by manufacturer and batch. Uniform finishes cannot be guaranteed.

6.97

SQ 173 - Box Swivel Tee Components (SHS 25 & 40)

6.97

Male and Female components used to build SQ173 Box Swivel Tee Combination or as individual standalone fittings.

Suits Bar Size

SHS 25 x 25mm SHS 40 x 40mm

Part Type

Male Female

OD = Outside Diameter | NB = Nominal Bore (hollow core of the tube)*
* May vary based on wall thickness

PAYMENT METHODS ACCEPTED

Details

Male and Female component fittings used to build SQ173 Box Swivel Tee Combinations, or
The TC173M fitting joins onto a tube and is often used as a component to build the SQ173 Box Swivel Tee Combination.

However this fitting can also be used as a stand alone piece to mount signs and shelving similar to the SQ199 Box Single Lugged Bracket.

NOTE: you can't fix the angle using a bolt and nut. You need to secure the tube end into place.

Designed for both indoor and outdoor projects, it features our easy slip-on and tighten connection system which only requires a hex key to secure.

Common Usage

The SQ173 fitting can be used within pipe structures, hand railings, racks and furniture.

Male and female component fittings for building SQ173 Box Swivel Tee combinations. Slip-on connection system requires only a hex key.

Technical Information

Material:
Fittings cast of malleable cast iron - galvanized finish

Cast iron fittings or casting to comply with AS 1832 (ISO 5922)

Hot Dipped Galvanized finish to comply with AS 4680.

Set Screw:

Cup Point Case hardened setscrew in 45CR Alloy Steel (alternative* Stainless Steel 308)

Size C42, D48, E60 using 3/8” ISO 228 with 5/16” (8mm) hex key

Size A27, B34 using ¼” ISO 228 with ¼” (6.5mm) hex key

Size T21 using 1/8 BSF with 3/16” (5mm) hex key.

Feature:
No welding required. Structural fittings slip directly onto bar and are secured using an allen key to tightened provided setscrews.

Tensile Load:
Min 5,650 N axial load subjected to 40Nm tightened torque (FOS 2.0 min).

Testing:
Tested internally by Solid Dynamics Engineering Pty Ltd. Testing videos are available upon request.

Design:
Tubeclamp Structural Fittings, when properly installed per manufacturing recommendations, meet or exceed all applicable requirements as specified by Australian Standard.

Application:
Handrails, Trolley Bays, Temporary Structure, Shop Fittings, Furnitures and many more.

Size Guide

Please note that not all sizes are available for every product.

Tube Size Reference Chart

Fitting Size Code

Outside Diameter

NB (Metric)

NB (Imperial)

T21	21.3mm	15	1/2"
A27	26.9mm	20	3/4"
B34	33.7mm	25	1"
C42	42.4mm	32	1 1/4"
D48	48.3mm	40	1 1/2"
E60	60.3mm	50	2"
SHS25	25 x 25mm	N/A	N/A
SHS40	40 x 40mm	N/A	N/A
G50	50mm (Alu)	N/A	N/A

*Figures given as guidance only, dimensions and weights are subject to manufacturing tolerances and may be altered without prior notice.

Product FAQ

Which fitting size do I chose?

We offer our Boxclamp fittings in two sizes according to Australian standard square bar sizes, ranging from 25 x 25mm to 40 x 40mm.

To select the right fitting, simply measure the outside diameter (OD) of your pipe and choose the corresponding fitting size.

For example, if your bar has a 40mm outside diameter, you would select the SHS 40x 40mm fitting size.

Metric or Imperial?

You'll see a table that compares various international measurements in the 'Size Guide' section above.

Why is the fitting bigger then my tube?

Our fittings are intentionally made slightly larger than the pipes they correspond to, so that they can easily slide onto both straight and bent bars. If you're worried that the gap might be too big, you can try replacing the grubscrews/setscrews with longer ones.

What are your fittings made from?

Our Tubeclamp fittings are made from Galvanised Steel. Alternatively you can check out of range of Aluminium fittings, or consider having your fittings powder coated.

Where can i find size specifications for each fitting?

You can easily locate size diagrams for most fittings in the example images provided for each product. These diagrams provide approximate measurements for each fitting size.
