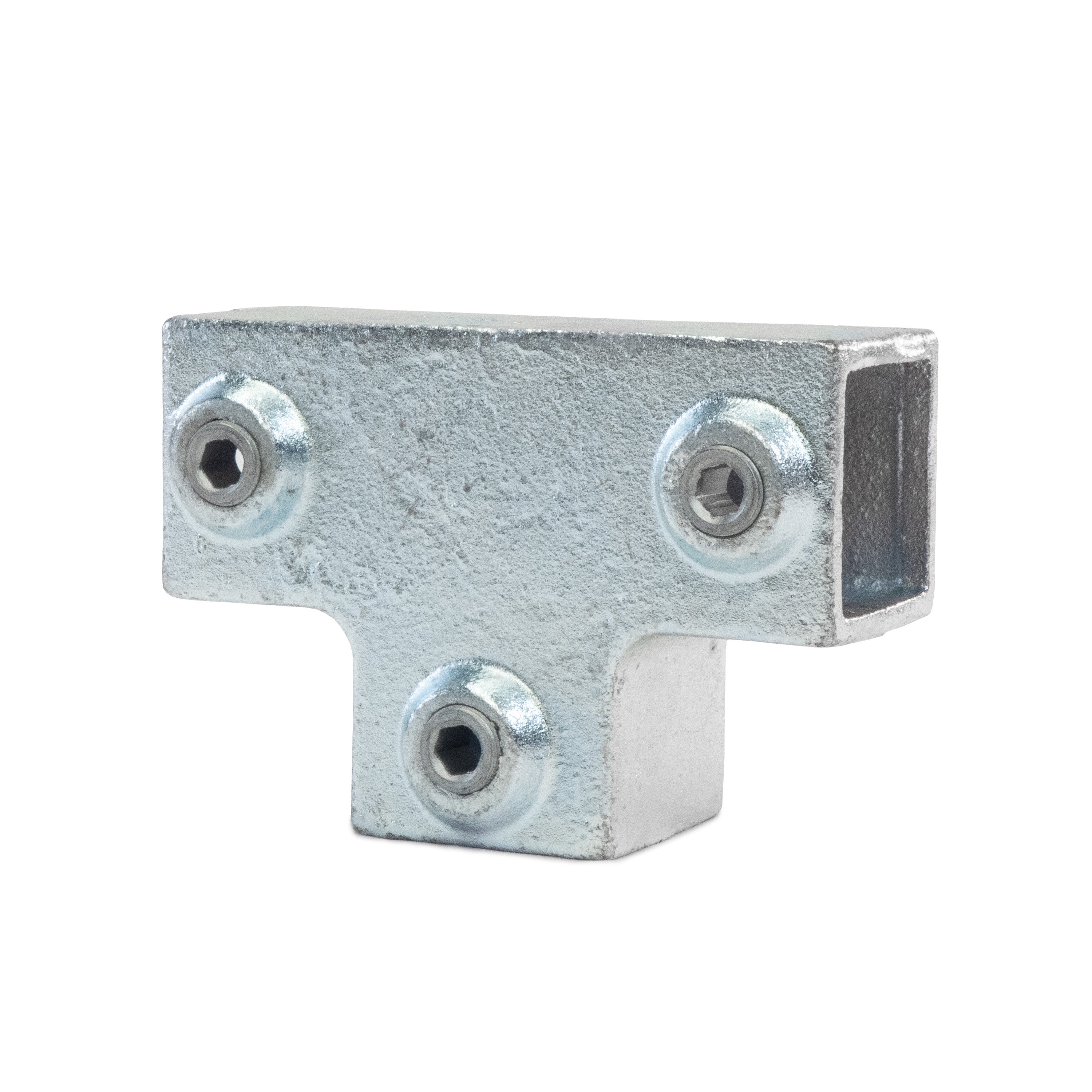

SQ 104 - Box Long Tee

$
15.75

$
Tax Included.
Size
SHS 25 x 25mm SHS 40 x 40mm
PAYMENT METHODS ACCEPTED

Bulk Buying Discounts

Purchase in bulk to earn a discounted price.*
*Discount will be applied automatically to your cart.

Minimum Qty

Discount

Buy 5+
5% Off
Buy 10+
10% Off
Buy 20+
15% Off
Buy 40+
18% Off
Buy 50+
22% Off
Details
expand_less
expand_more

The basic function of the SQ104 Box Long Tee is to connect up to three Square Hollow Section (SHS) bars together into a 90-degree T-joint connection

These Tubeclamp fittings have a socket to receive one of the bars. The other two bars slide through the slip-on section perpendicular to the socket. Setscrews (included) will create a secure connection between the bar and the fitting.

Designed for both indoor and outdoor projects, it features our easy slip-on and tighten connection system which only requires a hex key to secure.



-For a fitting to suit circular tube instead use TC104 Long Tee.




Common Usage



We commonly see this fitting used in railing applications.  It can be used on the top of intermediate uprights to support the railing, and at the end of sections to terminate the mid-rails.

It is used to build just about any rectangular structure, such as desks, bed frames, and racking structures.



Technical Information
expand_less
expand_more
Material:
Fittings cast of malleable cast iron - galvanized finish

Cast iron fittings or casting to comply with AS 1832 (ISO 5922)

Hot Dipped Galvanized finish to comply with AS 4680.


Set Screw:

Cup Point Case hardened setscrew in 45CR Alloy Steel (alternative* Stainless Steel 308)

Size SHS 40mm with 5/16” (8mm) hex key

Size SHS 25mm with ¼” (6.5mm) hex key


Feature:
No welding required. Structural fittings slip directly onto bar and are secured using an allen key to tightened provided setscrews.

Tensile Load:
Min 5,650 N axial load subjected to 40Nm tightened torque (FOS 2.0 min).

Testing:
Tested internally by Solid Dynamics Engineering Pty Ltd. Testing videos are available upon request.

Design:
Tubeclamp Structural Fittings, when properly installed per manufacturing recommendations, meet or exceed all applicable requirements as specified by Australian Standard.

Application:
Handrails, Trolley Bays, Temporary Structure, Shop Fittings, Furnitures and many more.
Size Guide
expand_less
expand_more

Fitting Size

Tube Size

Tubeclamp Code

Outside Diameter

Imperial

Metric

SHS 25
25mm
0.98"
25 x 25mm
SHS 40
40mm
1.57"
40 x 40mm

*Figures given as guidance only, dimensions and weights are subject to manufacturing tolerances and may be altered without prior notice.

Australia Wide Shipping

You can choose between picking up your order from the store or getting it delivered to your doorstep anywhere in Australia. If you place your order before 10am from Monday to Friday, we'll make sure to dispatch it on the same day. For orders placed after this time or on public holidays, we'll dispatch them on the next working day.

Our Return Policy

Tubeclamp allows customers to return unused products in good condition within 5 days of purchase. However, please note that there may be a handling/restocking fee of up to twenty (20%) of the invoice value for returns. Alternatively, Tubeclamp also offers the option to exchange returned items for products of similar value. Please keep in mind that certain items, such as cut bars or altered/modified products, may not be eligible for return.

For further information, please feel free to contact us directly.

BOXCLAMP FITTINGS

No Welding - No Special Tools - No Bending Needed

Frequently Asked Questions

Which fitting size do i chose?

We offer our Boxclamp fittings in two sizes according to Australian standard square bar sizes, ranging from 25 x 25mm to 40 x 40mm. To select the right fitting, simply measure the outside diameter (OD) of your pipe and choose the corresponding fitting size.

For example, if your bar has a 40mm outside diameter, you would select the SHS 40x 40mm fitting size.

Metric or Imperial?

You'll see a table that compares various international measurements in the 'Size Guide' section below the product details at the top of this page.

Why is the fitting bigger then my tube?

Our fittings are intentionally made slightly larger than the pipes they correspond to, so that they can easily slide onto both straight and bent bars. If you're worried that the gap might be too big, you can try replacing the grubscrews/setscrews with longer ones.

What are your fittings made from?

Our Tubeclamp fittings are made from Galvanised Steel. Alternatively you can check out of range of Aluminium fittings, or consider having your fittings powder coated.

Where can i find size specifications for each fitting?

You can easily locate size diagrams for most fittings in the example images provided for each product. These diagrams provide approximate measurements for each fitting size.
