Name: SQ 131 - Box Wall Flange
Brand: Tubeclamp
SKU: SQ131 25
Price: 17.87 AUD
Availability: InStock

Variations in appearance may occur due to different manufacturers and batches, but functionality remains consistent across all products.

Swipe for additional images

SQ 131 - Box Wall Flange

17.87

Tax Included.

Size

SHS 25 x 25mm SHS 40 x 40mm

PAYMENT METHODS ACCEPTED

Bulk Buying Discounts

Purchase in bulk to earn a discounted price.*
*Discount will be applied automatically to your cart.

Minimum Qty	Discount
Buy 5+	5% Off
Buy 10+	10% Off
Buy 20+	15% Off
Buy 40+	18% Off
Buy 50+	22% Off

Details

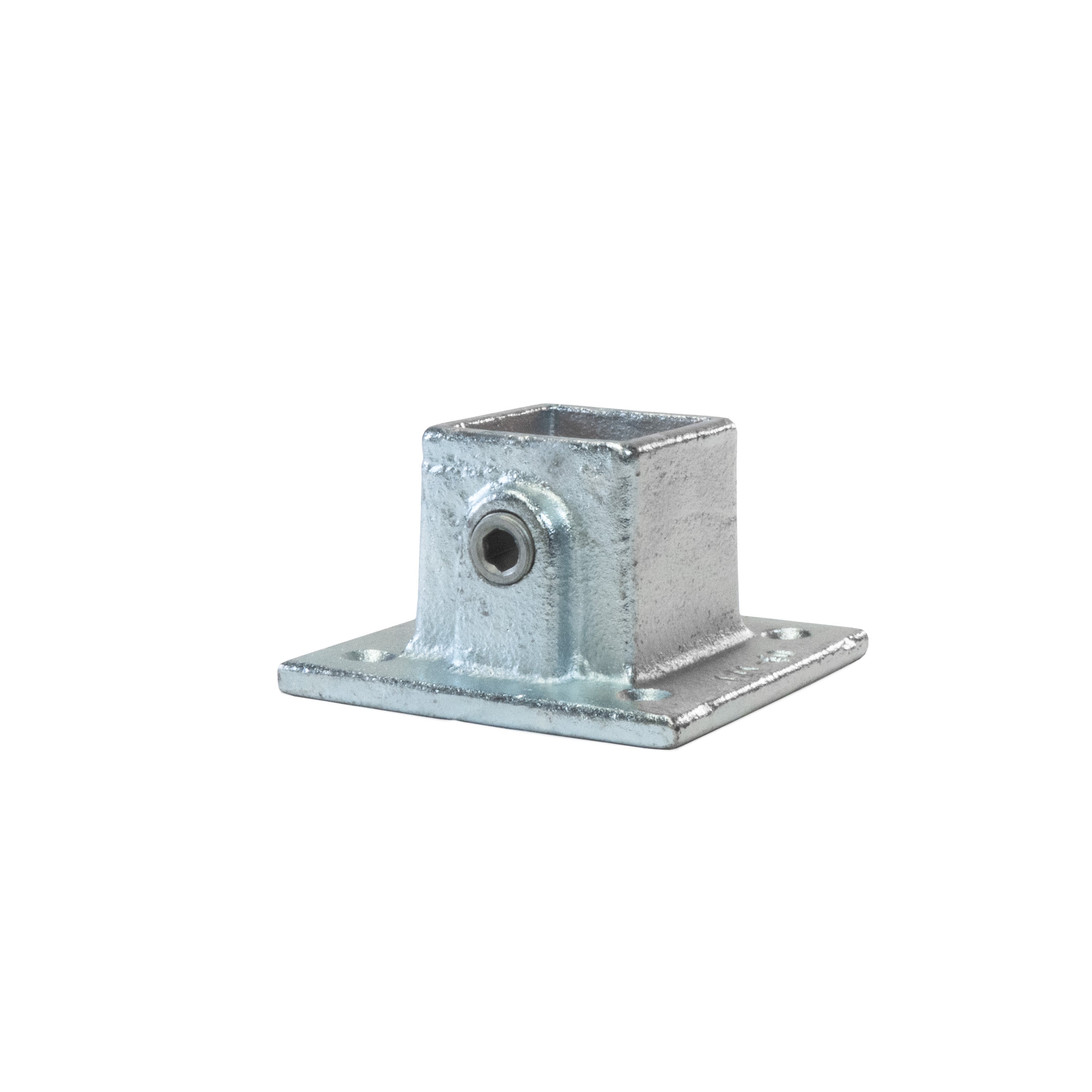

The SQ131 Box Wall Flange fitting goes over the end of a Square Hollow Section bar (SHS) and is used for mounting bars to walls or the ground at a 90 degree angle. Four holes in the base of this flange allows a secure means of attachment to a solid surface.

Designed for both indoor and outdoor projects, these fittings feature our easy slip-on and tightens connection system which only requires a hex key to secure.

- For a fitting to suit circular tube instead use TC131 Wall Flange Round or TC131SQ Wall Flange Square.

Common Usage

We typically see this fitting used in railing applications, pipe structures, furniture, racks and signage where it acts as a solid base to mount structures to solid walls or floors.

- While this fitting can be used to mount structures to floors it does not have the same structural stability as a dedicated floor flange. We recommend using the SQ132 Box Floor Flange for mounting handrails to floors instead.

Technical Information

Material:
Fittings cast of malleable cast iron - galvanized finish

Cast iron fittings or casting to comply with AS 1832 (ISO 5922)

Hot Dipped Galvanized finish to comply with AS 4680.

Set Screw:

Cup Point Case hardened setscrew in 45CR Alloy Steel (alternative* Stainless Steel 308)

Size SHS 40mm with 5/16” (8mm) hex key

Size SHS 25mm with ¼” (6.5mm) hex key

Feature:
No welding required. Structural fittings slip directly onto bar and are secured using an allen key to tightened provided setscrews.

Tensile Load:
Min 5,650 N axial load subjected to 40Nm tightened torque (FOS 2.0 min).

Testing:
Tested internally by Solid Dynamics Engineering Pty Ltd. Testing videos are available upon request.

Design:
Tubeclamp Structural Fittings, when properly installed per manufacturing recommendations, meet or exceed all applicable requirements as specified by Australian Standard.

Application:
Handrails, Trolley Bays, Temporary Structure, Shop Fittings, Furnitures and many more.

Size Guide

Fitting Size

Tube Size

Tubeclamp Code

Outside Diameter

Imperial

Metric

SHS 25	25mm	0.98"	25 x 25mm
SHS 40	40mm	1.57"	40 x 40mm

*Figures given as guidance only, dimensions and weights are subject to manufacturing tolerances and may be altered without prior notice.
