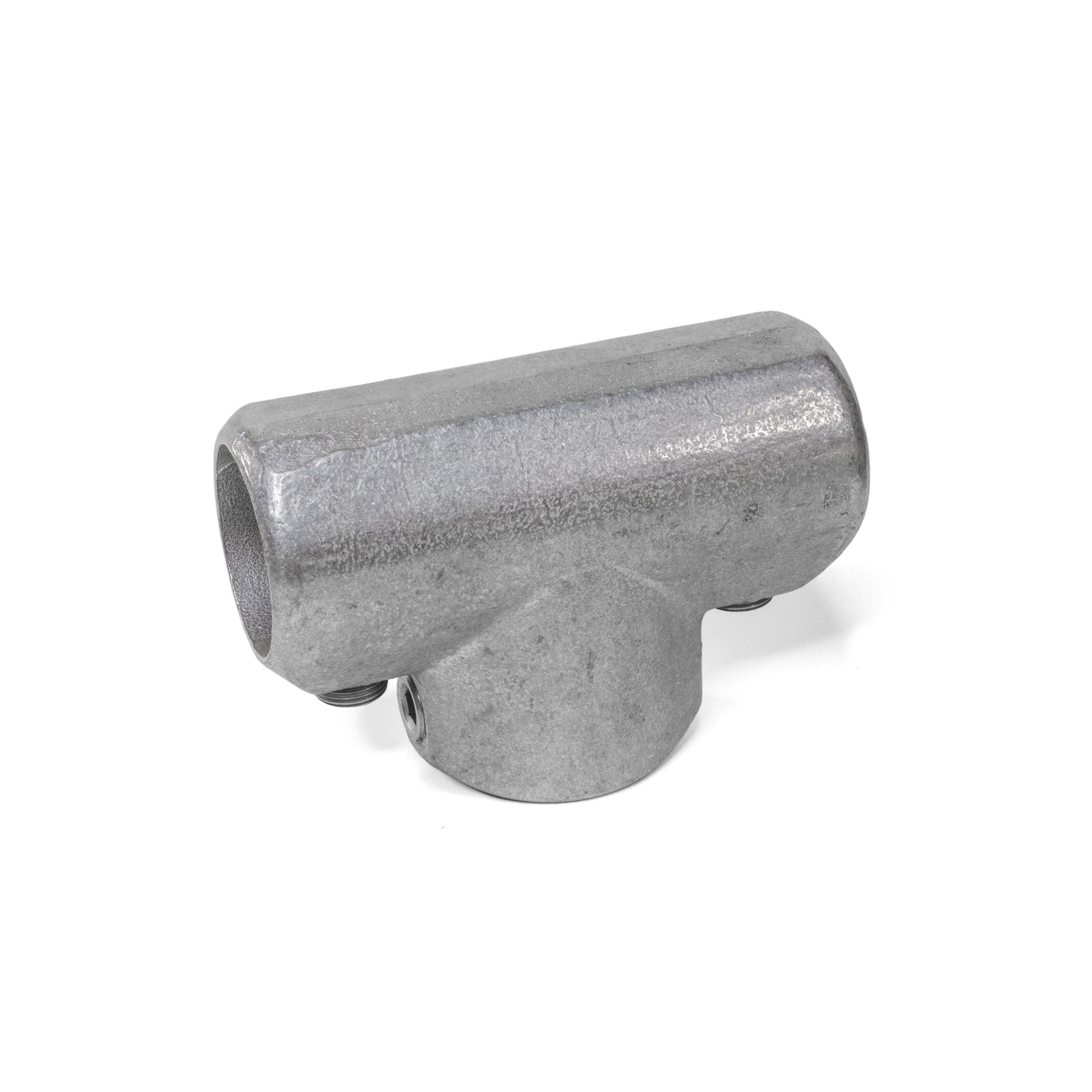

Alloy Fitting Long Tee

  • Sale
  • Regular price $51.01
Tax included.


* ALLOY NOT AVAILABLE FOR PICK UP IN MELBOURNE ALL ALLOY SHIPPED FROM SYDNEY

Commonly used as the 90 Degree joint between the top rail and an intermediate upright on safety railing. As there are two socket set screws in the sleeve, this fitting can be used where a join is required in the horizontal tube.

This fitting is available for 42.4mm & 48.3mm only.







Fitting Size
Tube Size
Tubeclamp Code
Outside Diameter
Imperial
Metric
T 21
21.3mm
½
15NB
A 27
26.9mm
¾
20NB
B 34
33.7mm
1
25NB
C 42
42.4mm
1 ¼
32NB
D 48
48.3mm
1 ½
40NB
E 60
60.3mm
2
50NB

*Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.




Product: LiteClamp® fittings
Material:

Lightweight high strength Aluminium-Magnesium Alloy A535

Set Screw:

Forged internal/external knurled cup point set screw with class 3A threads 6mm with 5mm hex (allen) socket key

Feature: Corrosion Resistance
Permanent shinny surface
Low Maintenance
Tensile Load: Up to 185kg (with FOS 1.5 min)
Testing: Internally by Solid Dynamics Engineering Pty Ltd. Testing videos are available upon request
Applications: Handrails, Shop Fittings, Furnitures and many more.
