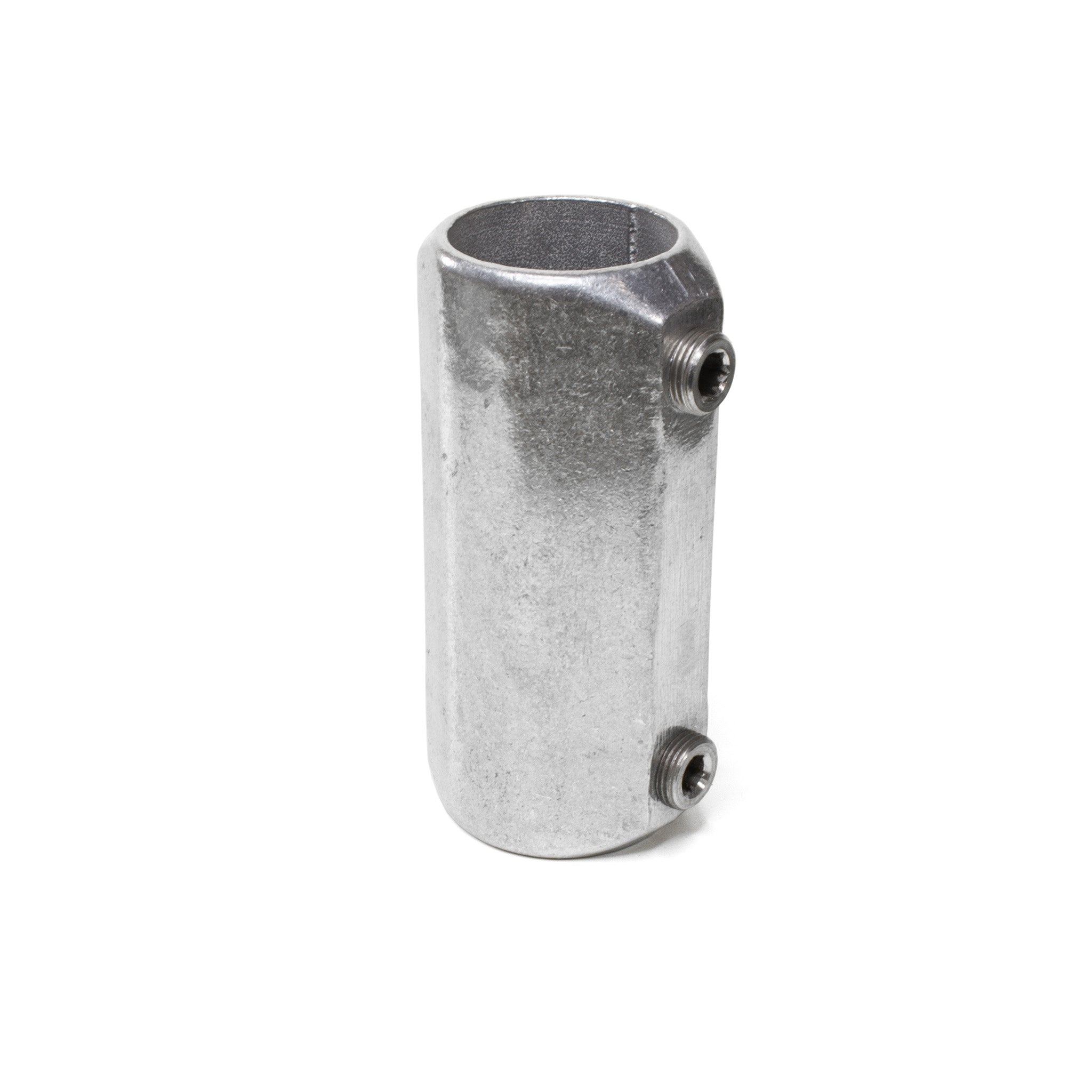

Alloy Fitting Ext Tube Joiner

  • Sale
  • Regular price $57.63
Tax included.


* ALLOY NOT AVAILABLE FOR PICK UP IN MELBOURNE ALL ALLOY SHIPPED FROM SYDNEY

Designed to give an in-line joint between tubes of the same size. Frequently used to enable full tube lengths to be used in railing applications.

This fitting is available for 42.4mm only.

Fitting Size
Tube Size
Tubeclamp Code
Outside Diameter
Imperial
Metric
T 21
21.3mm
½
15NB
A 27
26.9mm
¾
20NB
B 34
33.7mm
1
25NB
C 42
42.4mm
1 ¼
32NB
D 48
48.3mm
1 ½
40NB
E 60
60.3mm
2
50NB

*Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.




Product: LiteClamp® fittings
Material:

Lightweight high strength Aluminium-Magnesium Alloy A535

Set Screw:

Forged internal/external knurled cup point set screw with class 3A threads 6mm with 5mm hex (allen) socket key

Feature: Corrosion Resistance
Permanent shinny surface
Low Maintenance
Tensile Load: Up to 185kg (with FOS 1.5 min)
Testing: Internally by Solid Dynamics Engineering Pty Ltd. Testing videos are available upon request
Applications: Handrails, Shop Fittings, Furnitures and many more.
