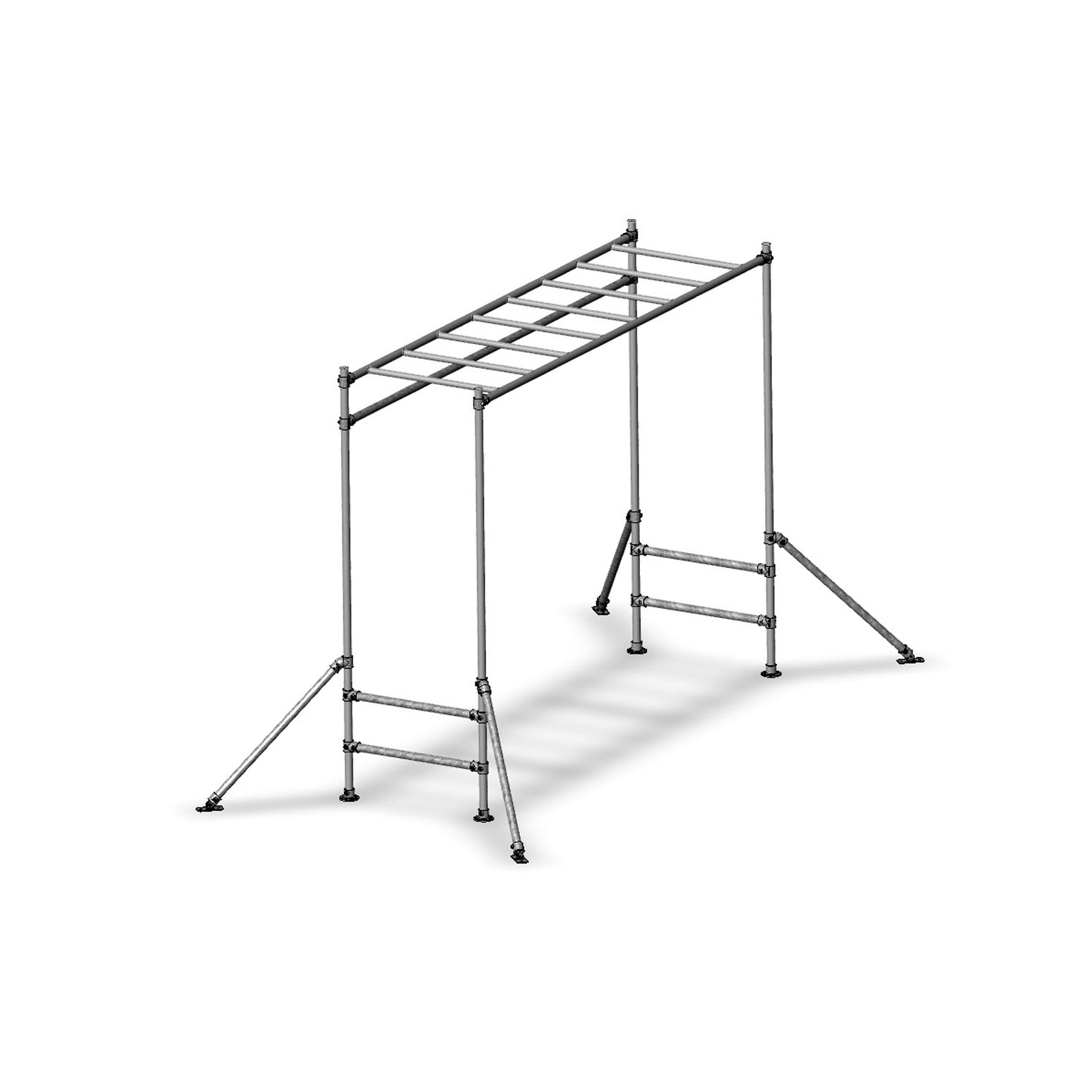

Parkour Playground Madagascar 8011

  • Sale
  • Regular price $1,093.85
Tax included.


The classic! This simple time honored design will keep the little ones occupied for hours on end. Our strong and durable fittings will ensure the structure’s longevity and your children will be swinging like a ninja in no time.

Height adjustable and can take an individual load of 150kg. Weather proof, low maintenance and suitable for modifying in the future.

     - Easy to construct
     - Strong and sturdy
     - Built to last
     - Extendable, add accessories or extend the structure

    Assembled size footprint:

    L: 4470mm x W: 2335mm (approx)

    Main structure dimensions

    L: 2850mm x W: 800mm x H: 2300mm


    LayBuy and ZipPay available (By request only and subject to approval)

    Designed for both indoor and outdoor projects. Featuring our easy slip-on and tighten connection system which only requires a hex key to secure, making it simple to assemble.

    Fitting Size
    Tube Size
    Tubeclamp Code
    Outside Diameter
    Imperial
    Metric
    T 21
    21.3mm
    ½
    15NB
    A 27
    26.9mm
    ¾
    20NB
    B 34
    33.7mm
    1
    25NB
    C 42
    42.4mm
    1 ¼
    32NB
    D 48
    48.3mm
    1 ½
    40NB
    E 60
    60.3mm
    2
    50NB

    *Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.




    Product: TubeClamp® fittings
    Material:

    Fittings cast of malleable cast iron - galvanized finish
    Cast iron fittings or casting to comply with AS 1832 (ISO 5922)
    Hot Dipped Galvanized finish to comply with AS 4680

    Set Screw:

    Cup Point Case hardened setscrew in 45CR Alloy Steel (alternative* Stainless Steel 308)
    Size C42, D48, E60 using 3/8” ISO 228 with 5/16” (8mm) hex key
    Size A27, B34 using ¼” ISO 228 with ¼” (6.5mm) hex key
    Size T21 using 1/8 BSF with 3/16” (5mm) hex key

    Feature: No Welding Slip on Structural Fittings
    Tensile Load: min 5,650 N axial load subjected to 40Nm tightened torque (FOS 2.0 min)
    Testing: Internally by Solid Dynamics Engineering Pty Ltd. Testing videos are available upon request
    Design: Tubeclamp Structural Fittings, when properly installed per manufacturing recommendations, meet or exceed all applicable requirements as specified by Australian Standard
    Applications: Handrails, Trolley Bays, Temporary Structure, Shop Fittings, Furnitures and many more.
