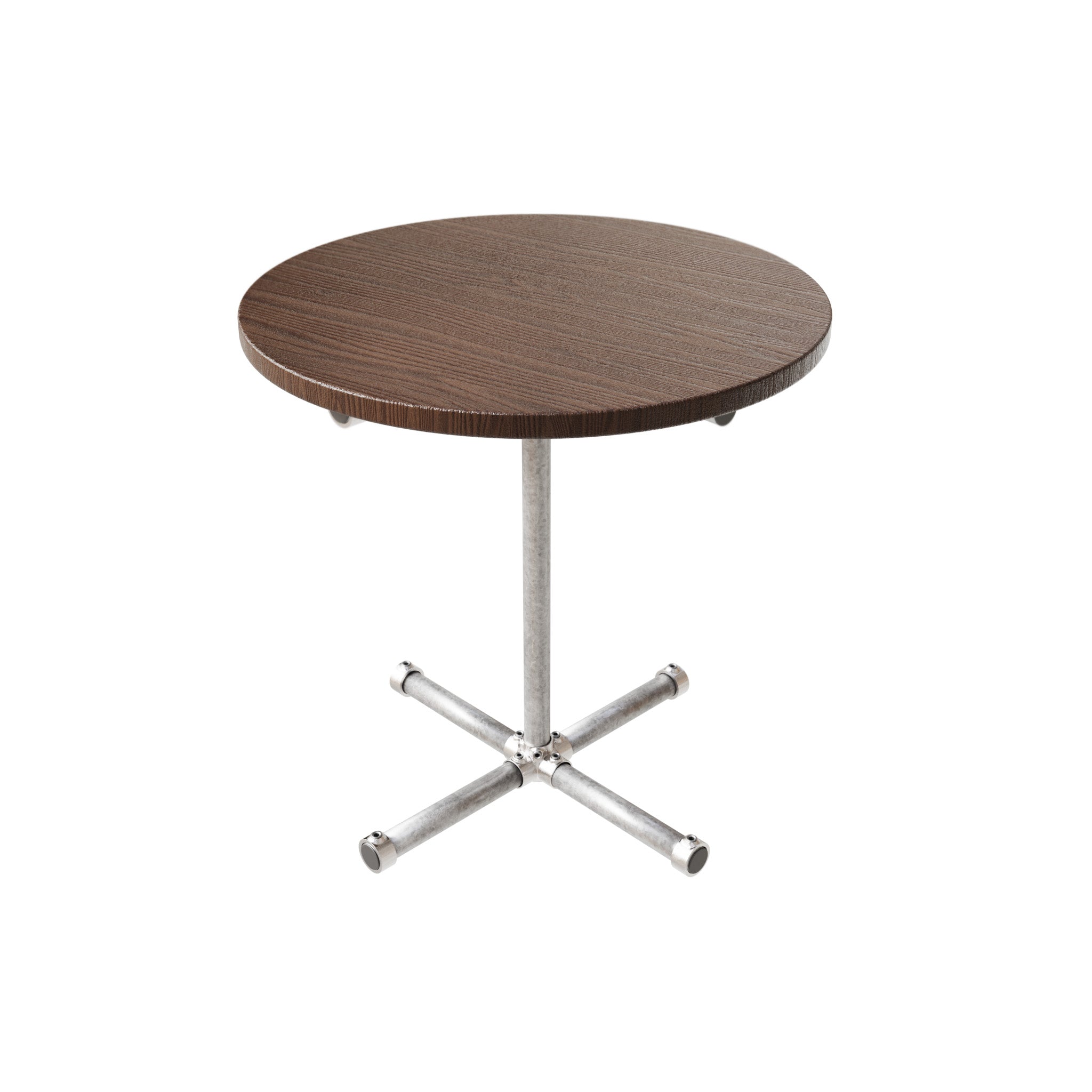

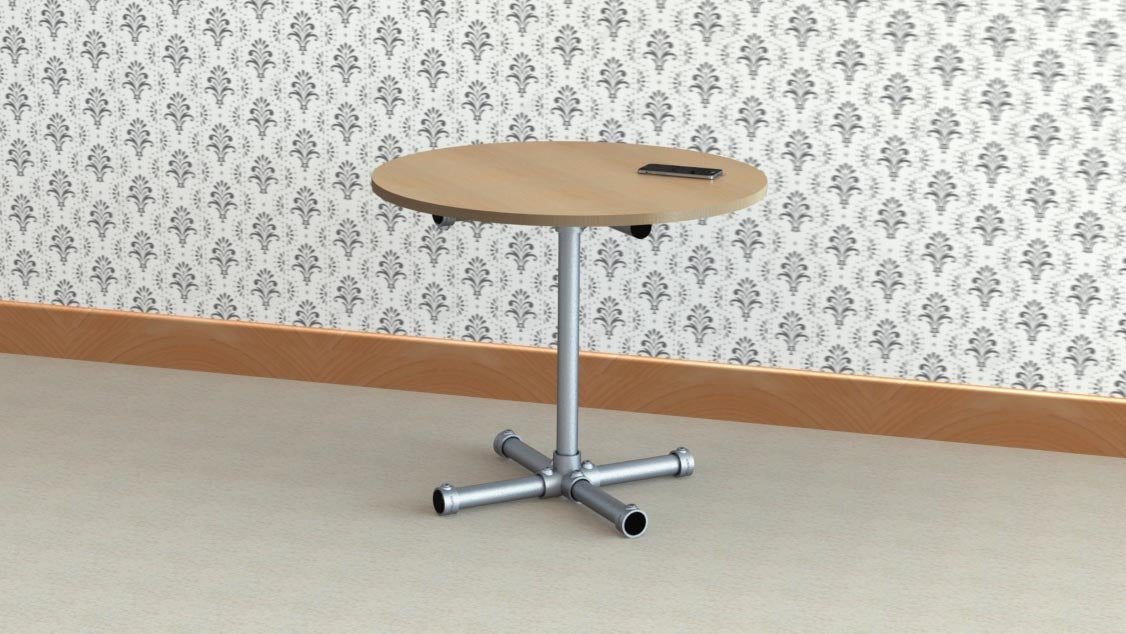

959 - Small Coffee Table

  • Sale
  • Regular price $148.36
Tax included.


This simple and classic coffee table is an everlasting accessory for your business or home design. The strong and secure structure ensures stability for any items placed on the table. Excellent patio or poolside table or placed in your favourite spot for that morning coffee.

The steel is solid, stable, durable and has a classic look. It can be easily assembled within minutes. You can now enjoy every sip of coffee with this extraordinary table as you admire its powder coated colour finish.

-Timber table top not included in this kit

Kit contains:

TC133B End Plastic Cap

TC158B Centre Cross

TC179B Locking Ring

TC199B Single Lug Bracket

620mm Tube

250mm Tube

Assembled size:
L 25cm x W 25cm x H 62cm
25NB/33.7mm Tube Used

Custom Sizes:
If you want to order a custom size, the easiest way is to look at the image on the left with red coloured letters and change the (L, H) to your own dimensions.

After placing the kit in your cart, leave a message in the "Special Instructions to Seller" with your dimensions, or email us. We will get back to you soon with a quote.

Fitting Size
Tube Size
Tubeclamp Code
Outside Diameter
Imperial
Metric
T 21
21.3mm
½
15NB
A 27
26.9mm
¾
20NB
B 34
33.7mm
1
25NB
C 42
42.4mm
1 ¼
32NB
D 48
48.3mm
1 ½
40NB
E 60
60.3mm
2
50NB

*Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.




Product: TubeClamp® fittings
Material:

Fittings cast of malleable cast iron - galvanized finish
Cast iron fittings or casting to comply with AS 1832 (ISO 5922)
Hot Dipped Galvanized finish to comply with AS 4680

Set Screw:

Cup Point Case hardened setscrew in 45CR Alloy Steel (alternative* Stainless Steel 308)
Size C42, D48, E60 using 3/8” ISO 228 with 5/16” (8mm) hex key
Size A27, B34 using ¼” ISO 228 with ¼” (6.5mm) hex key
Size T21 using 1/8 BSF with 3/16” (5mm) hex key

Feature: No Welding Slip on Structural Fittings
Tensile Load: min 5,650 N axial load subjected to 40Nm tightened torque (FOS 2.0 min)
Testing: Internally by Solid Dynamics Engineering Pty Ltd. Testing videos are available upon request
Design: Tubeclamp Structural Fittings, when properly installed per manufacturing recommendations, meet or exceed all applicable requirements as specified by Australian Standard
Applications: Handrails, Trolley Bays, Temporary Structure, Shop Fittings, Furnitures and many more.
