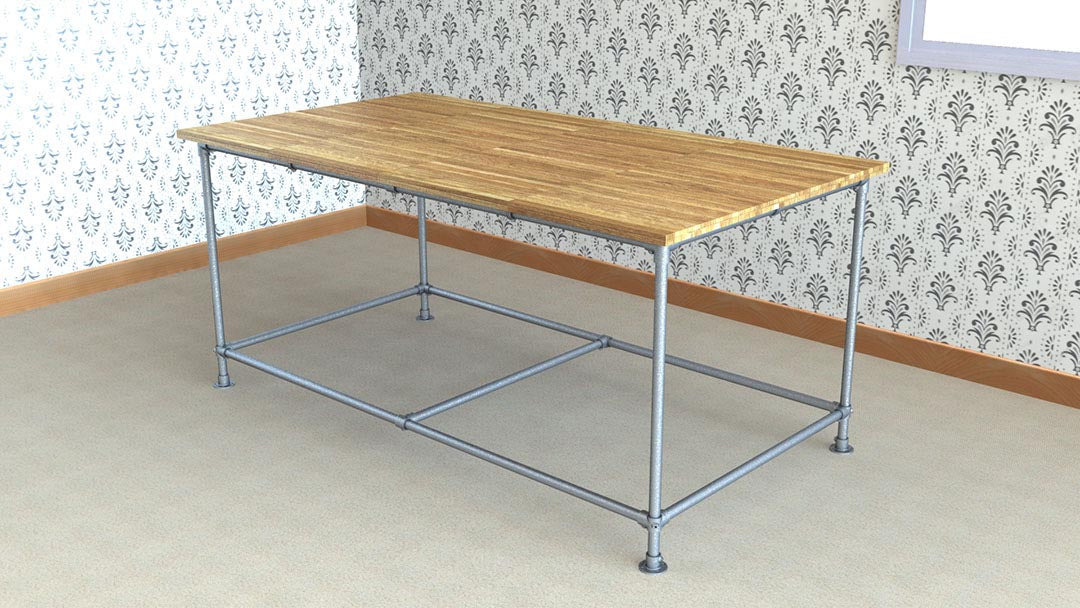

950 - Large Work Bench

  • Sale
  • PLEASE CALL FOR PRICING Regular price
Tax included.


Specially designed and built for warehouse use, schools and retail shops. This solid and robust table is great for displaying products in store or storing items out of the way. The TC950 can also be very handy at home or in a workshop where the lower area can be utilized for extra storage. A strong and sturdy addition to your workspace.

- Timber panels not included in this kit

Kit contains:

TC199B Single Lug Bracket

TC116B Corner Middle Cross

TC128B Corner Top Cross

TC101B Short Tee

TC131B Wall Round Flange

2100mm Tube

1050mm Tube

950mm Tube

Assembled size:
L 420cm x W 105cm x H 95cm
Tube size: B 25NB/33.7mm

Custom Sizes:
If you want to order a custom size, the easiest way is to look at the image on the left with red coloured letters and change the (L, H, W) to your own dimensions.

After placing the kit in your cart, leave a message in the "Special Instructions to Seller" with your dimensions, or email us. We will get back to you soon with a quote.

Fitting Size
Tube Size
Tubeclamp Code
Outside Diameter
Imperial
Metric
T 21
21.3mm
½
15NB
A 27
26.9mm
¾
20NB
B 34
33.7mm
1
25NB
C 42
42.4mm
1 ¼
32NB
D 48
48.3mm
1 ½
40NB
E 60
60.3mm
2
50NB

*Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.




Product: TubeClamp® fittings
Material:

Fittings cast of malleable cast iron - galvanized finish
Cast iron fittings or casting to comply with AS 1832 (ISO 5922)
Hot Dipped Galvanized finish to comply with AS 4680

Set Screw:

Cup Point Case hardened setscrew in 45CR Alloy Steel (alternative* Stainless Steel 308)
Size C42, D48, E60 using 3/8” ISO 228 with 5/16” (8mm) hex key
Size A27, B34 using ¼” ISO 228 with ¼” (6.5mm) hex key
Size T21 using 1/8 BSF with 3/16” (5mm) hex key

Feature: No Welding Slip on Structural Fittings
Tensile Load: min 5,650 N axial load subjected to 40Nm tightened torque (FOS 2.0 min)
Testing: Internally by Solid Dynamics Engineering Pty Ltd. Testing videos are available upon request
Design: Tubeclamp Structural Fittings, when properly installed per manufacturing recommendations, meet or exceed all applicable requirements as specified by Australian Standard
Applications: Handrails, Trolley Bays, Temporary Structure, Shop Fittings, Furnitures and many more.
