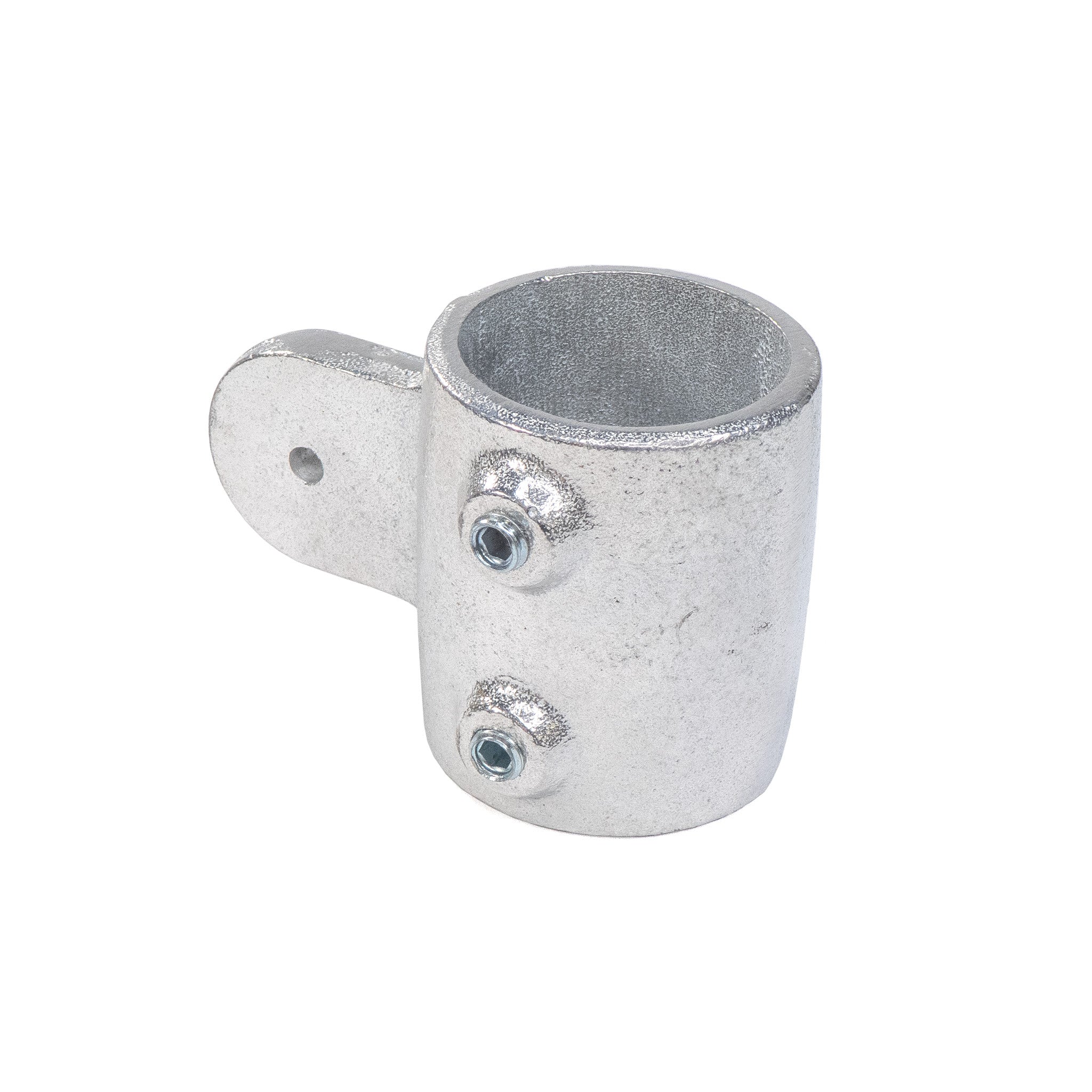

Name: Aluminium 173M - Swivel Long Tee Male Pipe Fitting
Brand: Tubeclamp AU
SKU: LC173M B34L
Price: 14.30 AUD
Availability: InStock

Variations in appearance may occur due to different manufacturers and batches, but functionality remains consistent across all products.

Swipe for additional images.

Aluminium 173M - Swivel Long Tee Male Pipe Fitting

14.30

Size

B34 (32mm Alloy Pipe) C42 (40mm Alloy Pipe) D48 (48mm Alloy Pipe)

PAYMENT METHODS ACCEPTED

Details

The LC173M Long Tee fitting joins onto a tube and is often used as a component within the LC173 Swivel Combination. However this fitting can also be used as a stand alone piece to mount signs and shelving.

Designed for both indoor and outdoor projects, it features our easy slip-on and tighten connection system which only requires a hex key to secure.

The LC173M is an aluminium alternative to the galvanised steel TC173 Swivel Combination.

Common Usage

The LC173M fitting is commonly used within pipe structures, railings, furniture and for mounting signage (or other flat, lightweight solid surfaces).

Technical Information

Material:
Lightweight high strength Aluminium-Magnesium Alloy A535

Set Screw:
Forged internal/external knurled cup point set screw with class 3A threads 6mm with 5mm hex (allen) socket key

Feature:

Corrosion Resistance

Permanent shinny surface

Low Maintenance

Tensile Load:
Up to 185kg (with FOS 1.5 min)

Testing:
Tested internally by Solid Dynamics Engineering Pty Ltd. Testing videos are available upon request.

Application:
Handrails, Trolley Bays, Temporary Structure, Shop Fittings, Furnitures and many more.

Size Guide

Fitting Size

Tube Size

Tubeclamp Code

Outside Diameter

Imperial

Metric

T21	21.3mm / 0.84"	1/2	15NB
A27	26.9mm / 1.05"	3/4	20NB
B34	33.7mm / 1.315"	1	25NB
C42	42.4mm / 1.66"	1 1/4	32NB
D48	48.3mm / 1.9"	1 1/2	40NB
E60	60.3mm / 2.375"	2	50NB

*Figures given as guidance only, dimensions and weights are subject to manufacturing tolerances and may be altered without prior notice.

Australia Wide Shipping

You can choose between picking up your order from the store or getting it delivered to your doorstep anywhere in Australia. If you place your order before 10am from Monday to Friday, we'll make sure to dispatch it on the same day. For orders placed after this time or on public holidays, we'll dispatch them on the next working day.

Our Return Policy

Tubeclamp allows customers to return unused products in good condition within 5 days of purchase. However, please note that there may be a handling/restocking fee of up to twenty (20%) of the invoice value for returns. Alternatively, Tubeclamp also offers the option to exchange returned items for products of similar value. Please keep in mind that certain items, such as cut bars or altered/modified products, may not be eligible for return.

For further information, please feel free to contact us directly.

LITECLAMP ALUMINIUM FITTINGS

NO WELD, LIGHTWEIGHT, CORROSION RESISTANT TUBE FITTINGS

Frequently Asked Questions

Which fitting size do i chose?

We offer fittings in six different sizes according to Australian standard pipe sizes, ranging from 21mm to 60mm. To select the right fitting, simply measure the outside diameter (OD) of your pipe and choose the corresponding fitting size.

For example, if your pipe has a 48mm outside diameter, you would select the D48 fitting size.

Metric or Imperial?

You'll see a table that compares various international measurements in the 'Size Guide' section below the product details at the top of this page.

Why is the fitting bigger then my tube?

Our fittings are intentionally made slightly larger than the pipes they correspond to, so that they can easily slide onto both straight and bent bars. If you're worried that the gap might be too big, you can try replacing the grubscrews/setscrews with longer ones.

What are your fittings made from?

Our Liteclamp range is made from a high strength Aluminium-Magnesum Alloy. Alternatively if you need a a stronger, less costly option you can try our Tubeclamp galvanised steel fittings.

Where can i find size specifications for each fitting?

You can easily locate size diagrams for most fittings in the example images provided for each product. These diagrams provide approximate measurements for each fitting size.
