Alloy Fitting Base Flange

  • Sale
  • Regular price $68.74
Tax included.


* ALLOY NOT AVAILABLE FOR PICK UP IN MELBOURNE ALL ALLOY SHIPPED FROM SYDNEY

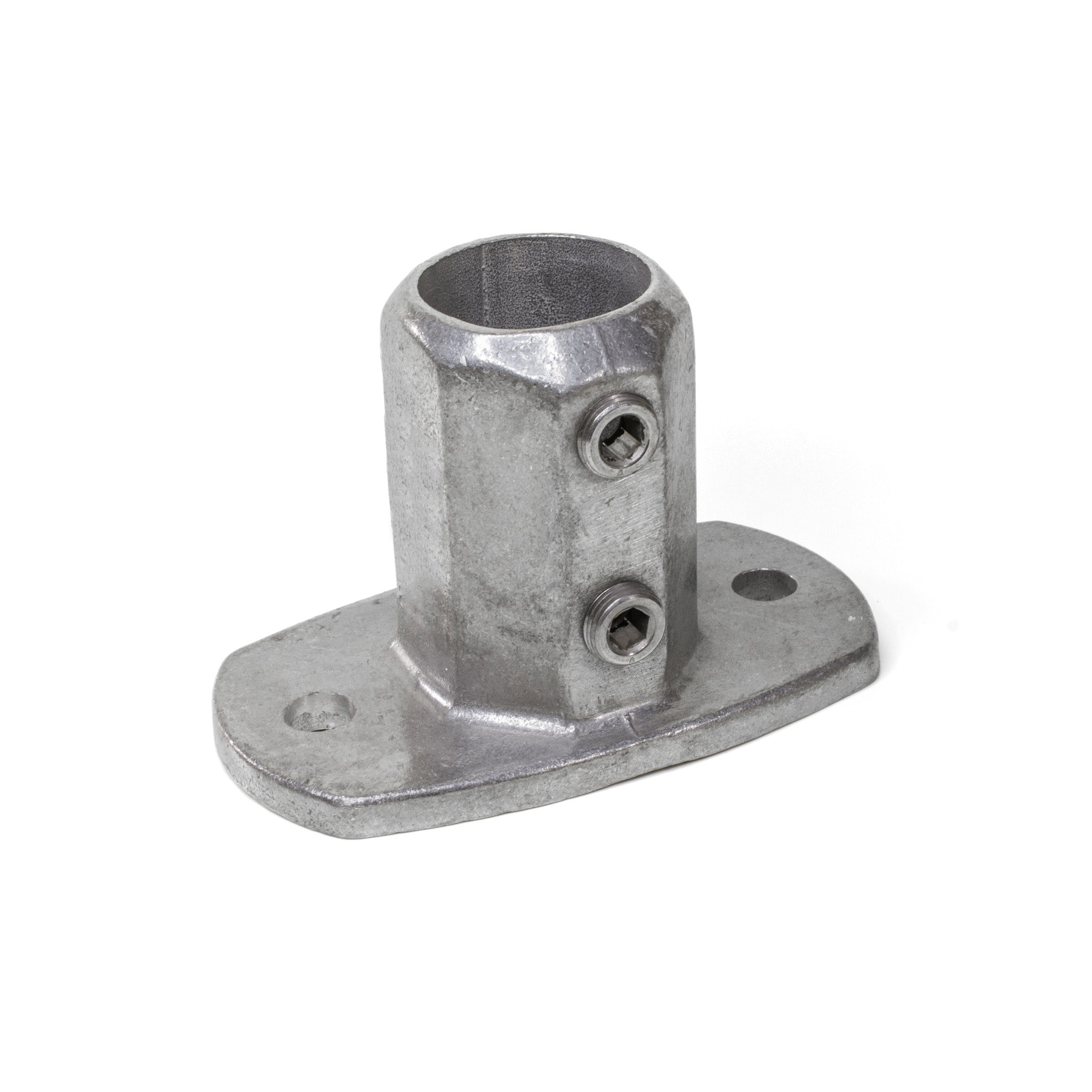

This flange should always be used to fix down guardrail and balustrades. Holes are of sufficient diameter to give a good fixing with either a mechanical or chemical anchor. Two set screws in the vertical socket give greater stability to the upright. It is recommended that the fixing holes in the flange be in-line with the applied load. The tube is able to pass through the base of the fitting.

This fitting is available for 42.4mm & 48.3mm only.

Fitting Size
Tube Size
Tubeclamp Code
Outside Diameter
Imperial
Metric
T 21
21.3mm
½
15NB
A 27
26.9mm
¾
20NB
B 34
33.7mm
1
25NB
C 42
42.4mm
1 ¼
32NB
D 48
48.3mm
1 ½
40NB
E 60
60.3mm
2
50NB

*Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.




Product: LiteClamp® fittings
Material:

Lightweight high strength Aluminium-Magnesium Alloy A535

Set Screw:

Forged internal/external knurled cup point set screw with class 3A threads 6mm with 5mm hex (allen) socket key

Feature: Corrosion Resistance
Permanent shinny surface
Low Maintenance
Tensile Load: Up to 185kg (with FOS 1.5 min)
Testing: Internally by Solid Dynamics Engineering Pty Ltd. Testing videos are available upon request
Applications: Handrails, Shop Fittings, Furnitures and many more.
