TC Aluminium 169 - Double Swivel Combination Pipe Fitting TubeClamp Fitting by Solid Dynamics Australia





Fitting Size
Tube Size
Tubeclamp Code
Outside Diameter
Imperial
Metric
T 21
21.3mm
½
15NB
A 27
26.9mm
¾
20NB
B 34
33.7mm
1
25NB
C 42
42.4mm
1 ¼
32NB
D 48
48.3mm
1 ½
40NB
E 60
60.3mm
2
50NB

*Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.




Product: LiteClamp® fittings
Material:

Lightweight high strength Aluminium-Magnesium Alloy A535

Set Screw:

Forged internal/external knurled cup point set screw with class 3A threads 6mm with 5mm hex (allen) socket key

Feature: Corrosion Resistance
Permanent shinny surface
Low Maintenance
Tensile Load: Up to 185kg (with FOS 1.5 min)
Testing: Internally by Solid Dynamics Engineering Pty Ltd. Testing videos are available upon request
Applications: Handrails, Shop Fittings, Furnitures and many more.
TC Aluminium 169 - Double Swivel Combination Pipe Fitting TubeClamp Fitting by Solid Dynamics Australia





Fitting Size
Tube Size
Tubeclamp Code
Outside Diameter
Imperial
Metric
T 21
21.3mm
½
15NB
A 27
26.9mm
¾
20NB
B 34
33.7mm
1
25NB
C 42
42.4mm
1 ¼
32NB
D 48
48.3mm
1 ½
40NB
E 60
60.3mm
2
50NB

*Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.




Product: LiteClamp® fittings
Material:

Lightweight high strength Aluminium-Magnesium Alloy A535

Set Screw:

Forged internal/external knurled cup point set screw with class 3A threads 6mm with 5mm hex (allen) socket key

Feature: Corrosion Resistance
Permanent shinny surface
Low Maintenance
Tensile Load: Up to 185kg (with FOS 1.5 min)
Testing: Internally by Solid Dynamics Engineering Pty Ltd. Testing videos are available upon request
Applications: Handrails, Shop Fittings, Furnitures and many more.

Aluminium 169 - Double Swivel Combination Pipe Fitting

  • Sale
  • Regular price $25.00
Tax included.

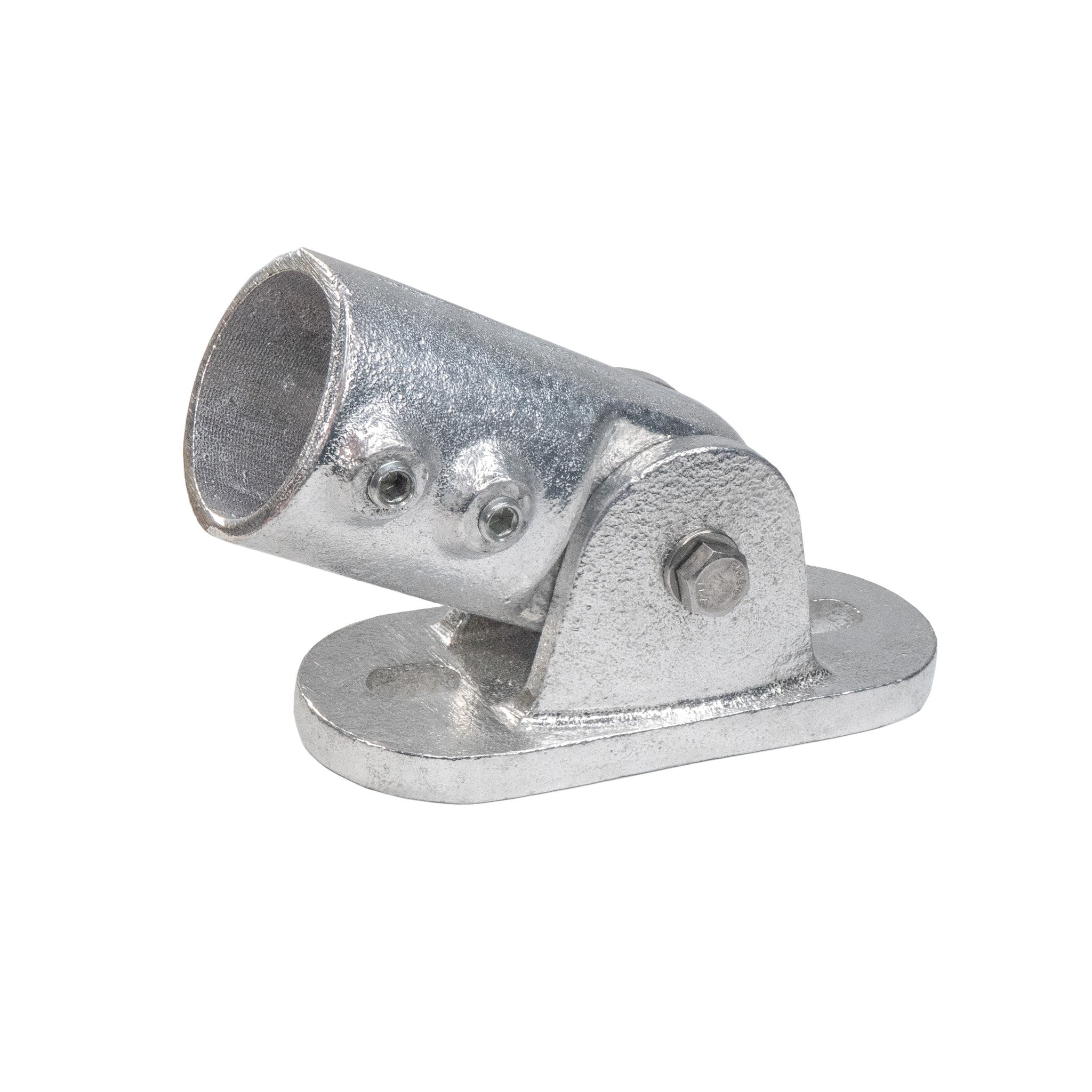

This fitting connects one end piece onto a flat solid surface such as a wall. The pivoting range of the fitting is 170 degrees measured from the wall. Two mounting points are used to secure the fitting into place.

Designed for both indoor and outdoor projects, it features our easy slip-on and tighten connection system which only requires a hex key to secure.
