Name: Aluminium 166 - Variable Swivel Elbow Pipe Fitting
Brand: Tubeclamp AU
SKU: LC166 C42
Price: 60.80 AUD
Availability: InStock

Aluminium 166 - Variable Swivel Elbow Pipe Fitting

Adjustable swivel elbow fitting for tubes. 72–290° range. Slip-on connection with hex key tightening. Aluminium construction for indoor/outdoor use.

Product appearance and finishes may differ by manufacturer and batch. Uniform finishes cannot be guaranteed.

60.80

Aluminium 166 - Variable Swivel Elbow Pipe Fitting

60.80

Adjustable swivel elbow fitting for tubes. 72–290° range. Slip-on connection with hex key tightening. Aluminium construction for indoor/outdoor use.

Size

C42 (40mm Alloy Pipe) D48 (48mm Alloy Pipe)

OD = Outside Diameter | NB = Nominal Bore (hollow core of the tube)*
* May vary based on wall thickness

PAYMENT METHODS ACCEPTED

Details

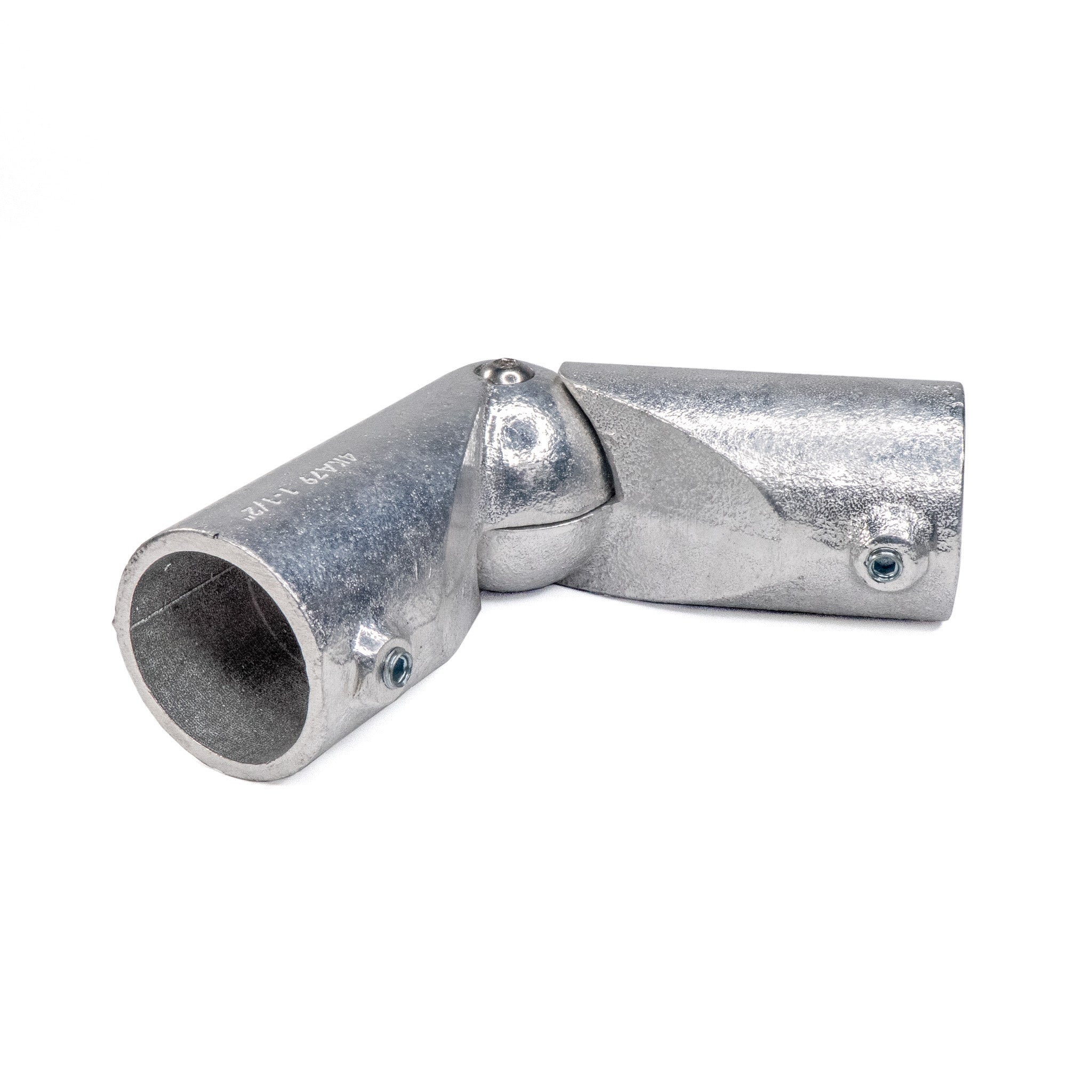

The LC166 Variable Swivel Elbow fitting joins two tubes together within an adjustable swivel angle. This fitting has a range angle motion of between 72 to 290 degrees.

Designed for both indoor and outdoor projects, it features our easy slip-on and tighten connection system which only requires a hex key to secure.

The LC166 is an aluminium alternative to the galvanised steel TC166 Variable Swivel Elbow (TC125H)

Common Usage

The LC166 fitting can often be used within pipe structures, railings, racks and furniture.

Technical Information

Material:

Lightweight high strength Aluminium-Magnesium Alloy A535.

Set Screw:

Forged internal/external knurled cup point set screw with class 3A threads 6mm with 5mm hex (allen) socket key.

Feature:

Corrosion Resistance.

Permanent shinny surface.

Low Maintenance.

Tensile Load:

Up to 185kg (with FOS 1.5 min).

Testing:

Tested internally by Solid Dynamics Engineering Pty Ltd. Testing videos are available upon request.

Application:

Handrails, Trolley Bays, Temporary Structure, Shop Fittings, Furnitures and many more.

Size Guide

Please note that not all sizes are available for every product.

Tube Size Reference Chart

Fitting Size Code

Outside Diameter

NB (Metric)

NB (Imperial)

T21	21.3mm	15	1/2"
A27	26.9mm	20	3/4"
B34	33.7mm	25	1"
C42	42.4mm	32	1 1/4"
D48	48.3mm	40	1 1/2"
E60	60.3mm	50	2"
SHS25	25 x 25mm	N/A	N/A
SHS40	40 x 40mm	N/A	N/A
G50	50mm (Alu)	N/A	N/A

*Figures given as guidance only, dimensions and weights are subject to manufacturing tolerances and may be altered without prior notice.

Product FAQ

Which fitting size do I chose?

We offer fittings in various sizes that meet Australian standards, ranging from 21mm to 60mm.

To select the right fitting, measure the outside diameter (OD) of your pipe and choose the corresponding size. For example, a pipe with a 48mm OD requires a D48 fitting.

We also provide fittings for 50mm aluminium tubes and 25 x 25 or 40 x 40mm square hollow section steel bar.

Metric or Imperial?

You'll see a table that compares various international measurements in the 'Size Guide' section above.

Why is the fitting bigger then my tube?

Our fittings are intentionally made slightly larger than the pipes they correspond to, so that they can easily slide onto both straight and bent bars. If you're worried that the gap might be too big, you can try replacing the grubscrews/setscrews with longer ones.

What are your fittings made from?

Our Liteclamp range is made from a high strength Aluminium-Magnesum Alloy. Alternatively if you need a a stronger, less costly option you can try our Tubeclamp galvanised steel fittings.

Where can i find size specifications for each fitting?

You can easily locate size diagrams for most fittings in the example images provided for each product. These diagrams provide approximate measurements for each fitting size.

Installation Guide

Basic Install Guide for Tubeclamp Fittings

Australia Wide Shipping

You can choose to pick up your order from one of our stores or have it delivered anywhere in Australia. Orders placed before 10 AM on weekdays ship the same day; those after 10 AM or on public holidays will be sent the next business day.

Our Return Policy

Tubeclamp allows returns of unused items in good condition within 5 days of purchase, but a handling or restocking fee of up to 20% may apply. Customers can exchange returned items for similar value products, though some items like cut bars or modified products may not be returnable.

Skip welding and bending.

Tubeclamp fittings features our easy slip-on and tighten connection system which only requires an allen key, or hexbit to secure.This means you can avoid the hassle of welding or the high costs (and trial and error) of tube bending.

Black painted tube fittings and bar with clothes on display and hanging from racks.

A completely modular system.

Tubeclamp fittings are fully modular and can be used in countless ways, including for handrails, guardrails, furniture, shelving, trolleys, carts, scaffolding, fencing, shade cloth systems, garden enclosures, and so much more.

Additionally, since they don't need welding for installation, you can easily take apart or uninstall your setup to repurpose the fittings for another project.

Built to last and engineered for strength.

Tubeclamp fittings are forged for durability and will last for years even when exposed to the elements. In addition, being forged from lightweight-high strength Aluminium-Magnesium Alloy A535, our fittings are designed and tested in-house to support weights of upwards of 180kg.

Tubeclamp fittings comply with Australian Standards AS 1832 (ISO 5922), and AS 4680.

Aluminium tube fittings and a blue background

Yellow painted handrail in from of Tubeclamp branded truck

Charmingly Stylish.

Tubeclamp Aluminium fittings and tubes have a simple yet attractive look. When you buy Tubeclamp aluminium fittings or tubes, they come with a aluminium-alloy finish.

However, to cater to a range of modern and traditional styles, we offer the option of sticking with the classic look or paying a bit extra to have your order powdercoated in a variety of contemporary colors of your choice.Choose from any colour from the Dulux Powder Coating range.
