Aluminium 116 - Corner Middle Cross (90deg Side Outlet Tee) Pipe Fitting

$
18.00

$
Size
B34 (32mm Alloy Pipe)
C42 (40mm Alloy Pipe)
D48 (48mm Alloy Pipe)
PAYMENT METHODS ACCEPTED
Details
expand_less
expand_more

Product Description

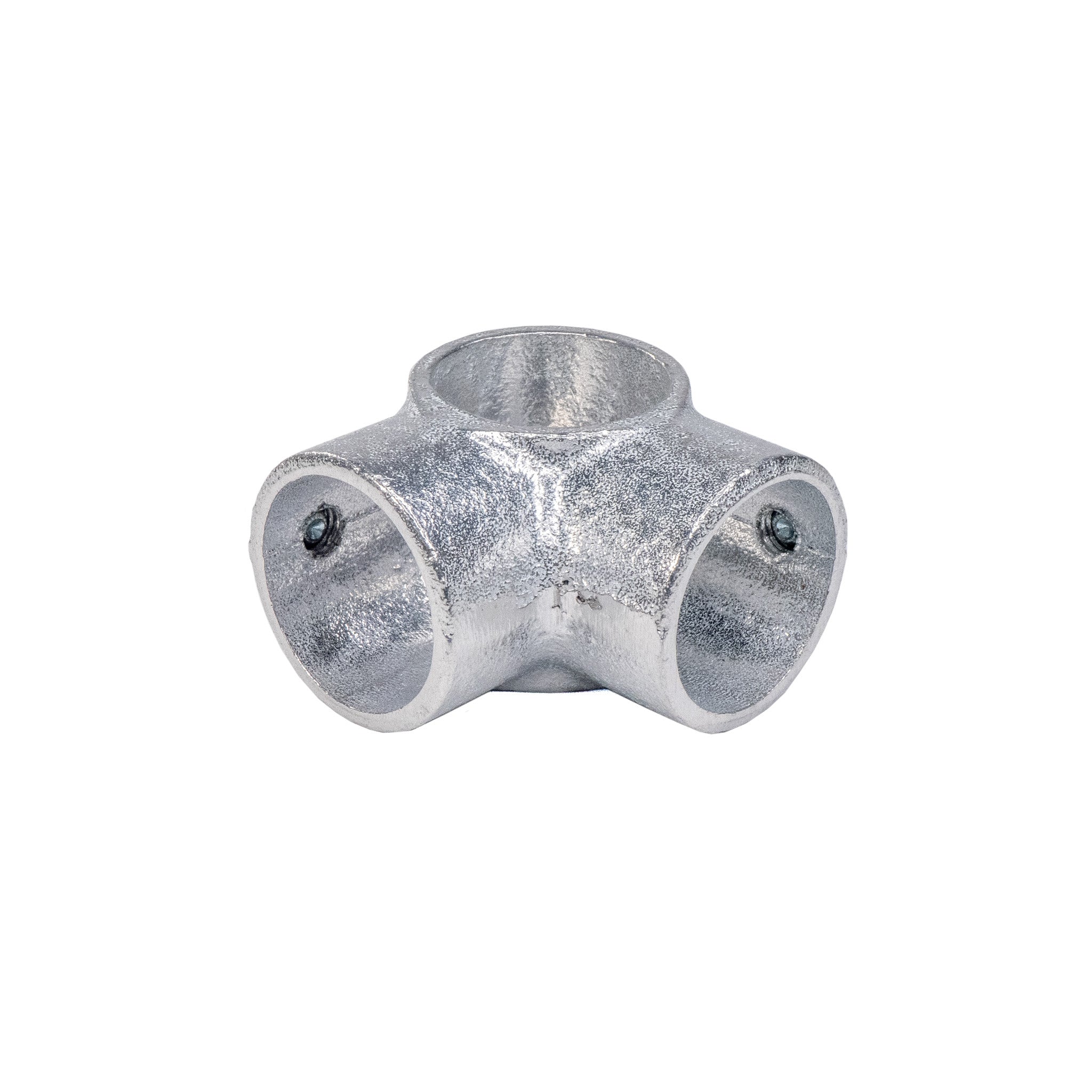

The aluminium LC116 Corner Middle Cross fitting joins three tubes together to make a corner structure. Each tube is attached at a 90-degree angle from the other tubes.

Designed for both indoor and outdoor projects, it features our easy slip-on and tightens connection system which only requires a hex key to secure.

It can be used in pipe structures, railings, racks and furniture.

The LC116 is an aluminium alternative to the galvanised steel TC116 Corner Middle Cross.

Common Usage

We commonly see this fitting used in railing applications.  It can be used on the top of uprights to support the railing, and at the end of sections to terminate the mid-rails.

It is used to build just about any rectangular structure, such as desks, bed frames, and racking structures.

Technical Information
expand_less
expand_more
Material:
Lightweight high strength Aluminium-Magnesium Alloy A535


Set Screw:
Forged internal/external knurled cup point set screw with class 3A threads 6mm with 5mm hex (allen) socket key

Feature:

Corrosion Resistance

Permanent shinny surface

Low Maintenance


Tensile Load:
Up to 185kg (with FOS 1.5 min)

Testing:
Tested internally by Solid Dynamics Engineering Pty Ltd. Testing videos are available upon request.

Application:
Handrails, Trolley Bays, Temporary Structure, Shop Fittings, Furnitures and many more.
Size Guide
expand_less
expand_more

Fitting Size

Tube Size

Tubeclamp Code

Outside Diameter

Imperial

Metric

T21
21.3mm / 0.84"
1/2
15NB
A27
26.9mm / 1.05"
3/4
20NB
B34
33.7mm / 1.315"
1
25NB
C42
42.4mm / 1.66"
1 1/4
32NB
D48
48.3mm / 1.9"
1 1/2
40NB
E60
60.3mm / 2.375"
2
50NB

*Figures given as guidance only, dimensions and weights are subject to manufacturing tolerances and may be altered without prior notice.
