930 - Wall Mounted Shelf

  • Sale
  • $427.73
Tax included.

A shelving solution which is practical, functional, and stylish. This wall mounted shelving system can be custom made to your own specifications. It is easy to assemble, featuring our easy slip-on and tighten connection system which only requires a hex key to secure, making it perfect for DIY builders.

Great for home or retail shelving & storage.

Email us for a new size quotation, please include any necessary dimensions and how many vertical tubes you want. Also include the amount of shelves you want your unit to have.

- Please fasten the structure to your wall and floor before use

- Timber panels are not included

Kit contains:

TC131B Wall Round Flange

TC133B End Cap Plastic

TC179B Locking Ring

TC125B Standard Elbow

TC101B Short Tee

TC199B Single Lug Bracket

2400mm Tube

800mm Tube

700mm Tube

250mm Tube

Assembled size:
L80cm x W 95cm x H 240cm
Tube size: B 25NB/33.7mm

Custom Sizes:

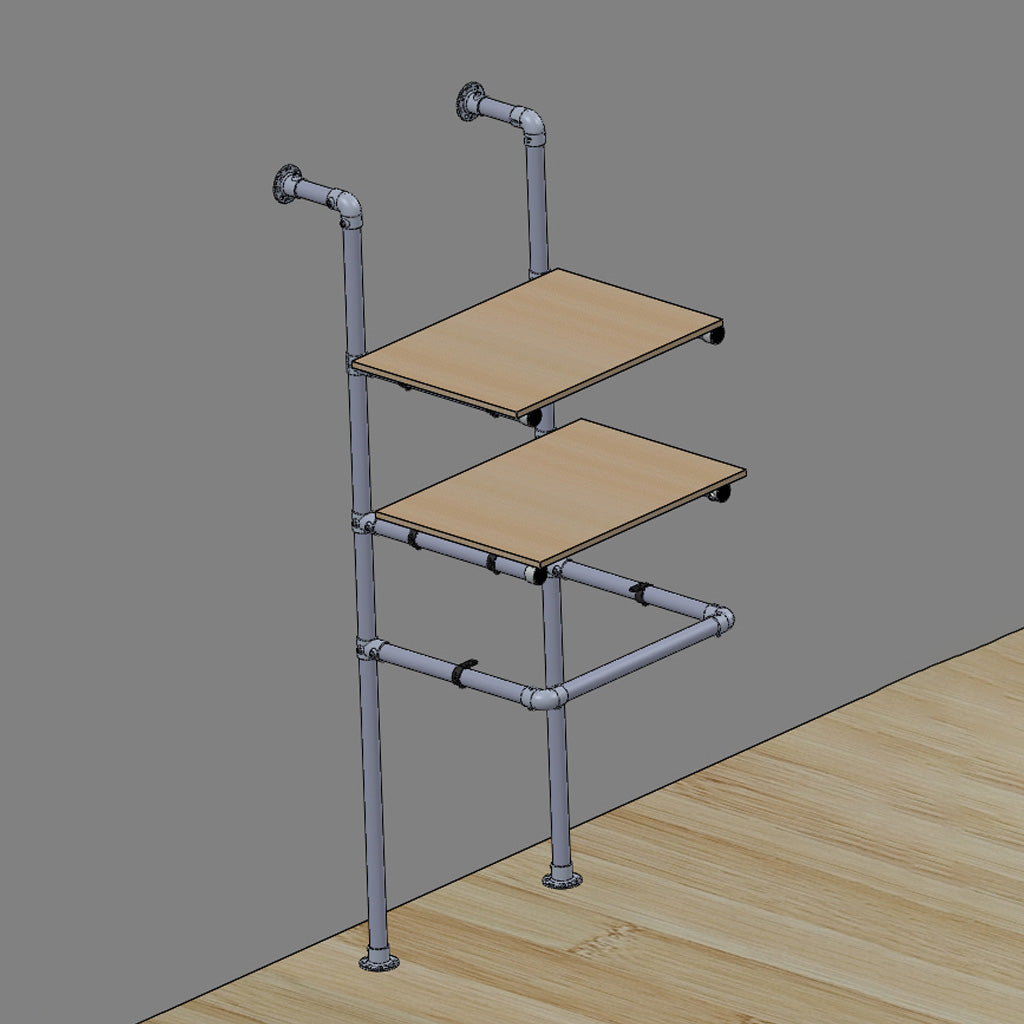

If you want to order a custom size, the easiest way is to look at the image on the left with red coloured letters and change the (L, H, W, etc) to your own dimensions.

After placing the kit in your cart, leave a message in the "Special Instructions to Seller" with your dimensions, or email us. We will get back to you soon with a quote.

Fitting Size
Tube Size
Tubeclamp Code
Outside Diameter
Imperial
Metric
T 21
21.3mm
½
15NB
A 27
26.9mm
¾
20NB
B 34
33.7mm
1
25NB
C 42
42.4mm
1 ¼
32NB
D 48
48.3mm
1 ½
40NB
E 60
60.3mm
2
50NB

*Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.




Product: TubeClamp® fittings
Material:

Fittings cast of malleable cast iron - galvanized finish
Cast iron fittings or casting to comply with AS 1832 (ISO 5922)
Hot Dipped Galvanized finish to comply with AS 4680
Set Screw:

Cup Point Case hardened setscrew in 45CR Alloy Steel (alternative* Stainless Steel 308)
Size C42, D48, E60 using 3/8” ISO 228 with 5/16” (8mm) hex key
Size A27, B34 using ¼” ISO 228 with ¼” (6.5mm) hex key
Size T21 using 1/8 BSF with 3/16” (5mm) hex key
Feature: No Welding Slip on Structural Fittings
Tensile Load: min 5,650 N axial load subjected to 40Nm tightened torque (FOS 2.0 min)
Testing: Internally by Solid Dynamics Engineering Pty Ltd. Testing videos are available upon request
Design: Tubeclamp Structural Fittings, when properly installed per manufacturing recommendations, meet or exceed all applicable requirements as specified by Australian Standard
Applications: Handrails, Trolley Bays, Temporary Structure, Shop Fittings, Furnitures and many more.
