K 522 - Outdoor Shelter "Greenhouse" (Frame Only)

  • Sale
  • PLEASE CALL FOR PRICING Regular price
Tax included.


A basic shelter structure which can be assembled quickly and easily on-site.

This simple shelter is perfect for your backyard. Easy to install with no maintenance or upkeep required.

Easy to assemble, it features our easy slip-on and tighten connection system which only requires a hex key to secure.

Kit contains:

TC191 Ridge Tee

TC185 Eaves Tee

TC133 End Cap Plastic

TC176D Middle Cross

TC177D Side Cross

TC232D Base Flange

TC149D External Joiner

2255mm Tube

2000mm Tube

1333mm Tube

1000mm Tube

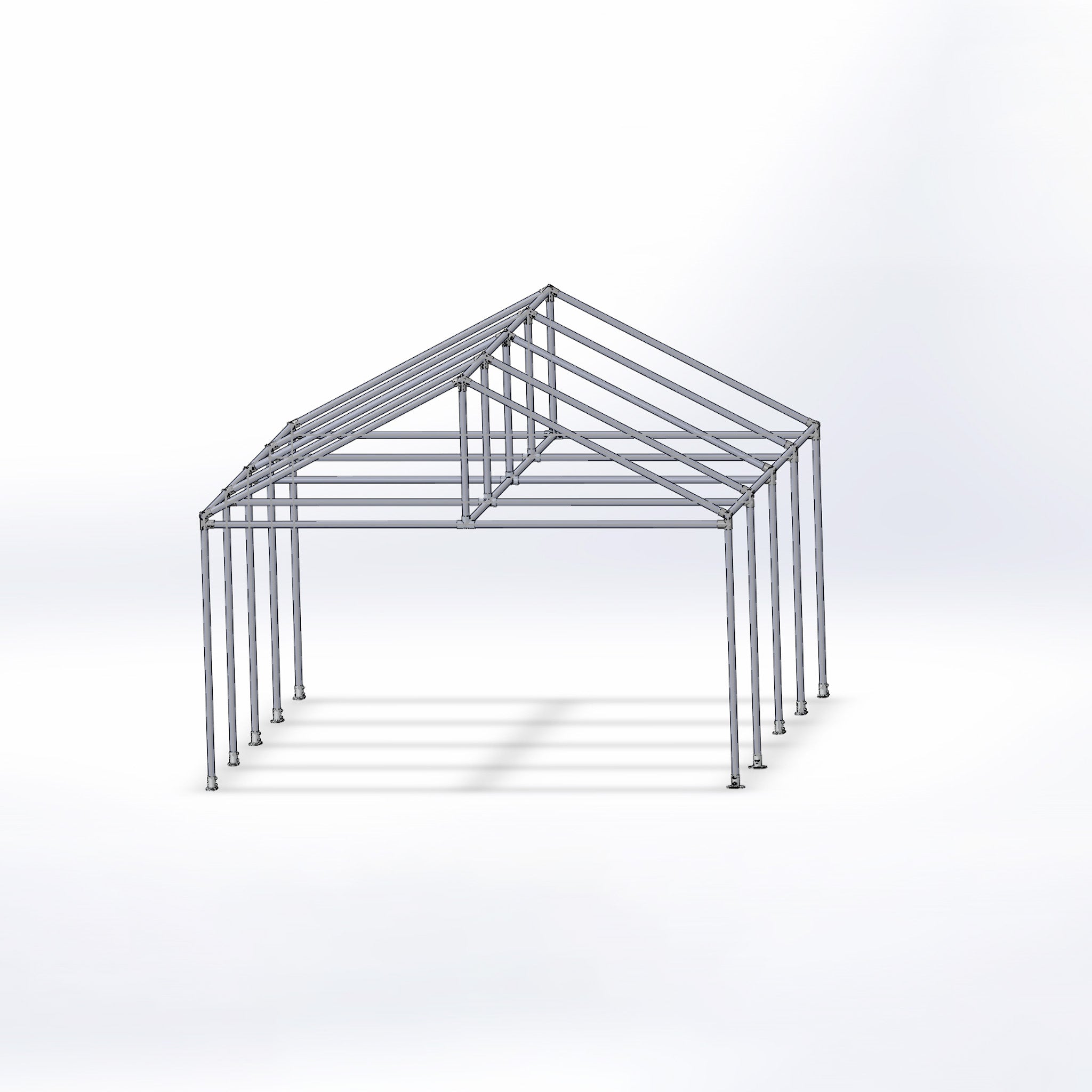

 Assembled size: 4m x 4m x 3m (L x W x H)

Tube size: D 40NB, 48.3mm

Fitting Size
Tube Size
Tubeclamp Code
Outside Diameter
Imperial
Metric
T 21
21.3mm
½
15NB
A 27
26.9mm
¾
20NB
B 34
33.7mm
1
25NB
C 42
42.4mm
1 ¼
32NB
D 48
48.3mm
1 ½
40NB
E 60
60.3mm
2
50NB

*Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.




Product: TubeClamp® fittings
Material:

Fittings cast of malleable cast iron - galvanized finish
Cast iron fittings or casting to comply with AS 1832 (ISO 5922)
Hot Dipped Galvanized finish to comply with AS 4680

Set Screw:

Cup Point Case hardened setscrew in 45CR Alloy Steel (alternative* Stainless Steel 308)
Size C42, D48, E60 using 3/8” ISO 228 with 5/16” (8mm) hex key
Size A27, B34 using ¼” ISO 228 with ¼” (6.5mm) hex key
Size T21 using 1/8 BSF with 3/16” (5mm) hex key

Feature: No Welding Slip on Structural Fittings
Tensile Load: min 5,650 N axial load subjected to 40Nm tightened torque (FOS 2.0 min)
Testing: Internally by Solid Dynamics Engineering Pty Ltd. Testing videos are available upon request
Design: Tubeclamp Structural Fittings, when properly installed per manufacturing recommendations, meet or exceed all applicable requirements as specified by Australian Standard
Applications: Handrails, Trolley Bays, Temporary Structure, Shop Fittings, Furnitures and many more.
