DF AC - Fence Fitting Adjustable Corner Galvanized
Please confirm the size of your tube, using the 'Size Guide' table below, before placing your order.
Bulk Buying Discounts
*Discount will be applied automatically to your cart.
Minimum Qty | Discount |
Buy 10+ | 5% Off |
Buy 25+ | 10% Off |
Buy 50+ | 15% Off |

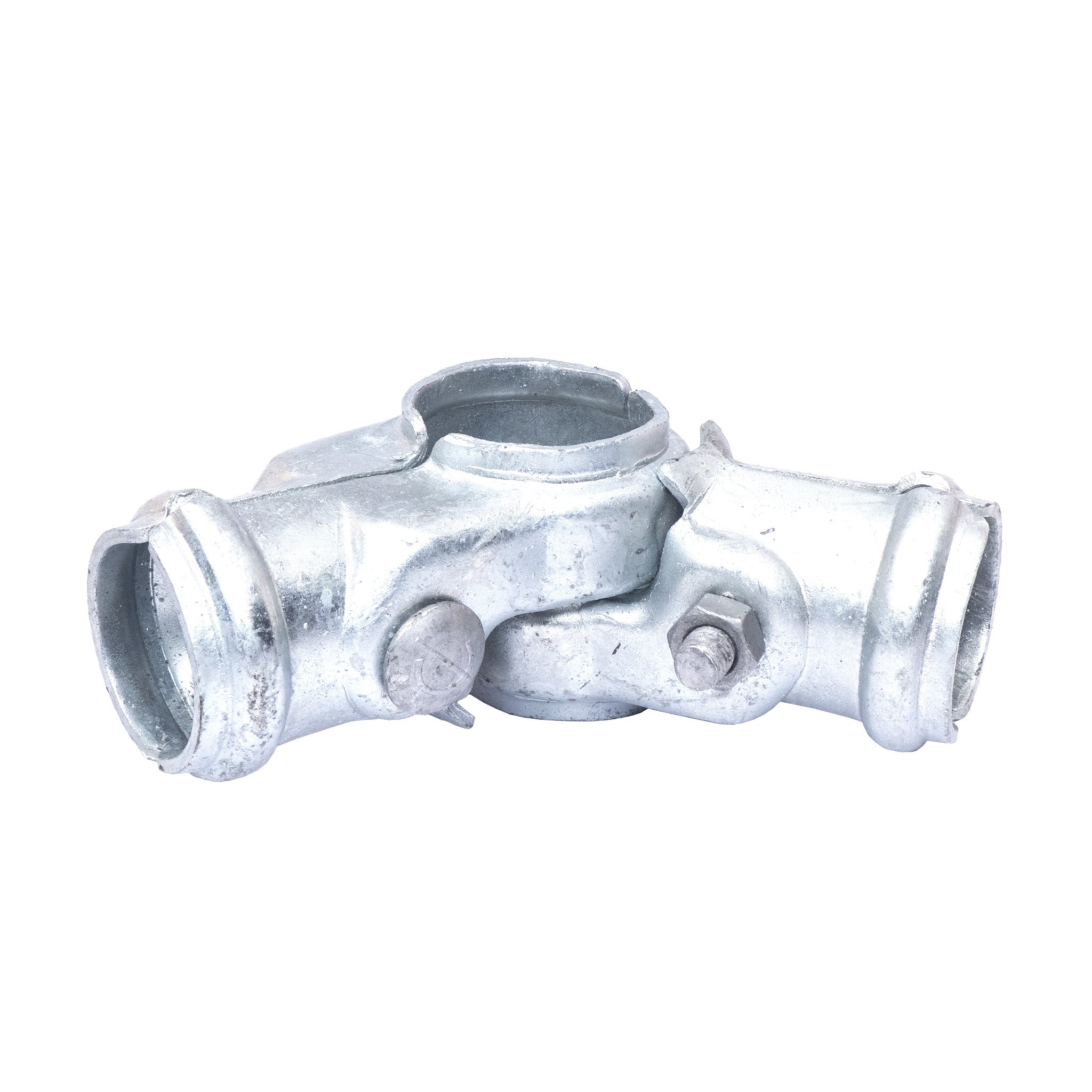

The DF AC Adjustable Corner Fence Fitting is a two part fence fitting designed to act as an adjustable corner fence for the construction of fencing. The DF AC allows a continuous vertical post through the center and two end pipes that join on either side.
The two halves of the fitting can be rotated to adjust the angle of the horizontal pipes before tightening.
These adjustable crosses can rotate through 270 degrees enabling you to connect through and butt pipe pieces to almost any required angles.
- The TRU (Through) Post for the Adjustable Corner Fitting represents the vertical posts that passes through the middle of the fitting. The Butt Rails represent the adjustable horizontal swivel connections.
If your horizontal post has a 48mm outside diameter and your connecting horizontal posts have a 34mm outside diameter you would choose the D48 Tru Post x B34 Post Rails fitting.
- Alternatively try Tube Clamp TC116 for fixed post and rails of the same size.
Tubeclamp Fence Fittings are clamp-on and dont require welding or special tools. Simply place the fitting in position, insert the screws and tighten the provided nut.
Some products are available as pre-order* for pick up or shipping only.
* = requires up to 2 working days notice.
Fitting Size | Tube Size |
Tubeclamp Code | Outside Diameter | Imperial | Metric |
T21 | 21.3mm / 0.84" | 1/2 | 15NB |
A27 | 26.9mm / 1.05" | 3/4 | 20NB |
B34 | 33.7mm / 1.315" | 1 | 25NB |
C42 | 42.4mm / 1.66" | 1 1/4 | 32NB |
D48 | 48.3mm / 1.9" | 1 1/2 | 40NB |
E60 | 60.3mm / 2.375" | 2 | 50NB |
Unsure what Tru and Butt means?
'Tru' (short for Through) and 'Butt' (or rail) are the designated connection points for tubes in a fence fitting. In the Tee example depicted on the left, the 'Tru' indicates the location where the tube passes through the fitting, while the 'Butt' indicates where a tube terminates in the fitting.
However, for the DF X Fixed Cross, the 'Tru' is replaced with 'Post' while still representing the through connection. If you are uncertain about which connection corresponds to each point, particularly for fittings that join tubes of different sizes, please do not hesitate to contact us for further clarification.
What is OD and NB?
OD refers to the diameter of the outside of a tube. We refer to this using milimeter measurements such as C42mm or D48mm.
NB refers to the diameter of the hollow inside of a tube. It is traditionally refered to using Imperial measurements such as 1 & 1/4", or 1 & 1/2" or using NB such as 32NB and 40NB. Older tube and fittings was often made with these measurements in mind.
You can find a table with the common size comparisons under our "Size Guide" at the top of the page, or call and talk to a member of our team for assistance.
Australia Wide Shipping
You can choose between picking up your order from the store or getting it delivered to your doorstep anywhere in Australia. If you place your order before 10am from Monday to Friday, we'll make sure to dispatch it on the same day. For orders placed after this time or on public holidays, we'll dispatch them on the next working day.
Our Return Policy
For further information, please feel free to contact us directly.
FENCE & GATE FITTINGS
Frequently Asked Questions
Which fitting size do i chose?
We offer fittings that suit most standard tube sizes sold in Australia. To pick the correct fitting for you, first you need to measure the tube you intend on using to find out its OD (Outside Diameter). You can use this size to choose the corresponding fitting size.
For example, our size B34 is suited to 34mm OD tube.
Tru Post v Butt Rails
Our range of fence fittings is specifically designed to facilitate the connection of tubes of varying sizes. Certain fittings offer multiple connection points, allowing for the insertion of your tube. The Tru Post and Butt Rails serve as representations of these connections. The term "Tru Post" is a shortened form of "Through Post," indicating that the tube or post passes through the fitting, such as the top of the T in a tee fitting. On the other hand, the Butt Rails are utilized to terminate the tube.
To illustrate this concept, let's consider two examples. Firstly, a Tee fitting is employed at the top of a fence. In this case, the Tru Post refers to the section where the horizontal tube passes through, while the vertical post is referred to as the Rail Butt. Alternatively, the Tee fitting can be utilized to connect a middle rail to an end post. In this scenario, the Tru Post connects to the vertical post, while the Rail Butt supports the horizontal rail.
Metric or Imperial?
What are your fittings made from?
