300 - Spare Set Screw for Tube Clamp Fittings

Tax included.

Choose a size

Quantity

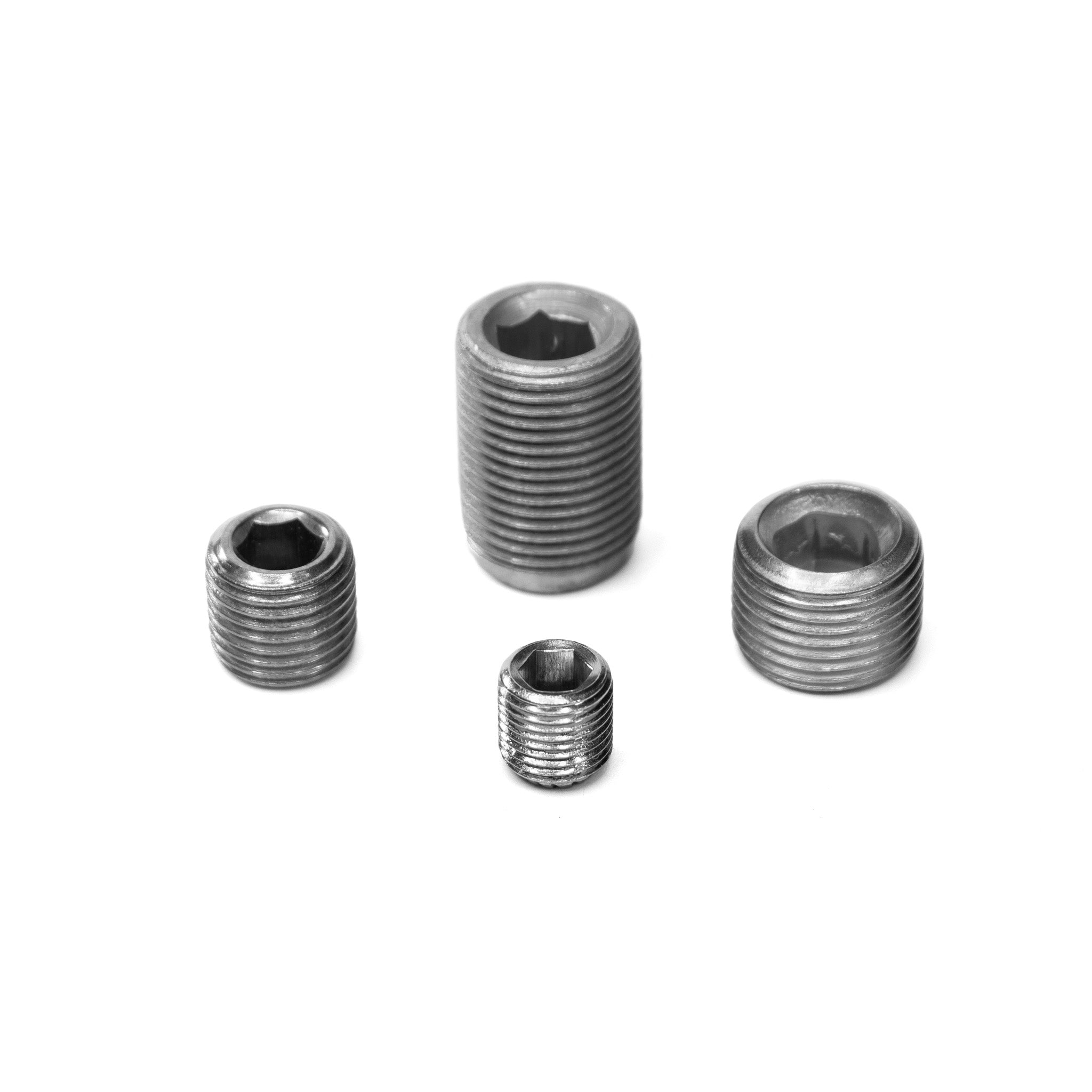

Socket Spare Set screw for tube clamp fittings.

Fitting Size	Size
T21	3/8 BSF Hard Steel x 10mm
A27 B34	1/4 ISO 228 Stainless Steel x 13mm 1/4 ISO 228 Stainless Steel x 25mm long (long grub screw)
C42 D48 E60	3/8 ISO 228 Stainless Steel x 13mm 3/8 ISO 228 Stainless Steel x 25mm long (long grub screw)

To cover the hole, you can use a plastic screw cap or use anti-theft insert.

*Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Product:	TubeClamp® fittings
Material:	Fittings cast of malleable cast iron - galvanized finish Cast iron fittings or casting to comply with AS 1832 (ISO 5922) Hot Dipped Galvanized finish to comply with AS 4680
Set Screw:	Cup Point Case hardened setscrew in 45CR Alloy Steel (alternative* Stainless Steel 308) Size C42, D48, E60 using 3/8” ISO 228 with 5/16” (8mm) hex key Size A27, B34 using ¼” ISO 228 with ¼” (6.5mm) hex key Size T21 using 1/8 BSF with 3/16” (5mm) hex key
Feature:	No Welding Slip on Structural Fittings
Tensile Load:	min 5,650 N axial load subjected to 40Nm tightened torque (FOS 2.0 min)
Testing:	Internally by Solid Dynamics Engineering Pty Ltd. Testing videos are available upon request
Design:	Tubeclamp Structural Fittings, when properly installed per manufacturing recommendations, meet or exceed all applicable requirements as specified by Australian Standard
Applications:	Handrails, Trolley Bays, Temporary Structure, Shop Fittings, Furnitures and many more.
