Bed 971 - Single Bunk Pipe Bed "John"

  • Sale
  • PLEASE CALL FOR PRICING Regular price
Tax included.

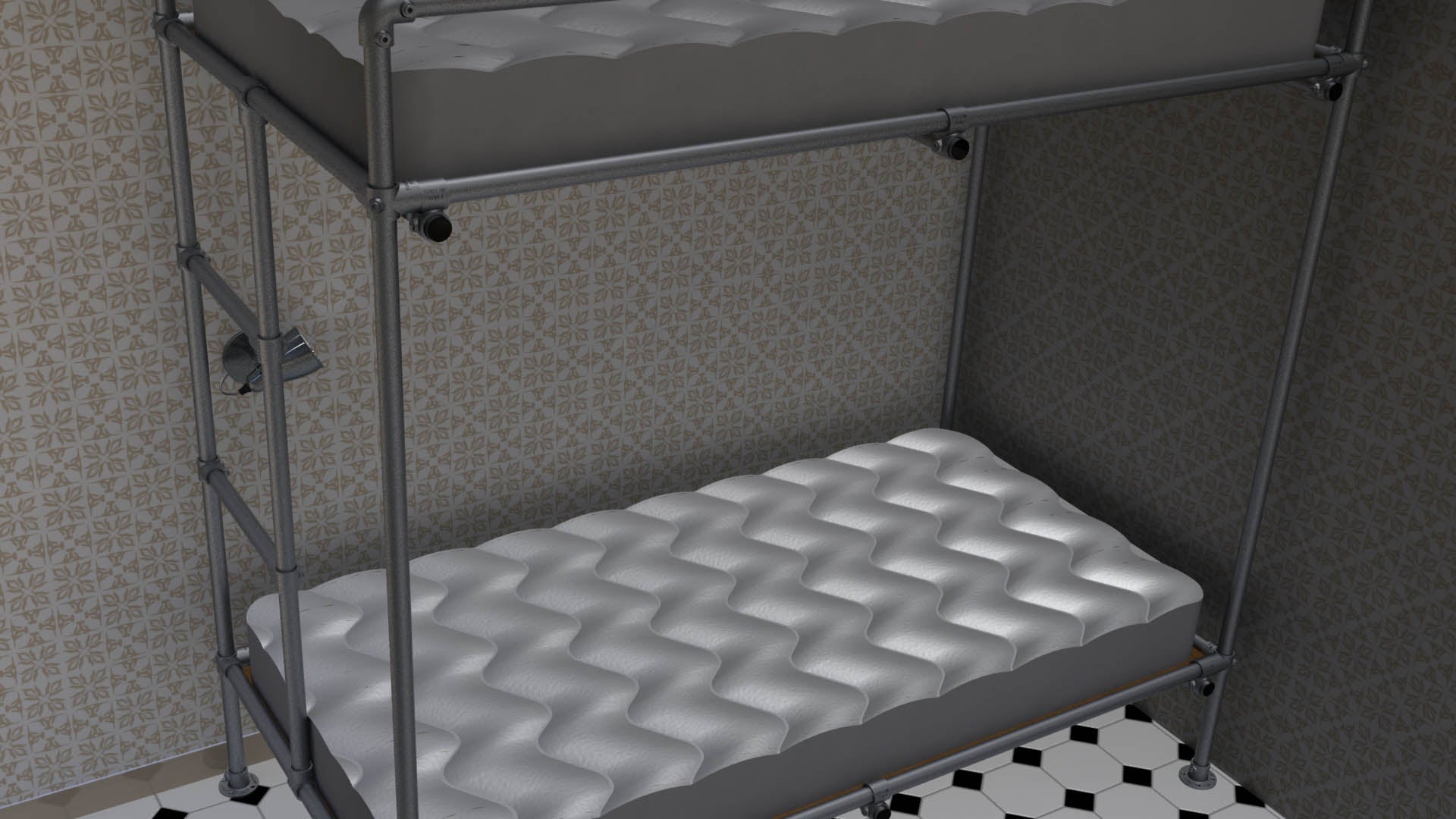

The K971 Single Bunk Pipe Bed is a budget and affordable bunk bed with a ladder add-on to the side for access to the top bunk.

Fitting two people in the same amount of space with storage available below the beds, where you can store a third mattress, this bunk bed is an easy and affordable solution for efficient use of space. Perfect solution for group accommodation.

- Mattress in picture not included in this kit

- A large plank (not included) should be placed on the frame to support the mattress before use.

Kit contains:

TC101B Short Tee

TC116B Corner Middle Cross

TC125B Standard Elbow

TC131B Wall Round Flange

TC133B End Cap Plastic

TC161B Standard Crossover

1910mm Tube

1900mm Tube

1300mm Tube

1050mm Tube

930mm Tube

420mm Tube

Tube size: B 25NB/33.7mm

Custom Sizes:
If you want to order a custom size, the easiest way is to look at the image on the left with red and blue coloured letters and change the (L, H, W, etc) to your own dimensions.

You only need to fill in the dimensions in red.

After placing the kit in your cart, leave a message in the "Special Instructions to Seller" with your dimensions, or email us. We will get back to you soon with a quote.

Fitting Size
Tube Size
Tubeclamp Code
Outside Diameter
Imperial
Metric
T 21
21.3mm
½
15NB
A 27
26.9mm
¾
20NB
B 34
33.7mm
1
25NB
C 42
42.4mm
1 ¼
32NB
D 48
48.3mm
1 ½
40NB
E 60
60.3mm
2
50NB

*Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.




Product: TubeClamp® fittings
Material:

Fittings cast of malleable cast iron - galvanized finish
Cast iron fittings or casting to comply with AS 1832 (ISO 5922)
Hot Dipped Galvanized finish to comply with AS 4680

Set Screw:

Cup Point Case hardened setscrew in 45CR Alloy Steel (alternative* Stainless Steel 308)
Size C42, D48, E60 using 3/8” ISO 228 with 5/16” (8mm) hex key
Size A27, B34 using ¼” ISO 228 with ¼” (6.5mm) hex key
Size T21 using 1/8 BSF with 3/16” (5mm) hex key

Feature: No Welding Slip on Structural Fittings
Tensile Load: min 5,650 N axial load subjected to 40Nm tightened torque (FOS 2.0 min)
Testing: Internally by Solid Dynamics Engineering Pty Ltd. Testing videos are available upon request
Design: Tubeclamp Structural Fittings, when properly installed per manufacturing recommendations, meet or exceed all applicable requirements as specified by Australian Standard
Applications: Handrails, Trolley Bays, Temporary Structure, Shop Fittings, Furnitures and many more.
