945 - Standing Table

  • Sale
  • PLEASE CALL FOR PRICING Regular price
Tax included.

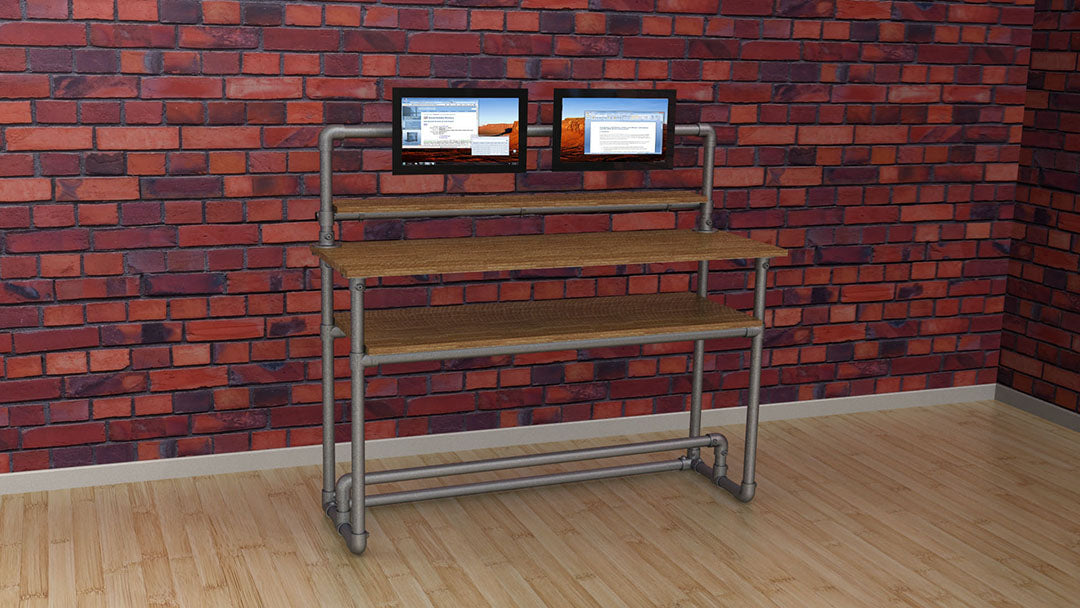

The K945 Standing Table provides an option for you to stand while working. If you're tired of sitting down for hours in the office, this table is for you.

- Timber panels are not included.

Kit contains:

TC101C Short Tee

TC125C Standard Elbow

TC131C Wall Round Flange

TC128C Corner Top Cross

TC161XCB Reduction Crossover

TC133B End Cap Plastic

TC555 Disability Swivel Railing Lug

TC173MC Swivel Male Socket

TC198B Double Lug Bracket

1730mm Tube (size B)

1600mm Tube

1000mm Tube

400mm Tube

100mm Tube

Assembled size:
L 180cm x W42cm x H140cm
Tube size: C 32NB/42.4mm

Custom Sizes:
If you want to order a custom size, the easiest way is to look at the image on the left with red and blue coloured letters and change the (L, H, W, etc) to your own dimensions.

You only need to fill in the dimensions in red.

After placing the kit in your cart, leave a message in the "Special Instructions to Seller" with your dimensions, or email us. We will get back to you soon with a quote.

Fitting Size
Tube Size
Tubeclamp Code
Outside Diameter
Imperial
Metric
T 21
21.3mm
½
15NB
A 27
26.9mm
¾
20NB
B 34
33.7mm
1
25NB
C 42
42.4mm
1 ¼
32NB
D 48
48.3mm
1 ½
40NB
E 60
60.3mm
2
50NB

*Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.




Product: TubeClamp® fittings
Material:

Fittings cast of malleable cast iron - galvanized finish
Cast iron fittings or casting to comply with AS 1832 (ISO 5922)
Hot Dipped Galvanized finish to comply with AS 4680

Set Screw:

Cup Point Case hardened setscrew in 45CR Alloy Steel (alternative* Stainless Steel 308)
Size C42, D48, E60 using 3/8” ISO 228 with 5/16” (8mm) hex key
Size A27, B34 using ¼” ISO 228 with ¼” (6.5mm) hex key
Size T21 using 1/8 BSF with 3/16” (5mm) hex key

Feature: No Welding Slip on Structural Fittings
Tensile Load: min 5,650 N axial load subjected to 40Nm tightened torque (FOS 2.0 min)
Testing: Internally by Solid Dynamics Engineering Pty Ltd. Testing videos are available upon request
Design: Tubeclamp Structural Fittings, when properly installed per manufacturing recommendations, meet or exceed all applicable requirements as specified by Australian Standard
Applications: Handrails, Trolley Bays, Temporary Structure, Shop Fittings, Furnitures and many more.
