Project 922 - Storage Shelving 04

  • Sale
  • Regular price $1,960.13
Tax included.

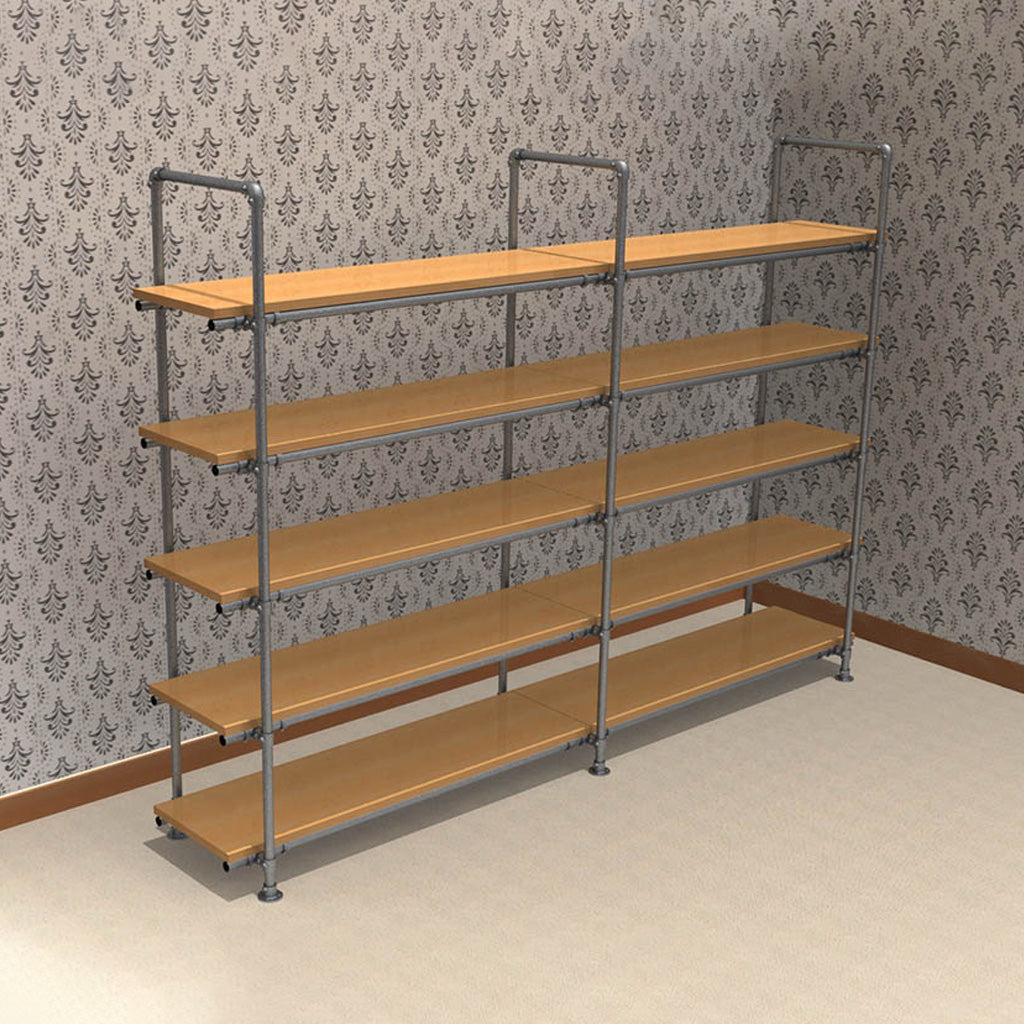

A practical, functional and stylish shelving solution. Great for home or retail shelving and storage. Easy to assemble, it features our easy slip-on and tighten connection system which only requires a hex key to secure, making it perfect for DIY builders.

This shelving system can be made to your custom requirements. Just send us an email with your required size, dimensions, how many vertical tubes you want and how many shelves you would like to have. The wooden panels will not be included in the quotation.

- Timber panels for shelves (not included) are required to assemble this kit.

Kit contains:

TC101B Short Tee

TC119B Cross

TC199B Single Lug Bracket

TC125B Standard Elbow

TC131B Wall Round Flange

TC133B End Cap Plastic

2300mm Tube

1500mm Tube

530mm Tube

100mm Tube

Assembled size:
L 320cm x H 230cm
Tube size: B 25NB/33.7mm

Custom Sizes:
If you want to order a custom size, the easiest way is to look at the image on the left with red and blue coloured letters and change the (L, H, W, etc) to your own dimensions.

You only need to fill in the dimensions in red.

After placing the kit in your cart, leave a message in the "Special Instructions to Seller" with your dimensions, or email us. We will get back to you soon with a quote.

Fitting Size
Tube Size
Tubeclamp Code
Outside Diameter
Imperial
Metric
T 21
21.3mm
½
15NB
A 27
26.9mm
¾
20NB
B 34
33.7mm
1
25NB
C 42
42.4mm
1 ¼
32NB
D 48
48.3mm
1 ½
40NB
E 60
60.3mm
2
50NB

*Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.




Product: TubeClamp® fittings
Material:

Fittings cast of malleable cast iron - galvanized finish
Cast iron fittings or casting to comply with AS 1832 (ISO 5922)
Hot Dipped Galvanized finish to comply with AS 4680

Set Screw:

Cup Point Case hardened setscrew in 45CR Alloy Steel (alternative* Stainless Steel 308)
Size C42, D48, E60 using 3/8” ISO 228 with 5/16” (8mm) hex key
Size A27, B34 using ¼” ISO 228 with ¼” (6.5mm) hex key
Size T21 using 1/8 BSF with 3/16” (5mm) hex key

Feature: No Welding Slip on Structural Fittings
Tensile Load: min 5,650 N axial load subjected to 40Nm tightened torque (FOS 2.0 min)
Testing: Internally by Solid Dynamics Engineering Pty Ltd. Testing videos are available upon request
Design: Tubeclamp Structural Fittings, when properly installed per manufacturing recommendations, meet or exceed all applicable requirements as specified by Australian Standard
Applications: Handrails, Trolley Bays, Temporary Structure, Shop Fittings, Furnitures and many more.
