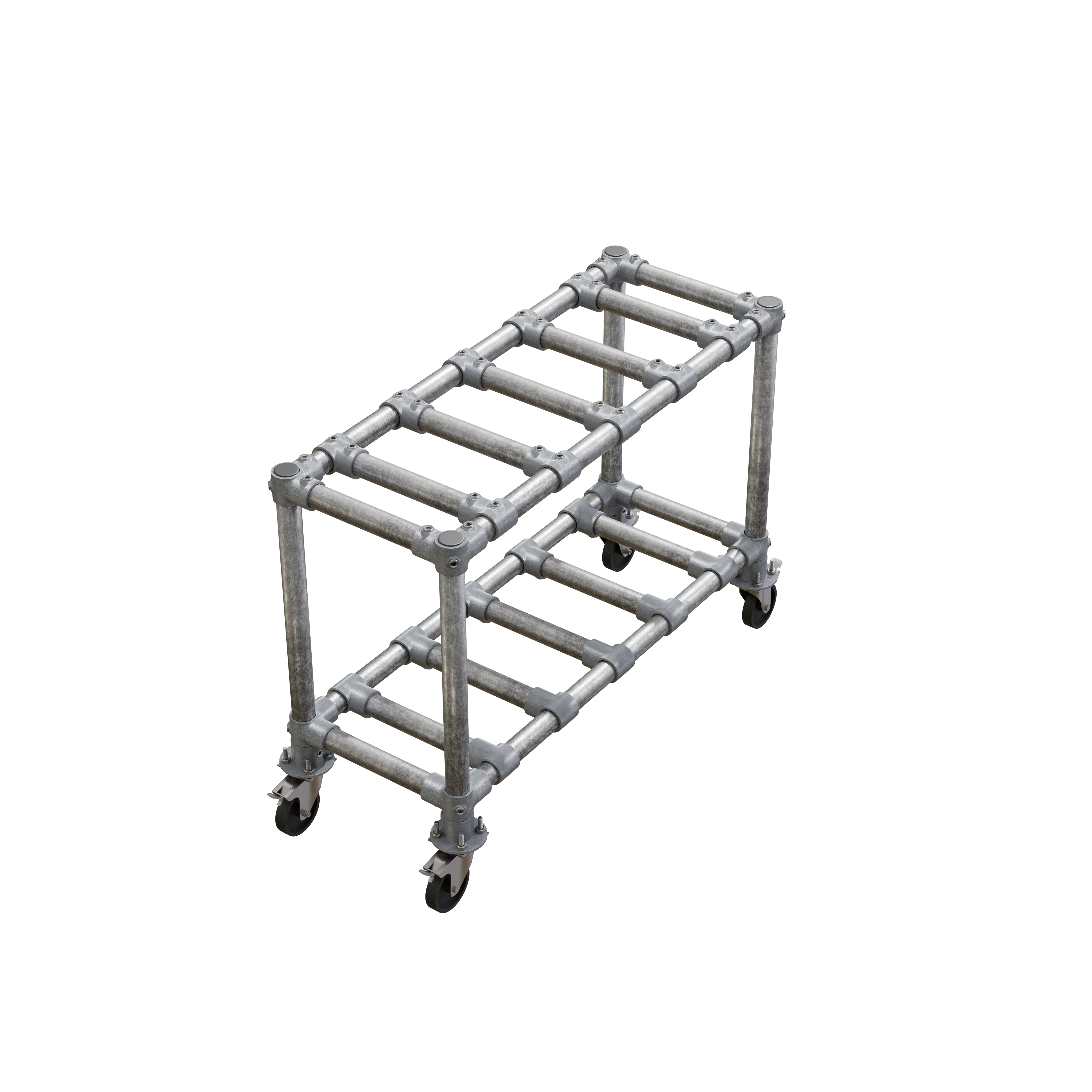

884 - Workshop Trolley 400x700 - 32NB
A small trolley mounted on castor wheels for easy mobility. Perfect for workshops. (Custom design prices may vary.)
This freestanding structure is easy to assemble, featuring our easy slip-on and tighten connection system which only requires a hex key to secure.
Kit contains:
X310CD Castor Swivel with Brake
1015mm Tube
610mm Tube
315mm Tube
Outer Dimensions When Assembled:
1100mm x 400mm x 750mm (Length x Width x Height)
Tube size: C 32NB/42.4mm
Custom Sizes:
If you want to order a custom size, the easiest way is to look at the image on the left with red coloured letters and change the (L, H, W to your own dimensions.
After placing the kit in your cart, leave a message in the "Special Instructions to Seller" with your dimensions.
*Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.
| Product: | TubeClamp® fittings |
| Material: | Fittings cast of malleable cast iron - galvanized finish |
| Set Screw: | Cup Point Case hardened setscrew in 45CR Alloy Steel (alternative* Stainless Steel 308) |
| Feature: | No Welding Slip on Structural Fittings |
| Tensile Load: | min 5,650 N axial load subjected to 40Nm tightened torque (FOS 2.0 min) |
| Testing: | Internally by Solid Dynamics Engineering Pty Ltd. Testing videos are available upon request |
| Design: | Tubeclamp Structural Fittings, when properly installed per manufacturing recommendations, meet or exceed all applicable requirements as specified by Australian Standard |
| Applications: | Handrails, Trolley Bays, Temporary Structure, Shop Fittings, Furnitures and many more. |
