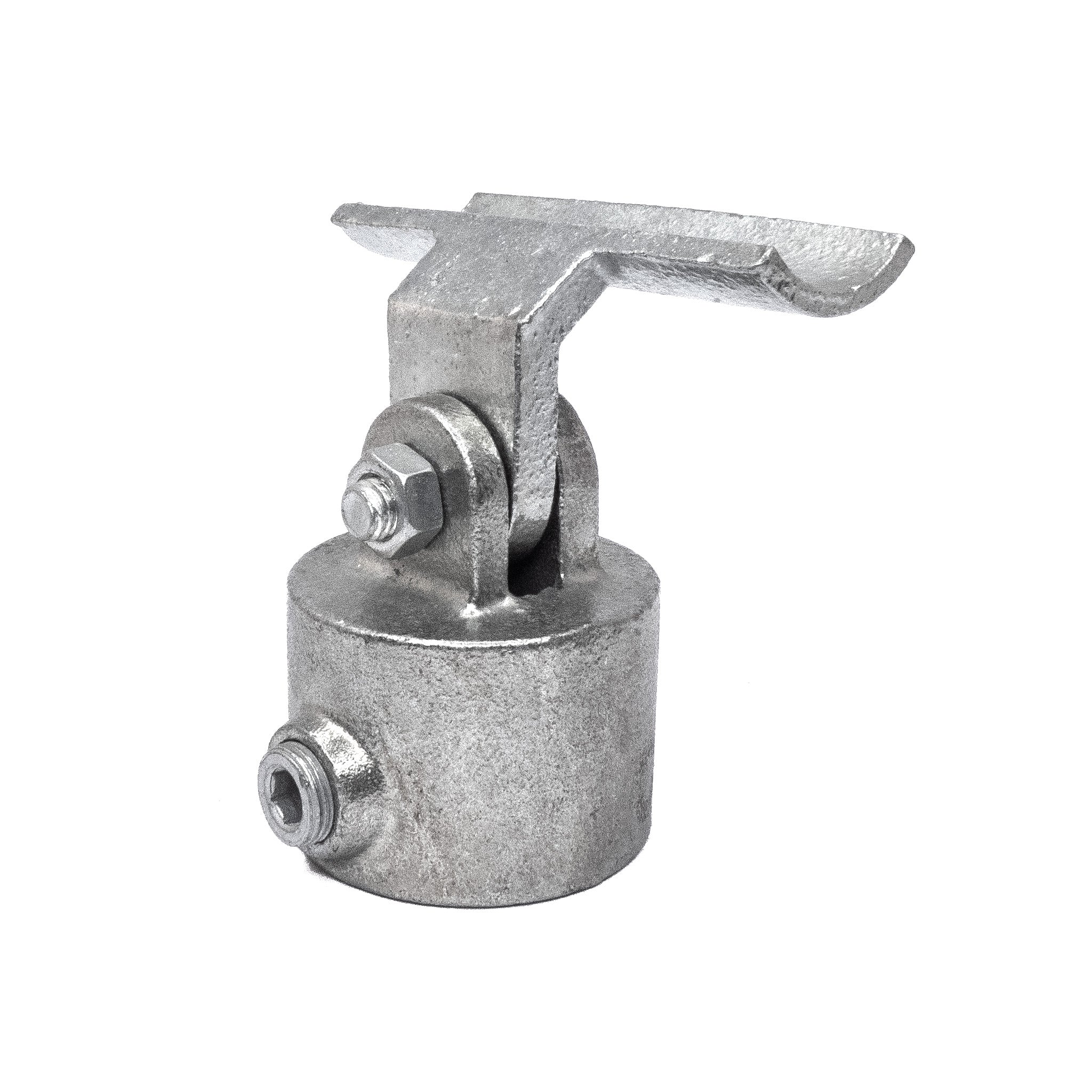

756 - DDA Assist Swivel Offset Tee Handrail Bracket Galvanised

  • Sale
  • Prices ONLINE ONLY and are GST inclusive, Freight calculated at checkout.

     Price for selected size
  • $24.37
  •
  • Regular price $24.17
  • ea



  • 755 - DDA Assist Swivel Inline Tee Handrail Bracket Galvanised

    Product Description

    This fitting joins two tubes into a tee joint. It is mainly used in handrails where the top rail is required to meet Australian Disability Standard: AS1428. It is only available in size C and D.

    This fitting requires the handrail tube to be drilled and fastened with appropriate screws or rivets (not supplied).

    The fitting can then be attached to stanchion post in C42 (TC755C) or D48 (TC755D). The assembly comes from TC556, TC173F, bolt and nut

    Often used with TC754 for change direction, BAR 723 for J Bend Handrail Termination or TC 765 for Wall End Railing Termination or TC767 for End Post Termination.



    Common Usage

    We use 756 offset swivel tee to make DDA railing without the use of sleeve-on (standard) fittings.



    Similar products

    TC715

    718 - DDA3 Assist Socket Hrail Bracket Post D48

    Offset Handrail Assist Post Bracket

    TC751

    751 - DDA Assist Swivel Inline Half Tee

    Half Saddle Bracket

    TC755

    755 - DDA Assist Swivel InlineTee

    Inline Full Saddle Bracket

    TC770

    770 - DDA6 Wall Assist Bracket

    Wall Mounted Handrail Bracket

    * Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

    * Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.


  • Fitting Size
    Tube Size
    Tubeclamp Code Kee Klamp Code Outside Diameter Imperial Metric
    T 21 4 21.3mm ½ 15NB
    A 27 5 26.9mm ¾ 20NB
    B 34 6 33.7mm 1 25NB
    C 42 7 42.4mm 1 ¼ 32NB
    D 48 8 48.3mm 1 ½ 40NB
    E 60 9 60.3mm 2 50NB

    *Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

  • Product: TubeClamp® fittings
    Material:

    Fittings cast of malleable cast iron - galvanized finish
    Cast iron fittings or casting to comply with AS 1832 (ISO 5922)
    Hot Dipped Galvanized finish to comply with AS 4680

    Set Screw:

    Cup Point Case hardened setscrew in 45CR Alloy Steel (alternative* Stainless Steel 308)
    Size C42, D48, E60 using 3/8” ISO 228 with 5/16” (8mm) hex key
    Size A27, B34 using ¼” ISO 228 with ¼” (6.5mm) hex key
    Size T21 using 1/8 BSF with 3/16” (5mm) hex key

    Feature: No Welding Slip on Structural Fittings
    Tensile Load: min 5,650 N axial load subjected to 40Nm tightened torque (FOS 2.0 min)
    Testing: Internally by Solid Dynamics Engineering Pty Ltd. Testing videos are available upon request
    Design: Tubeclamp Structural Fittings, when properly installed per manufacturing recommendations, meet or exceed all applicable requirements as specified by Australian Standard
    Applications: Handrails, Trolley Bays, Temporary Structure, Shop Fittings, Furnitures and many more.
