725 - DDA Assist Split Elbow C42

  • Sale
  • Regular price $29.53
Tax included.


Product Description

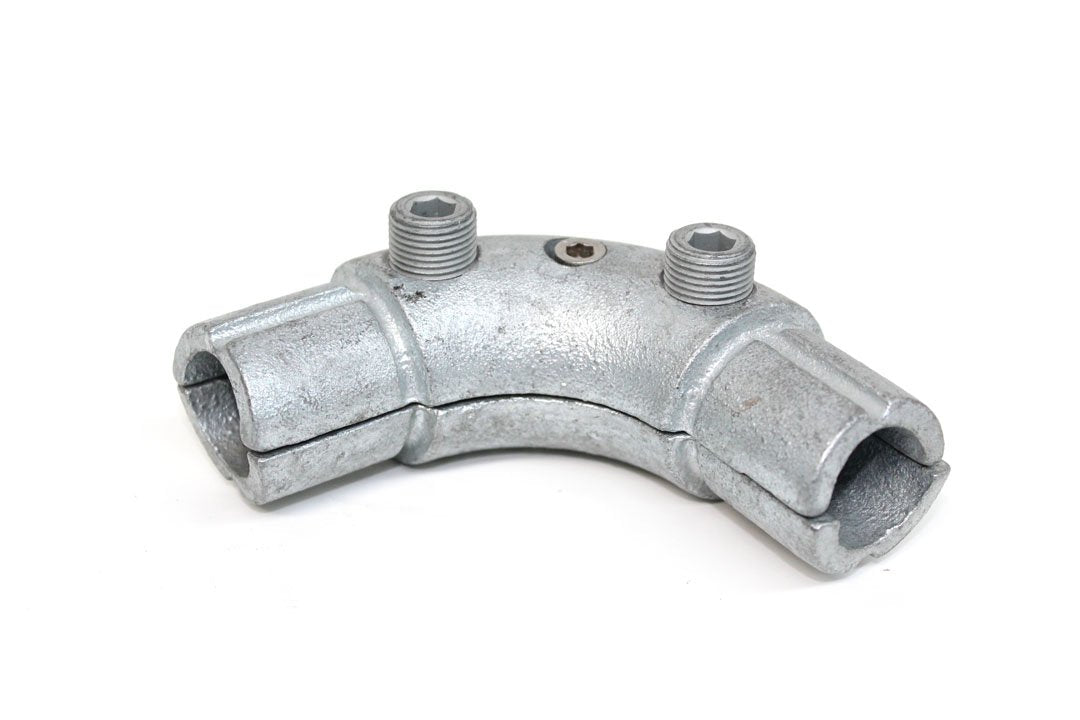

This fitting makes a 90-degree corner elbow. The TC725 joins two tubes in 90 degrees elbow joint position. This is similar to TC150 Internal Tube Joiner but is designed for corner elbow structures.



Common Usage

We commonly see this fitting used in railing applications either in walkways, ramps or stairways.



Similar products

TC125

125 - Standard (90deg) Elbow Galvanized Pipe Fitting

Standard Elbow

TC715

715 - DDA1 Assist Solid Elbow C42

Solid Elbow (90degree)

BAR 720C

Bended Bar 720 - C42 Bar bend as L for Corner (500x500)

90deg bend

Fitting Size
Tube Size
Tubeclamp Code
Outside Diameter
Imperial
Metric
T 21
21.3mm
½
15NB
A 27
26.9mm
¾
20NB
B 34
33.7mm
1
25NB
C 42
42.4mm
1 ¼
32NB
D 48
48.3mm
1 ½
40NB
E 60
60.3mm
2
50NB

*Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.




Product: TubeClamp® fittings
Material:

Fittings cast of malleable cast iron - galvanized finish
Cast iron fittings or casting to comply with AS 1832 (ISO 5922)
Hot Dipped Galvanized finish to comply with AS 4680

Set Screw:

Cup Point Case hardened setscrew in 45CR Alloy Steel (alternative* Stainless Steel 308)
Size C42, D48, E60 using 3/8” ISO 228 with 5/16” (8mm) hex key
Size A27, B34 using ¼” ISO 228 with ¼” (6.5mm) hex key
Size T21 using 1/8 BSF with 3/16” (5mm) hex key

Feature: No Welding Slip on Structural Fittings
Tensile Load: min 5,650 N axial load subjected to 40Nm tightened torque (FOS 2.0 min)
Testing: Internally by Solid Dynamics Engineering Pty Ltd. Testing videos are available upon request
Design: Tubeclamp Structural Fittings, when properly installed per manufacturing recommendations, meet or exceed all applicable requirements as specified by Australian Standard
Applications: Handrails, Trolley Bays, Temporary Structure, Shop Fittings, Furnitures and many more.
