715 - DDA1 Assist Solid Elbow C42

  • Sale
  • Regular price $16.90
Tax included.


Product Description

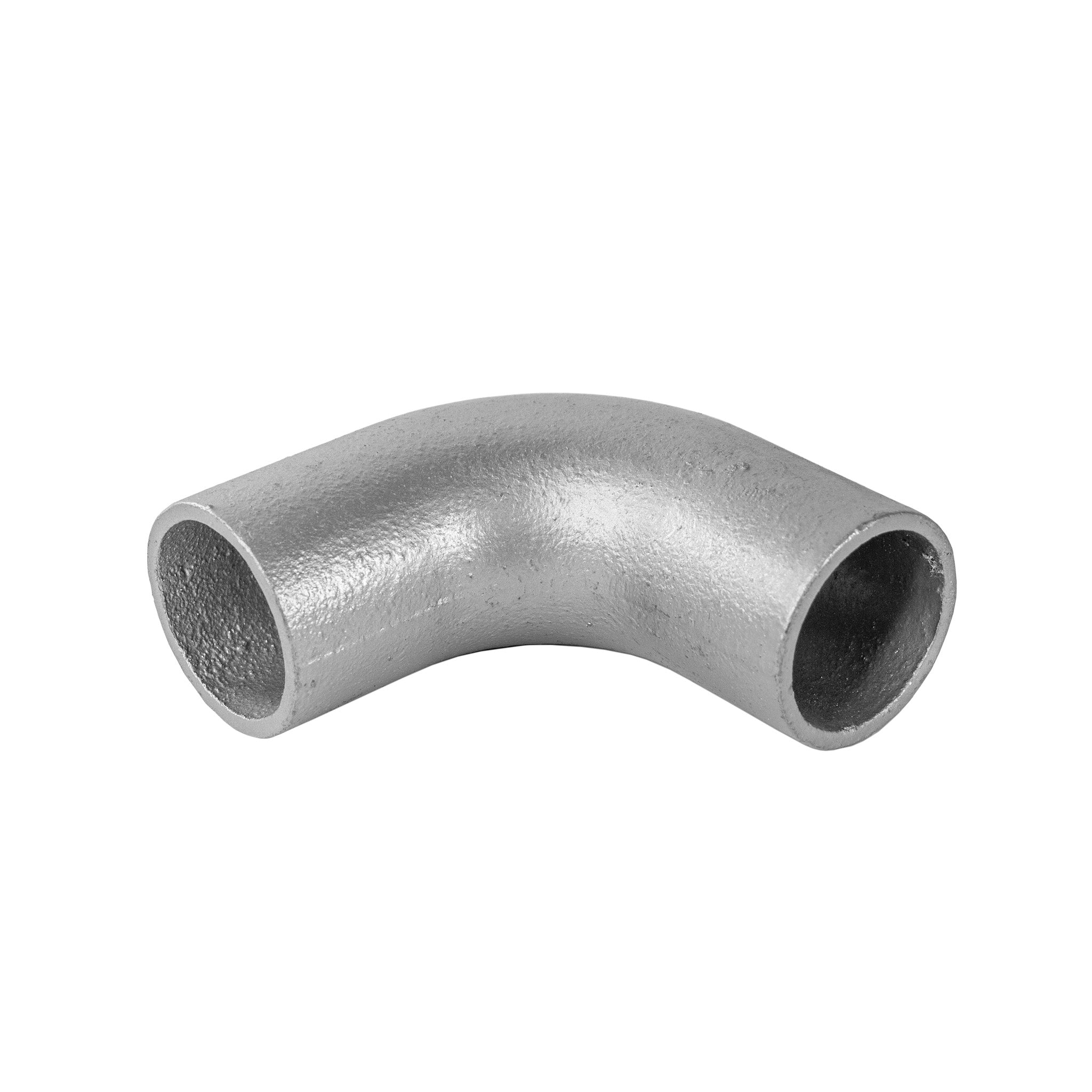

The TC715 makes a 90-degree corner. When installed, the fitting does not protrude further than the tubing. The TC715's diameter should be the same as the diameter of the tube you are connecting it to.

This fitting requires 2 x TC150C Internal Tube Joiner fittings to connect to tubes

Common Usage

Used to create solid elbow on the grab rail of an ADA railing.



Similar products

TC718

718 - DDA3 Assist Socket Hrail Bracket Post D48 (748)

Handrail Bracket Post

TC725

725 - DDA Assist Split Elbow C42

Split Elbow (90-degree)

BAR 720C

Bended Bar 720 - C42 Bar bend as L for Corner (500x500)

90deg bend

TC754

754 - DDA5 Assist Swivel Elbow C42 (764)

Adjustable Elbow

TC755

755 - DDA Assist Swivel Inline Tee Handrail Bracket Galvanised

Assist Swivel Inline Tee

TC756

756 - DDA Assist Swivel Offset Tee Handrail Bracket Galvanised

Assist Swivel Offset Tee



Fitting Size
Tube Size
Tubeclamp Code
Outside Diameter
Imperial
Metric
T 21
21.3mm
½
15NB
A 27
26.9mm
¾
20NB
B 34
33.7mm
1
25NB
C 42
42.4mm
1 ¼
32NB
D 48
48.3mm
1 ½
40NB
E 60
60.3mm
2
50NB

*Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.




Product: TubeClamp® fittings
Material:

Fittings cast of malleable cast iron - galvanized finish
Cast iron fittings or casting to comply with AS 1832 (ISO 5922)
Hot Dipped Galvanized finish to comply with AS 4680

Set Screw:

Cup Point Case hardened setscrew in 45CR Alloy Steel (alternative* Stainless Steel 308)
Size C42, D48, E60 using 3/8” ISO 228 with 5/16” (8mm) hex key
Size A27, B34 using ¼” ISO 228 with ¼” (6.5mm) hex key
Size T21 using 1/8 BSF with 3/16” (5mm) hex key

Feature: No Welding Slip on Structural Fittings
Tensile Load: min 5,650 N axial load subjected to 40Nm tightened torque (FOS 2.0 min)
Testing: Internally by Solid Dynamics Engineering Pty Ltd. Testing videos are available upon request
Design: Tubeclamp Structural Fittings, when properly installed per manufacturing recommendations, meet or exceed all applicable requirements as specified by Australian Standard
Applications: Handrails, Trolley Bays, Temporary Structure, Shop Fittings, Furnitures and many more.
