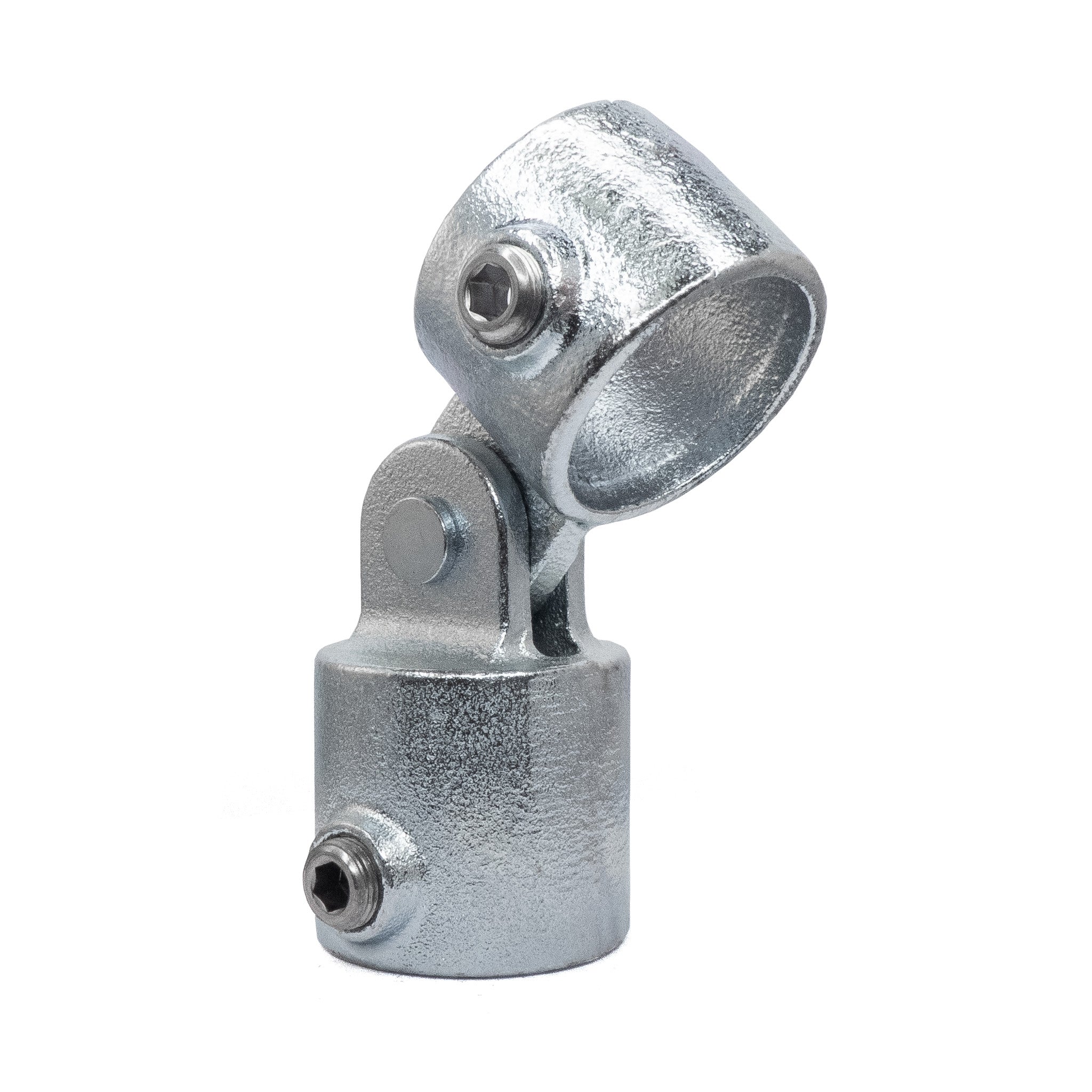

This fitting joins two tubes together into a tee joint similar to TC101 Short Tee. However, this fitting does not keep the tubes fixed at 90 degrees, It can swivel to suit any angle necessary.
NOTE: you can't fix the angle using a bolt and nut. You need to secure the tube end into place.
Designed for both indoor and outdoor projects, it features our easy slip-on and tighten connection system which only requires a hex key to secure.
It can be used in pipe structures, railings, racks and furniture.
- Alternative to TC172 Half Swivel Combined
*Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.
Fittings cast of malleable cast iron - galvanized finish
Cup Point Case hardened setscrew in 45CR Alloy Steel (alternative* Stainless Steel 308)
|Feature:||No Welding Slip on Structural Fittings|
|Tensile Load:||min 5,650 N axial load subjected to 40Nm tightened torque (FOS 2.0 min)|
|Testing:||Internally by Solid Dynamics Engineering Pty Ltd. Testing videos are available upon request|
|Design:||Tubeclamp Structural Fittings, when properly installed per manufacturing recommendations, meet or exceed all applicable requirements as specified by Australian Standard|
|Applications:||Handrails, Trolley Bays, Temporary Structure, Shop Fittings, Furnitures and many more.|
