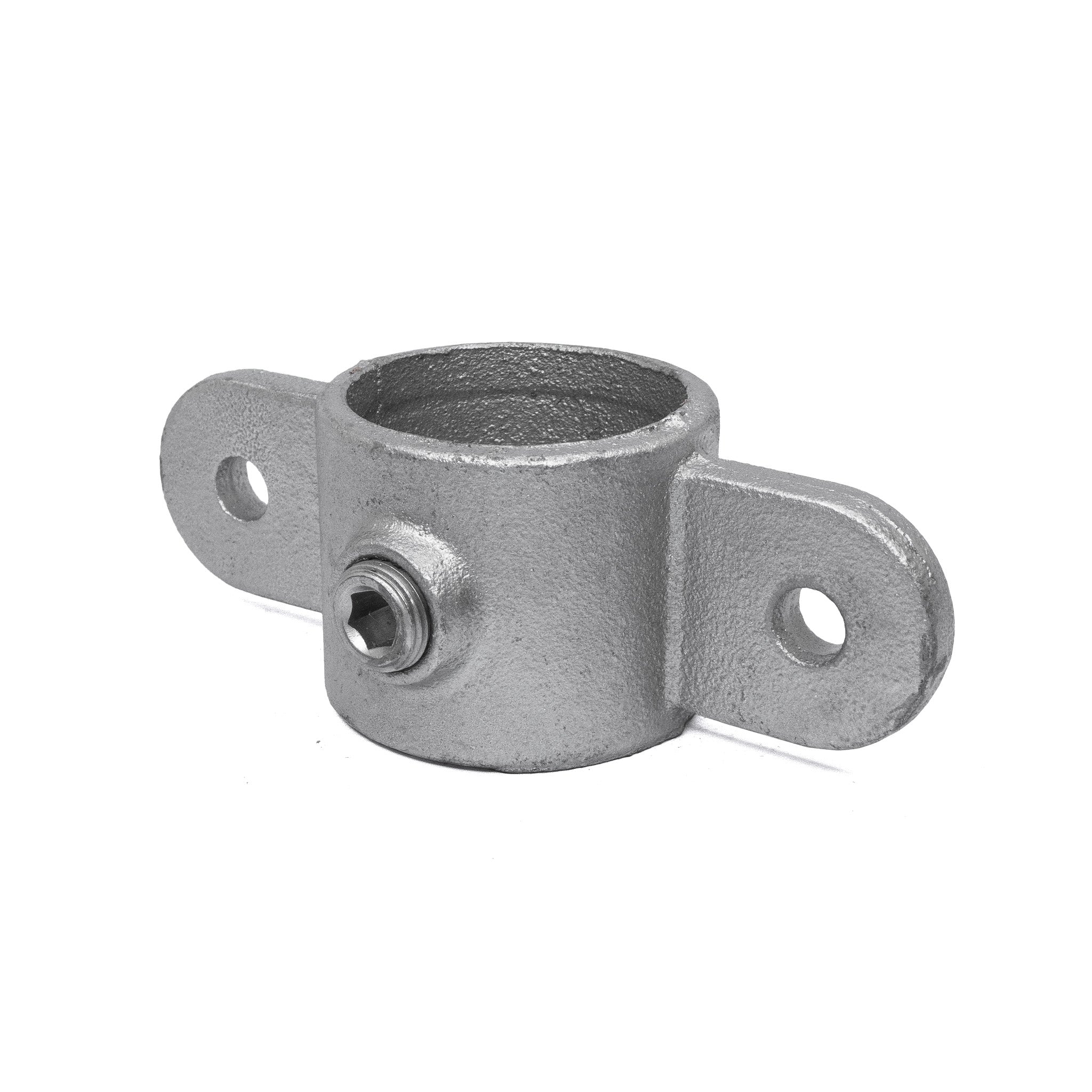

167M - Double Swivel Male

  • Sale
    • Prices ONLINE ONLY and are GST inclusive, Freight calculated at checkout.

     Price for selected size
  • $12.80
    •
  • $13.84
    • ea



  • This fitting is usually used to make TC167 Double Swivel Combine. With its exposed lugs it is suitable for holding up sign boards or shelving.

    Designed for both indoor and outdoor projects, it features our easy slip-on and tighten connection system which only requires a hex key to secure.

    It can be used in pipe structures, railings, racks and furniture.

    - Alternative to TC198 Double Lug Bracket for signboard holders

    - Alternative to TC168M Corner Swivel Male for corners



    * Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

    * Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.


  • Fitting Size
    Tube Size
    Tubeclamp Code Kee Klamp Code Outside Diameter Imperial Metric
    T 21 4 21.3mm ½ 15NB
    A 27 5 26.9mm ¾ 20NB
    B 34 6 33.7mm 1 25NB
    C 42 7 42.4mm 1 ¼ 32NB
    D 48 8 48.3mm 1 ½ 40NB
    E 60 9 60.3mm 2 50NB

    *Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

  • Product: TubeClamp® fittings
    Material:

    Fittings cast of malleable cast iron - galvanized finish
    Cast iron fittings or casting to comply with AS 1832 (ISO 5922)
    Hot Dipped Galvanized finish to comply with AS 4680
    Set Screw:

    Cup Point Case hardened setscrew in 45CR Alloy Steel (alternative* Stainless Steel 308)
    Size C42, D48, E60 using 3/8” ISO 228 with 5/16” (8mm) hex key
    Size A27, B34 using ¼” ISO 228 with ¼” (6.5mm) hex key
    Size T21 using 1/8 BSF with 3/16” (5mm) hex key
    Feature: No Welding Slip on Structural Fittings
    Tensile Load: min 5,650 N axial load subjected to 40Nm tightened torque (FOS 2.0 min)
    Testing: Internally by Solid Dynamics Engineering Pty Ltd. Testing videos are available upon request
    Design: Tubeclamp Structural Fittings, when properly installed per manufacturing recommendations, meet or exceed all applicable requirements as specified by Australian Standard
    Applications: Handrails, Trolley Bays, Temporary Structure, Shop Fittings, Furnitures and many more.
