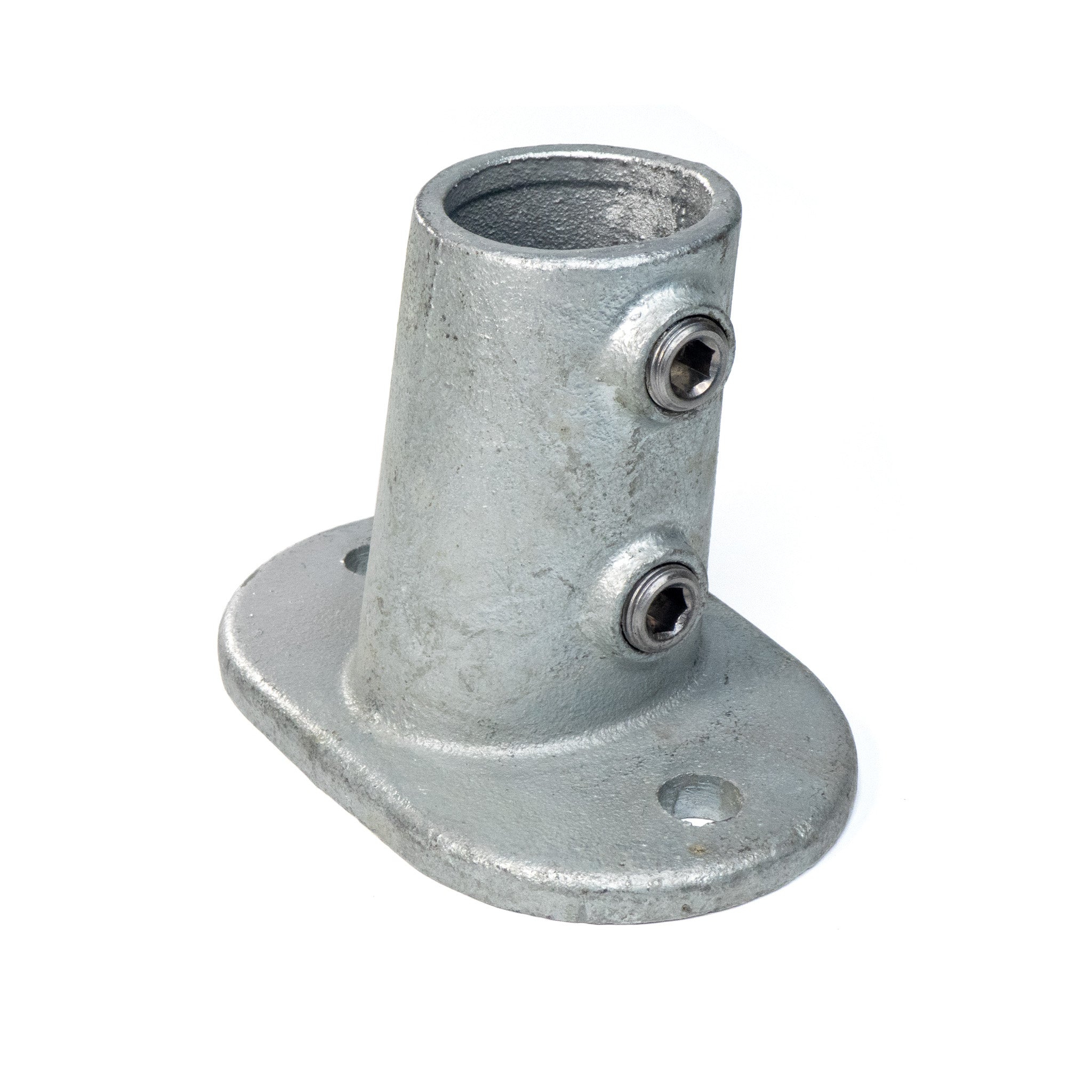

The TC152 joins one tube to the wall or ground. It has a range between 0-13 degrees to accommodate ramps and slopes.
Designed for both indoor and outdoor projects, it features our easy slip-on and tighten connection system which only requires a hex key to secure.
It can be used in pipe structures, railings, racks and furniture.
An alternative fitting would be TC232 Base Flange with spacers or shims on one side.
* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.
* Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
-
Fitting Size Tube Size Tubeclamp Code Kee Klamp Code Outside Diameter Imperial Metric T 21 4 21.3mm ½ 15NB A 27 5 26.9mm ¾ 20NB B 34 6 33.7mm 1 25NB C 42 7 42.4mm 1 ¼ 32NB D 48 8 48.3mm 1 ½ 40NB E 60 9 60.3mm 2 50NB *Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.
-
Product: TubeClamp® fittings Material: Fittings cast of malleable cast iron - galvanized finish
Cast iron fittings or casting to comply with AS 1832 (ISO 5922)
Hot Dipped Galvanized finish to comply with AS 4680Set Screw: Cup Point Case hardened setscrew in 45CR Alloy Steel (alternative* Stainless Steel 308)
Size C42, D48, E60 using 3/8” ISO 228 with 5/16” (8mm) hex key
Size A27, B34 using ¼” ISO 228 with ¼” (6.5mm) hex key
Size T21 using 1/8 BSF with 3/16” (5mm) hex keyFeature: No Welding Slip on Structural Fittings Tensile Load: min 5,650 N axial load subjected to 40Nm tightened torque (FOS 2.0 min) Testing: Internally by Solid Dynamics Engineering Pty Ltd. Testing videos are available upon request Design: Tubeclamp Structural Fittings, when properly installed per manufacturing recommendations, meet or exceed all applicable requirements as specified by Australian Standard Applications: Handrails, Trolley Bays, Temporary Structure, Shop Fittings, Furnitures and many more.
