145 -Side Horizontal Flange

  • Sale
    • Prices ONLINE ONLY and are GST inclusive, Freight calculated at checkout.

     Price for selected size
  • $21.22
    •    ea

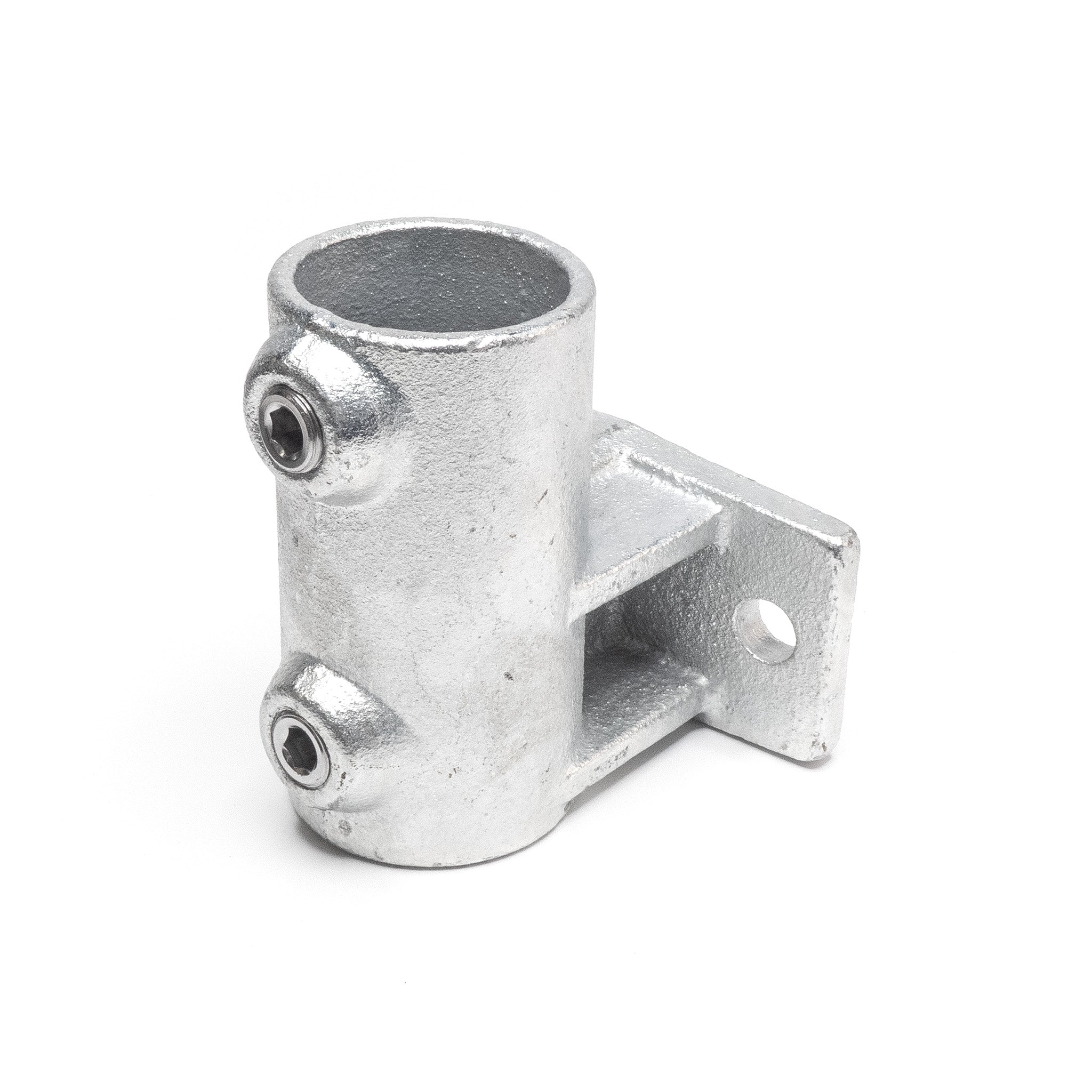

  • TC145 is a side mounting horizontal handrail bracket. The mounting bracket is slightly offset from the fixing surface. The vertical tubes cannot pass through the bottom of the fixing hole. This is usually mounted to a wall.  It can be used as a side wall mounted fitting if there is no solid ground or if the ground is fragile or inadequate for mounting.

    - Alternative to TC144 Side Vertical Flange, TC246 HD Side Flange or TC146 Side Palm Flange






  • Fitting Size
    Tube Size
    Tubeclamp Code Kee Klamp Code Outside Diameter Imperial Metric
    T 21 4 21.3mm ½ 15NB
    A 27 5 26.9mm ¾ 20NB
    B 34 6 33.7mm 1 25NB
    C 42 7 42.4mm 1 ¼ 32NB
    D 48 8 48.3mm 1 ½ 40NB
    E 60 9 60.3mm 2 50NB
  • Product: TubeClamp® fittings
    Material:

    Fittings cast of malleable cast iron - galvanized finish
    Cast iron fittings or casting to comply with AS 1832 (ISO 5922)
    Hot Dipped Galvanized finish to comply with AS 4680
    Set Screw:

    Cup Point Case hardened setscrew in 45CR Alloy Steel (alternative* Stainless Steel 308)
    Size C42, D48, E60 using 3/8” ISO 228 with 5/16” (8mm) hex key
    Size A27, B34 using ¼” ISO 228 with ¼” (6.5mm) hex key
    Size T21 using 1/8 BSF with 3/16” (5mm) hex key
    Feature: No Welding Slip on Structural Fittings
    Tensile Load: min 5,650 N axial load subjected to 40Nm tightened torque (FOS 2.0 min)
    Testing: Internally by Solid Dynamics Engineering Pty Ltd. Testing videos are available upon request
    Design: Tubeclamp Structural Fittings, when properly installed per manufacturing recommendations, meet or exceed all applicable requirements as specified by Australian Standard
    Applications: Handrails, Trolley Bays, Temporary Structure, Shop Fittings, Furnitures and many more.
