136 - Split Tee

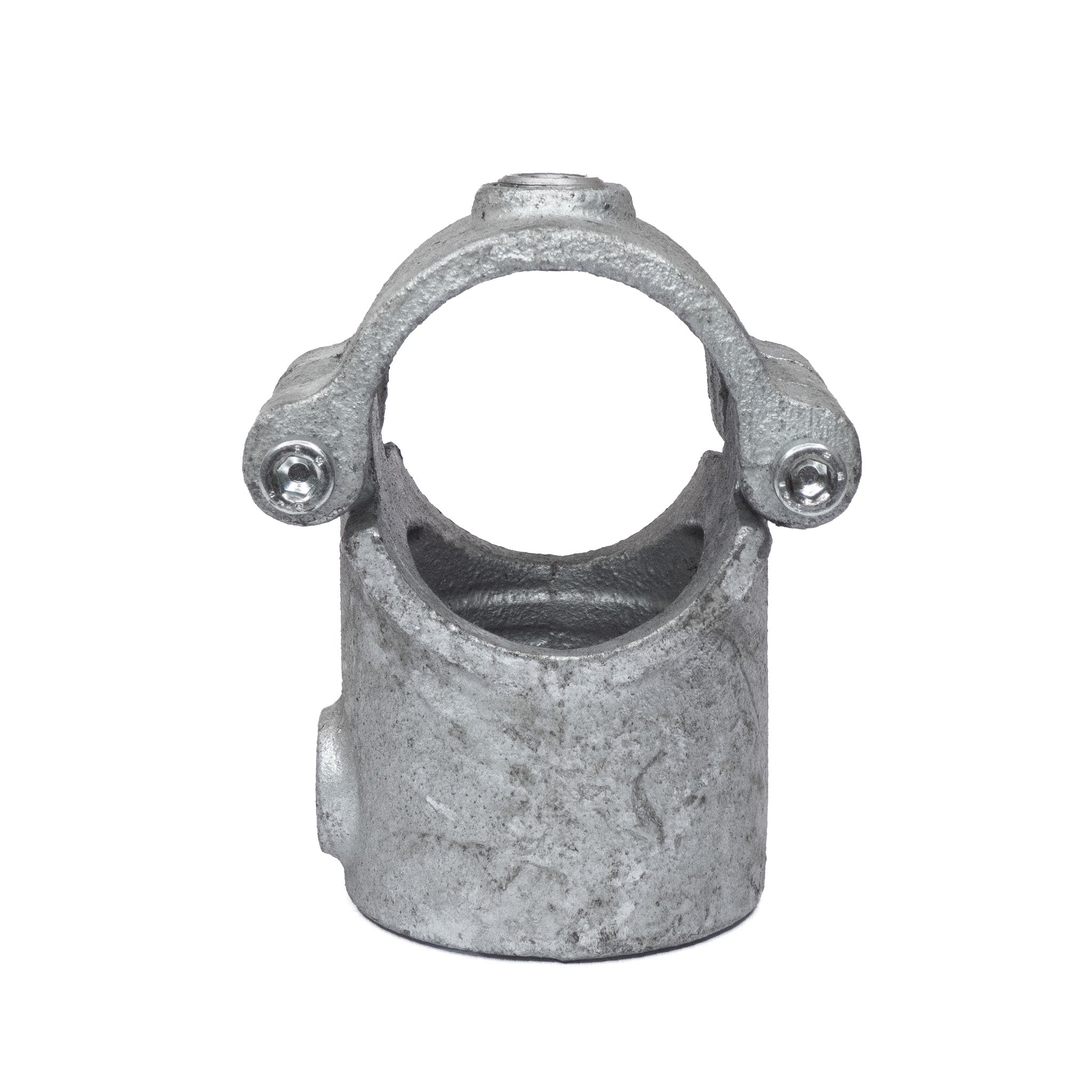

Used to create a fixed 90 degree tee joint by mounting on a preexisting tube structure. Fitting has comparable strength to a standard tee fitting.
Product appearance and finishes may differ by manufacturer and batch. Uniform finishes cannot be guaranteed.
$
39.90

$

136 - Split Tee

$
39.90

$
Used to create a fixed 90 degree tee joint by mounting on a preexisting tube structure. Fitting has comparable strength to a standard tee fitting.
Suits Tube Size
B34 - 34mm OD Pipe C42 - 42mm OD Pipe D48 - 48mm OD Pipe
OD = Outside Diameter | NB = Nominal Bore (hollow core of the tube)*
* May vary based on wall thickness
PAYMENT METHODS ACCEPTED

Bulk Buying Discounts

Purchase in bulk to earn a discounted price.*

*Discount will be applied automatically to your cart.

Minimum Qty

Discount
Buy 10+
5% Off
Buy 20+
10% Off
Buy 30+
15% Off
Buy 40+
18% Off
Buy 50+
22% Off
Details
expand_less
expand_more

The TC136 Split Tee fitting joins two tubes into a tee joint. It is used to efficiently clip new tubing over existing structures so you do not have to restructure, or dismantle them. It is a quick and fast solution and will save your time. It has the same strength and functions comparably to TC101 Short Tee fittings. The TC136 does not join crosses or overlapping tubes.

Designed for both indoor and outdoor projects, it features our easy slip-on and tighten connection system which only requires a hex key to secure. Alternative to TC135 Clamp on Tee or TC136YD Add on Tee & Cross

Common Usage

We commonly see this fitting used in tube structures. Specially it is primarily used to build onto existing structures where dismantling part or whole of the structure is not an option.

It can be used to join tubes at any angle perpendicular to the structure it is connected to. For example attaching sign posts to a trolley bay, or attaching additional shelves to a existing clothes rack.

Technical Information
expand_less
expand_more
Material:
Fittings cast of malleable cast iron - galvanized finish

Cast iron fittings or casting to comply with AS 1832 (ISO 5922)

Hot Dipped Galvanized finish to comply with AS 4680.


Set Screw:

Cup Point Case hardened setscrew in 45CR Alloy Steel (alternative* Stainless Steel 308)

Size C42, D48, E60 using 3/8” ISO 228 with 5/16” (8mm) hex key

Size A27, B34 using ¼” ISO 228 with ¼” (6.5mm) hex key

Size T21 using 1/8 BSF with 3/16” (5mm) hex key.


Feature:
No welding required. Structural fittings slip directly onto bar and are secured using an allen key to tightened provided setscrews.

Tensile Load:
Min 5,650 N axial load subjected to 40Nm tightened torque (FOS 2.0 min).

Testing:
Tested internally by Solid Dynamics Engineering Pty Ltd. Testing videos are available upon request.

Design:
Tubeclamp Structural Fittings, when properly installed per manufacturing recommendations, meet or exceed all applicable requirements as specified by Australian Standard.

Application:
Handrails, Trolley Bays, Temporary Structure, Shop Fittings, Furnitures and many more.
Size Guide
expand_less
expand_more

Please note that not all sizes are available for every product.

Tube Size Reference Chart

 Fitting Size Code

Outside Diameter

NB (Metric)

NB (Imperial)
T21
21.3mm
15
1/2"
A27
26.9mm
20
3/4"
B34
33.7mm
25
1"
C42
42.4mm
32
1 1/4"
D48
48.3mm
40
1 1/2"
E60
60.3mm
50
2"
SHS25
25 x 25mm
N/A
N/A
SHS40
40 x 40mm
N/A
N/A
G50
50mm (Alu)
N/A
N/A
*Figures given as guidance only, dimensions and weights are subject to manufacturing tolerances and may be altered without prior notice.
Tube OD / NB Diagram
Product FAQ
expand_less
expand_more

Which fitting size do I chose?

We offer fittings in various sizes that meet Australian standards, ranging from 21mm to 60mm.

To select the right fitting, measure the outside diameter (OD) of your pipe and choose the corresponding size. For example, a pipe with a 48mm OD requires a D48 fitting.

We also provide fittings for 50mm aluminium tubes and 25 x 25 or 40 x 40mm square hollow section steel bar.

Metric or Imperial?

You'll see a table that compares various international measurements in the 'Size Guide' section above.

Why is the fitting bigger then my tube?

Our fittings are intentionally made slightly larger than the pipes they correspond to, so that they can easily slide onto both straight and bent bars. If you're worried that the gap might be too big, you can try replacing the grubscrews/setscrews with longer ones.

What are your fittings made from?

Our Tubeclamp fittings are made from Galvanised Steel. Alternatively you can check out of range of Aluminium fittings, or consider having your fittings powder coated.

Where can i find size specifications for each fitting?

You can easily locate size diagrams for most fittings in the example images provided for each product. These diagrams provide approximate measurements for each fitting size.
Installation Guide
expand_less
expand_more

Basic Install Guide for Tubeclamp Fittings

Illustration of a box in front of a globe

Australia Wide Shipping

You can choose to pick up your order from one of our stores or have it delivered anywhere in Australia. Orders placed before 10 AM on weekdays ship the same day; those after 10 AM or on public holidays will be sent the next business day.
Illustration of a box with a 'return' arrow in front

Our Return Policy

Tubeclamp allows returns of unused items in good condition within 5 days of purchase, but a handling or restocking fee of up to 20% may apply. Customers can exchange returned items for similar value products, though some items like cut bars or modified products may not be returnable.

Skip welding and bending.

Tubeclamp fittings features our easy slip-on and tighten connection system which only requires an allen key, or hexbit to secure.This means you can avoid the hassle of welding or the high costs (and trial and error) of tube bending.
Black painted tube coat racks with clothes on display
Black painted tube fittings and bar with clothes on display and hanging from racks.

A completely modular system.

Tubeclamp fittings are fully modular and can be used in countless ways, including for handrails, guardrails, furniture, shelving, trolleys, carts, scaffolding, fencing, shade cloth systems, garden enclosures, and so much more.

Additionally, since they don't need welding for installation, you can easily take apart or uninstall your setup to repurpose the fittings for another project.

Built to last and engineered for strength.

Tubeclamp fittings are galvanised for durability and will last for years even when exposed to the elements. In addition, being forged from ductile cast iron our fittings are designed tested  and in-house to support upwards of 5,650N (575kg).

Our fittings comply with Australian Standards AS 1832 (ISO 5922), and AS 4680.
Galvanised steel tube fitting flanges on a blue cuttingboard
Blue painted tube fittings on a work table.

Charmingly Stylish.

Tubeclamp fittings and tubes have a simple yet attractive look. When you buy Tubeclamp Fittings or tubes, they come with a Galvanised Steel protective finish.

However, to cater to a range of modern and traditional styles, we offer the option of sticking with the classic look or paying a bit extra to have your order powdercoated in a variety of contemporary colors of your choice.Choose from any colour from the Dulux Powder Coating range.
