TC 134 - Ground Socket TubeClamp Fitting by Solid Dynamics Australia
TC 134 - Ground Socket TubeClamp Fitting by Solid Dynamics Australia
TC 134 - Ground Socket TubeClamp Fitting by Solid Dynamics Australia
TC 134 - Ground Socket TubeClamp Fitting by Solid Dynamics Australia

134 - Ground Socket

  • Sale
    • Prices ONLINE ONLY and are GST inclusive, Freight calculated at checkout.

     Price for selected size
  • $61.52
    •
  • $66.51
    • ea

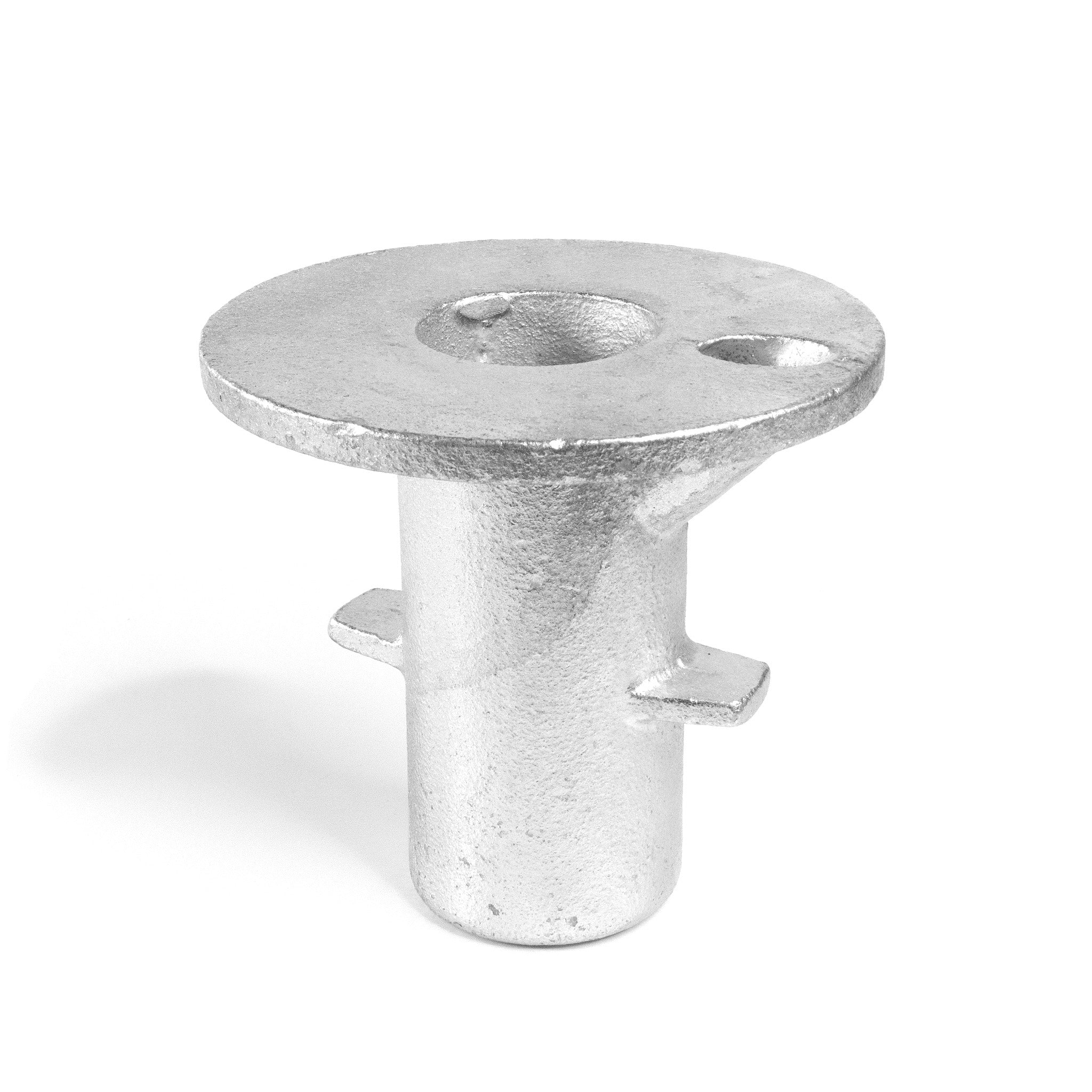

  • This fitting secures a vertical tube into the ground. This design enables temporarily or casual installation without exposing the base fitting above ground level.

    It is intended to be used by placing the fitting into a hole and filling the hole with concrete. The base of the fitting will then be hidden from sight below the ground.



    * Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

    * Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.


  • Fitting Size
    Tube Size
    Tubeclamp Code Kee Klamp Code Outside Diameter Imperial Metric
    T 21 4 21.3mm ½ 15NB
    A 27 5 26.9mm ¾ 20NB
    B 34 6 33.7mm 1 25NB
    C 42 7 42.4mm 1 ¼ 32NB
    D 48 8 48.3mm 1 ½ 40NB
    E 60 9 60.3mm 2 50NB

    *Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

  • Product: TubeClamp® fittings
    Material:

    Fittings cast of malleable cast iron - galvanized finish
    Cast iron fittings or casting to comply with AS 1832 (ISO 5922)
    Hot Dipped Galvanized finish to comply with AS 4680
    Set Screw:

    Cup Point Case hardened setscrew in 45CR Alloy Steel (alternative* Stainless Steel 308)
    Size C42, D48, E60 using 3/8” ISO 228 with 5/16” (8mm) hex key
    Size A27, B34 using ¼” ISO 228 with ¼” (6.5mm) hex key
    Size T21 using 1/8 BSF with 3/16” (5mm) hex key
    Feature: No Welding Slip on Structural Fittings
    Tensile Load: min 5,650 N axial load subjected to 40Nm tightened torque (FOS 2.0 min)
    Testing: Internally by Solid Dynamics Engineering Pty Ltd. Testing videos are available upon request
    Design: Tubeclamp Structural Fittings, when properly installed per manufacturing recommendations, meet or exceed all applicable requirements as specified by Australian Standard
    Applications: Handrails, Trolley Bays, Temporary Structure, Shop Fittings, Furnitures and many more.
