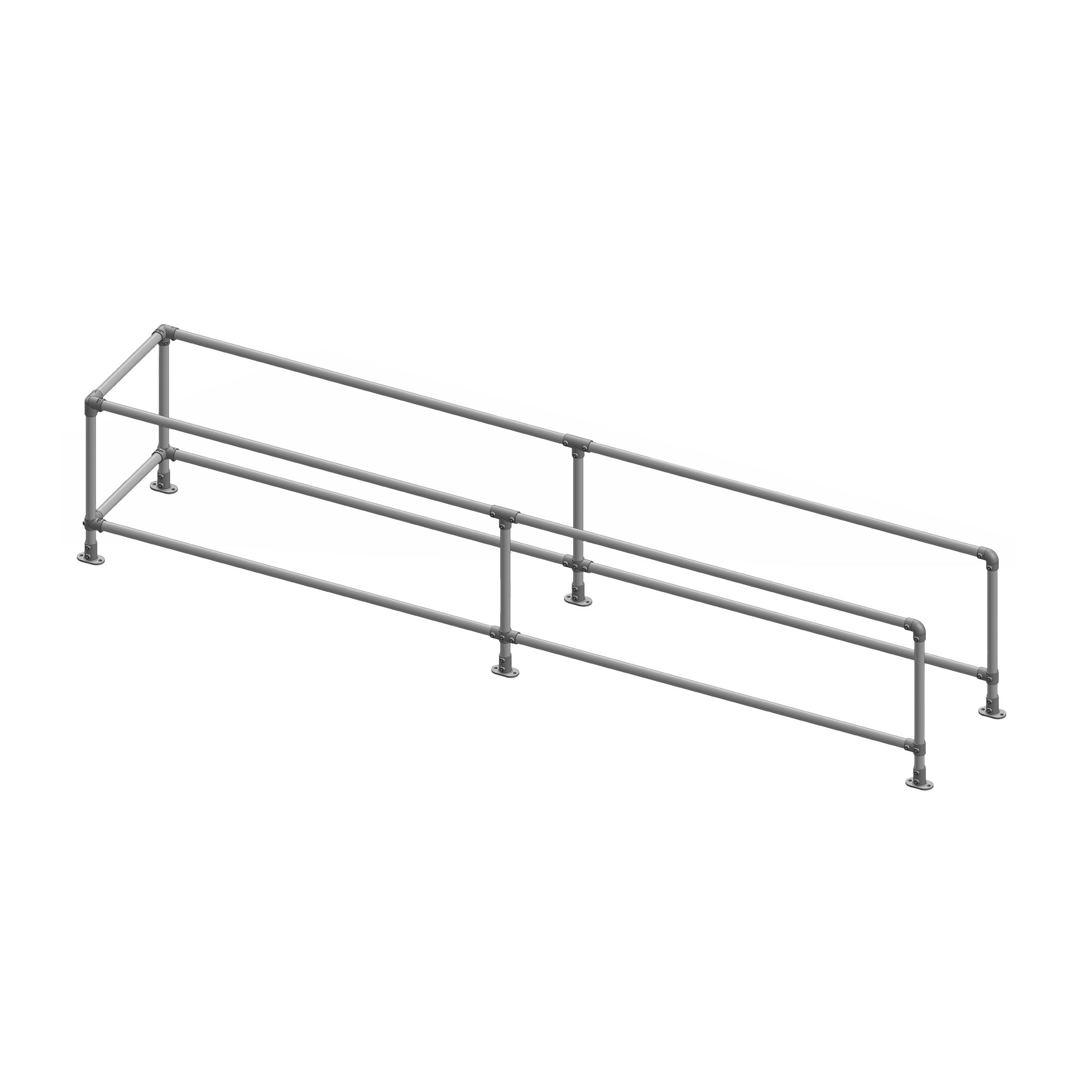

Name: TB K - Modular Trolley Bay Kit (4.5m / 9.0m Long)
Brand: Tubeclamp AU
SKU: TB 1S 45
Price: 844.99 AUD
Availability: InStock

TB K - Modular Trolley Bay Kit (4.5m / 9.0m Long)

Product appearance and finishes may differ by manufacturer and batch. Uniform finishes cannot be guaranteed.

844.99

TB K - Modular Trolley Bay Kit (4.5m / 9.0m Long)

844.99

Length

4.5m Long One Side 9.0m Long Back To Back

Lanes

Single Lane (0.7m Wide) Double Lane (1.5m Wide) Triple Lane (2.3m Wide) Triple Lane (2.3m Wide) Open- 4.5m Only

Sign Post

No Sign Inc. Sign

OD = Outside Diameter | NB = Nominal Bore (hollow core of the tube)*
* May vary based on wall thickness

PAYMENT METHODS ACCEPTED

Details

Tubeclamp® Modular Trolley Bay - made from galvanised Tubeclamp® fittings and steel tube. Tubeclamp® trolley bays could be installed by a normal tradesman and without any welding on site.

Advantages of using Tubeclamp® modular trolley bay Kits:

Streamline your ordering process and get your installation done quickly with same day or next day availability.
Customize your order effortlessly to meet your specific requirements, saving you time and eliminating any hassle.
Easy to transport (supplied in pre-cut length and boxes)
Assembly is a breeze with no welding required on-site. Simply slip on the fittings and tighten them in place.
Fully adjusted on-site (Cut on-site to customise the installation to suit site condition)
Trust in the strength and durability of Tubeclamp® fittings, which have a shear strength capacity of 5850N or 595kg (FOS 2 min).
Experience minimal to no maintenance with our products, ensuring that your installation remains in top condition.
If the trolley bay gets damaged: you only have to replace the damaged section (not the whole structure)

* Signage not included.

* If you would like your trolley bays to be cut to a specific size or dimension not listed here, please include the required dimensions in the "Special Instructions" section at the Shopping Cart. For additional bays or any other larger change please contact our sales team directly for a customised quote.

Trolley Bay Dimension:

Each lane is 0.7m wide clearance (0.8m wide with posts) and each post is 0.9m high. Each trolley bay is 4.5m long (9m for mirrored / Front Back bays)
Please specify the length if a shorter dimension is required
Post to be secured with medium-duty concrete fasteners M12 (sold separately)
All pipe is 48mm OD / 40NB Pipe

Shipping:

Ready to despatch 1 business day from our Sydney / Melbourne warehouse.
Flatpack in pallet – ready for assembly

Available in the galvanised finish only (for powdercoating options contact our sales team directly for a quote).

Size Guide

Please note that not all sizes are available for every product.

Tube Size Reference Chart

Fitting Size Code

Outside Diameter

NB (Metric)

NB (Imperial)

T21	21.3mm	15	1/2"
A27	26.9mm	20	3/4"
B34	33.7mm	25	1"
C42	42.4mm	32	1 1/4"
D48	48.3mm	40	1 1/2"
E60	60.3mm	50	2"
SHS25	25 x 25mm	N/A	N/A
SHS40	40 x 40mm	N/A	N/A
G50	50mm (Alu)	N/A	N/A

*Figures given as guidance only, dimensions and weights are subject to manufacturing tolerances and may be altered without prior notice.

Australia Wide Shipping

You can choose to pick up your order from one of our stores or have it delivered anywhere in Australia. Orders placed before 10 AM on weekdays ship the same day; those after 10 AM or on public holidays will be sent the next business day.

Our Return Policy

Tubeclamp allows returns of unused items in good condition within 5 days of purchase, but a handling or restocking fee of up to 20% may apply. Customers can exchange returned items for similar value products, though some items like cut bars or modified products may not be returnable.

Skip welding and bending.

Tubeclamp fittings features our easy slip-on and tighten connection system which only requires an allen key, or hexbit to secure.This means you can avoid the hassle of welding or the high costs (and trial and error) of tube bending.

Black painted tube coat racks with clothes on display

Black painted tube fittings and bar with clothes on display and hanging from racks.

A completely modular system.

Tubeclamp fittings are fully modular and can be used in countless ways, including for handrails, guardrails, furniture, shelving, trolleys, carts, scaffolding, fencing, shade cloth systems, garden enclosures, and so much more.

Additionally, since they don't need welding for installation, you can easily take apart or uninstall your setup to repurpose the fittings for another project.

Built to last and engineered for strength.

Tubeclamp fittings are galvanised for durability and will last for years even when exposed to the elements. In addition, being forged from ductile cast iron our fittings are designed tested and in-house to support upwards of 5,650N (575kg).

Our fittings comply with Australian Standards AS 1832 (ISO 5922), and AS 4680.

Colour painted steel play and sports equipment in a background

Blue painted tube fittings on a work table.

Charmingly Stylish.

Tubeclamp fittings and tubes have a simple yet attractive look. When you buy Tubeclamp Fittings or tubes, they come with a Galvanised Steel protective finish.

However, to cater to a range of modern and traditional styles, we offer the option of sticking with the classic look or paying a bit extra to have your order powdercoated in a variety of contemporary colors of your choice.Choose from any colour from the Dulux Powder Coating range.
