lc184

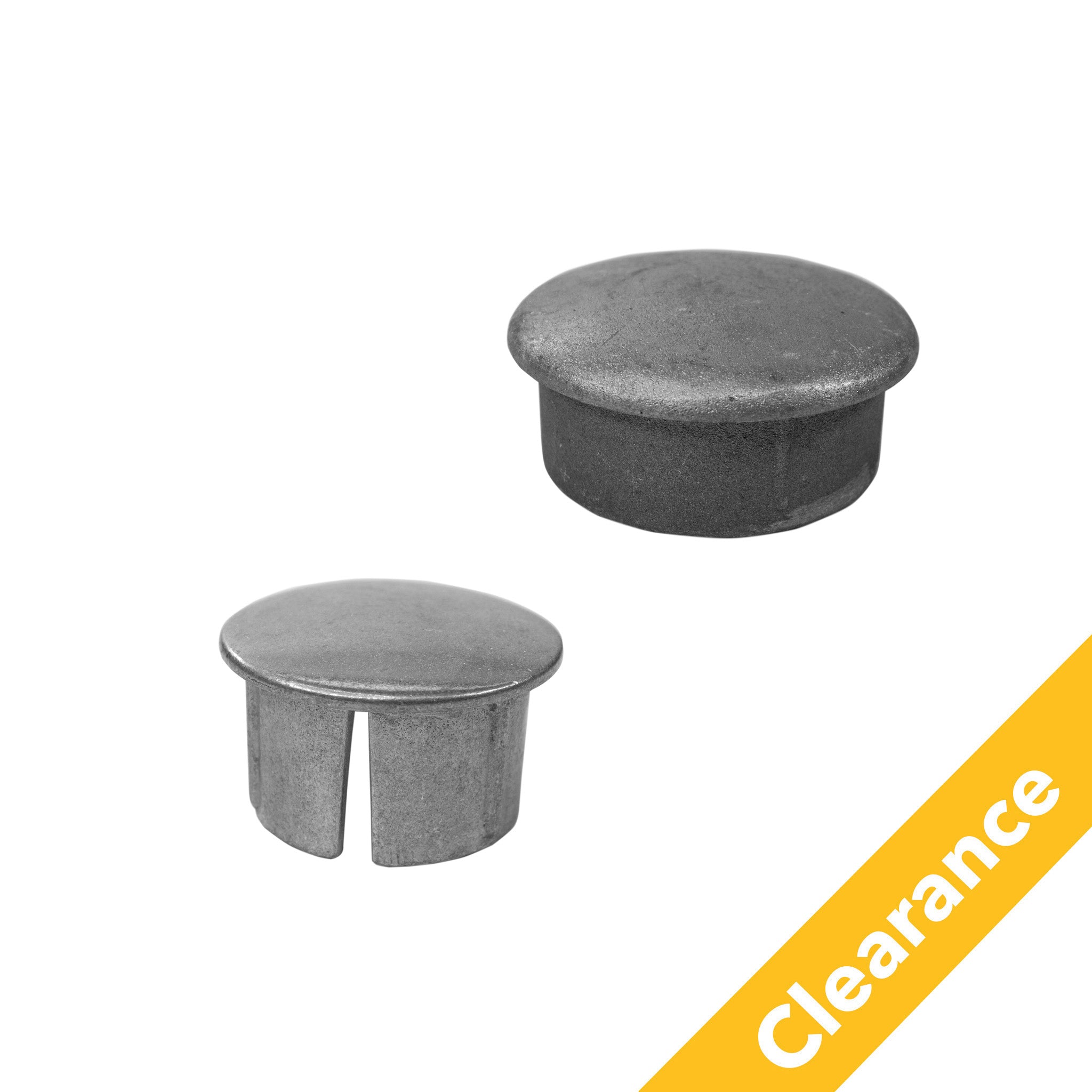

184 Aluminium Internal End Cap

$
7.90

$
Size
B25NB 1" (34mm OD)
C32NB 1 1/4" (42mm OD)
D40NB 1 1/2" (48mm OD)
E50NB (60.3 2" OD)
PAYMENT METHODS ACCEPTED
Details
expand_less
expand_more
An aluminium piece used to cover the exposed ends of tubes. Easy to install, just push the end cap into the end of the tube. We have different size fittings available for tube sizes.
Technical Information
expand_less
expand_more
Material:
Lightweight high strength Aluminium-Magnesium Alloy A535


Set Screw:
Forged internal/external knurled cup point set screw with class 3A threads 6mm with 5mm hex (allen) socket key

Feature:

Corrosion Resistance

Permanent shinny surface

Low Maintenance


Tensile Load:
Up to 185kg (with FOS 1.5 min)

Testing:
Tested internally by Solid Dynamics Engineering Pty Ltd. Testing videos are available upon request.

Application:
Handrails, Trolley Bays, Temporary Structure, Shop Fittings, Furnitures and many more.
Size Guide
expand_less
expand_more

Fitting Size

Tube Size

Tubeclamp Code

Outside Diameter

Imperial

Metric

T21
21.3mm / 0.84"
1/2
15NB
A27
26.9mm / 1.05"
3/4
20NB
B34
33.7mm / 1.315"
1
25NB
C42
42.4mm / 1.66"
1 1/4
32NB
D48
48.3mm / 1.9"
1 1/2
40NB
E60
60.3mm / 2.375"
2
50NB

*Figures given as guidance only, dimensions and weights are subject to manufacturing tolerances and may be altered without prior notice.

Australia Wide Shipping

You can choose between picking up your order from the store or getting it delivered to your doorstep anywhere in Australia. If you place your order before 10am from Monday to Friday, we'll make sure to dispatch it on the same day. For orders placed after this time or on public holidays, we'll dispatch them on the next working day.

Our Return Policy

Tubeclamp allows customers to return unused products in good condition within 5 days of purchase. However, please note that there may be a handling/restocking fee of up to twenty (20%) of the invoice value for returns. Alternatively, Tubeclamp also offers the option to exchange returned items for products of similar value. Please keep in mind that certain items, such as cut bars or altered/modified products, may not be eligible for return.

For further information, please feel free to contact us directly.
Floating lc104 & lc119

LITECLAMP ALUMINIUM FITTINGS

NO WELD, LIGHTWEIGHT, CORROSION RESISTANT TUBE FITTINGS

Frequently Asked Questions

Which fitting size do i chose?

We offer fittings in six different sizes according to Australian standard pipe sizes, ranging from 21mm to 60mm. To select the right fitting, simply measure the outside diameter (OD) of your pipe and choose the corresponding fitting size.

For example, if your pipe has a 48mm outside diameter, you would select the D48 fitting size.

Metric or Imperial?

You'll see a table that compares various international measurements in the 'Size Guide' section below the product details at the top of this page.

Why is the fitting bigger then my tube?

Our fittings are intentionally made slightly larger than the pipes they correspond to, so that they can easily slide onto both straight and bent bars. If you're worried that the gap might be too big, you can try replacing the grubscrews/setscrews with longer ones.

What are your fittings made from?

Our Liteclamp range is made from a high strength Aluminium-Magnesum Alloy. Alternatively if you need a a stronger, less costly option you can try our Tubeclamp galvanised steel fittings.

Where can i find size specifications for each fitting?

You can easily locate size diagrams for most fittings in the example images provided for each product. These diagrams provide approximate measurements for each fitting size.
