Variations in appearance may occur due to different manufacturers and batches, but functionality remains consistent across all products.

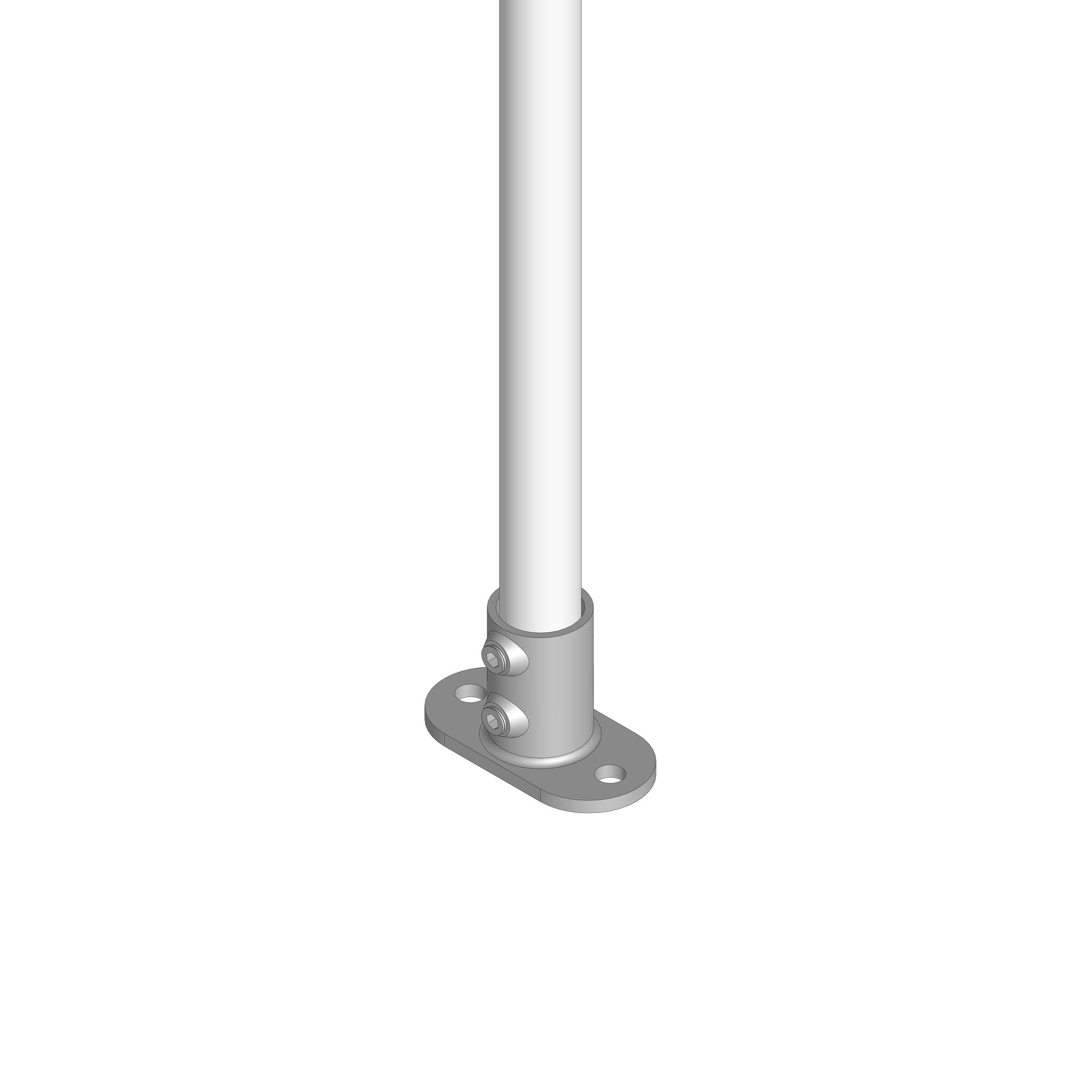

HRP132 - Standard Base Flange Handrail Stanchion with Vertical Tube Only

Product Coming Soon. Contact us for details.
Pipe Size
C42 (32/1.25")NB D48 (40/1.50")NB
Height of Post
0900mm high 1000mm high 1100mm high
Kickrail Attachment
Plain - No Lug bracket With KickRail Lug Bracket
Tubeclamp Railing Kits are intended to be used to customise the top of one (1) stanchion post per kit. To create a full Handrailing you would combine multiple kits together based on the size and needs of your build. We suggest you read through our Handrail Product FAQ or our Handrail Product Guides (found here) for recommendations regarding rail span and other important information.

For more information on how our kits work click here or scroll down.

Each Railing Kit contains the following:

1 x Top rail fitting of your choice (Post Type)
Grubscrews/Setscrews for each fitting
Fixing screws where neccesary ( DDA Swivel Tees & Wall Assist Brackets)
* Optional 1 x 2nd / Mid Rail Fitting
* Optional 1 x 3rd / Bottom Rail Fitting

Tube, as well as Base Post Kits, is sold separately.


Additional Products

Finish Your Railing

Find below products you may require to complete your railing. From Fittings to mount Kickplates, to Base Posts, Tube Bends and more.
Masonry Screws
J Bend and Double Bend
Base Post with screws
Tube stack

Tubeclamp's Customisable Railing Kits

How does it work?

Staircase Angle

1 . Determine Your Slope

Intermediate Post Example

2 . Choose Your
Post Type

End Post with numbered rails

3. Customise Your
Rails + Tube Size

Base post with accessories

4. Pair With Base Posts and/or Accessories

Tubeclamp offers a wide range of convenient and versatile Railing Kits that provide an unmatched solution for constructing strong and scalable hand railings, barriers, or guardrails. These modular kits eliminate the need for specialized tools or complex welding. The fittings easily slide onto the tube and are securely fastened using the provided setscrews, which can be tightened with either an Allen Key or Hexbit Drillbit.


To get started with your railing project, begin by selecting the gradient/slope option that best suits your specific site requirements. Then, personalize your kit by choosing the desired Tube Size, the type of post you need (Intermediate, End, Corner, or T Junction), and the number of rails you'll require. Please note that not all options are available for every combination of types and fittings.


Once you have made these selections, complement your kit by choosing from our range of optional extras. These include Vertical Stanchion Posts with customizable Base Fittings (screws included), Fittings for installing Kickplates, Tubebends like J Bends, and options for horizontal Tube to connect your posts.


All our Fittings and Tubes are crafted from galvanized steel, ensuring exceptional durability and longevity. If desired, we also offer powder coating options upon request.


Please keep in mind that our Railing Kits include steel Tube Fittings and Setscrews only. Tube for stanchions and horizontal posts are sold separately.

Post Types

Intermediate Post sketch
Intermediate
Standard Middle Post
End Post sketch
End
Smoothly Ends the Railing
Corner Post sketch
Corner
Connects two Railings at an angle
T Junction Posketcht
T Junction
Connects 3 Railings together

Frequently Asked Questions

Is the tube included with this product?
remove
add
Our Railing kits don't include bar tube. You have the option to purchase one of our Base Post Kits (which includes Base Flange fittings and vertical tube), buy tube lengths for horizontal rails from our Bar Tube range, or source your bar from a local supplier.
Why is the size of the fitting larger than my tube?
remove
add
Our fittings are intentionally designed to have a slightly larger size than the pipes they are meant to fit, enabling them to easily slide onto both straight and curved bars.
What are your fittings made from?
remove
add
Our Tubeclamp fittings are made from Galvanised Steel. Alternatively you can check out of range of Aluminium fittings, or consider having your fittings powder coated.
Do your handrail Kits meet the Australian Safety Standards?
remove
add

Tubeclamp Structural Fittings have been designed and tested to comply with the requirements of Australian Standards AS 1657:2018 for handrails. Our products are suitable for use in temporary and/or permanent structures.


For more information please refer to the Tubeclamp product guidelines found here.

Where can I find a more detailed guide on installing handrails?
remove
add
You can easily access our free Handrail and Disability Handrail guidebooks right here, or simply navigate to our Specials & Guides tab in the menu at the top of our website.
Are fixings/screws included with this product?
remove
add
Our Base Post Kits do not include screws or bolts for ground installation. The grub screws required for fixing the tube in place however is always included. If you require screws/bolts we do have a limited selection on offer.
Does this product include Bases or Vertical Posts?
remove
add

No, due to the complexity of Bases and fixing requirements our Handrail Fitting Kits do not include Bases or Vertical Posts.


However we do offer Base Post Kits to complement your Handrailing Kits which contain your choice of Base as well as Vertical Tube Posts and Masonry Screws for fixing.

Are your products weather resistant?
remove
add

Our Handrail Fittings and Tube are made from Hot Dipped Galvanised Steel making them strong and long lasting in most environments. Our products are weather resistant and can be used outdoors for years without issue.


It is important to understand that all steel products will eventually corrode when exposed to outdoor conditions, particularly in regions with high moisture or persistant contact with salt water.

What is the difference between using C42 and D48 sized bar for handrails?
remove
add

The distinction between the two tube sizes is primarily determined by the intended application and the environment in which the handrail is being constructed.


C42 is suitable for the majority of residential or indoor commercial purposes. Its smaller size makes it lighter (ideal for wall mounting) and easier to grip for smaller hands. However, this size may bend more when installed with wider spaced posts. Disability handrails are typically constructed using C42 sized Fittings and Tube.


D48 Fittings and Tube are sturdier and more rigid, allowing support posts to be positioned further apart. They are generally more resistant to external forces and wear. This handrail size is commonly utilized in car parks, commercial areas, or industrial settings.

How much space should I leave between my posts?
remove
add

The maximum spacing for handrails is up to 2 meters, and 1.5m for stairs (up 6 steps apart). However we recommend reducing the distance between posts to increase the regidity and strength of your handrail.


The maximum distance between vertical posts for Disability handrailings should be no large than 1.5m.

Do i need more horizontal rails?
remove
add

The strength of a handrail typically increases with the number of horizontal rails it has, but the number of rails needed can vary depending on the specific use.


Single-rail handrails are commonly used in residential properties to provide adequate support for walking on ramps and stairs.


In residential, commercial, and industrial settings, two-rail handrails are the most popular choice due to their balance of strength and cost effectiveness. They are also ideal for ensuring accessibility for children and individuals in wheelchairs.


Triple-rail handrails are typically found in pedestrian walkways or roadside barriers in high traffic areas, providing additional protection and safety measures.

When do I need to use Toe-boards/Kick-boards?
remove
add
Toe-boards are necessary when building disability handrails that are not next to a wall. They can also be used on raised walkways to keep objects from falling over the edge.
How tall do you recommend i build my handrail?
remove
add

Typically we recommend a handrail has a height between 900mm and 1100mm, ideally this height should be consistant across the entire handrail.


Disability handrails should be no shorter than 865mm, nor taller than 1000mm.


If mid-rails are installed then the inside distance between the top-rail and mid-rail should be no more than 450mm apart. The distance between the mid-rail and the ground should also be no more than 560mm apart.


Handrails for stairs are the same height as regular handrails relative to the step height rather than to the ground.

What is the difference between Industrial and DDA Disability Handrails?
remove
add

Industrial handrails are designed to provide maximum strength and do not require a smooth top-rail. This type of handrail is best suited to low foot traffic industrial areas such as factories.


Disability handrails are required by Australia standards to contain a smooth top-rail (with no produding elements are holes where little fingers may get caught) with extensions of more than 300mm on both ends.


Industrial handrails do not require toe-boards while Disability railings do (when a wall is not present).


Disability handrails must be between 865mm to 1000mm tall.
