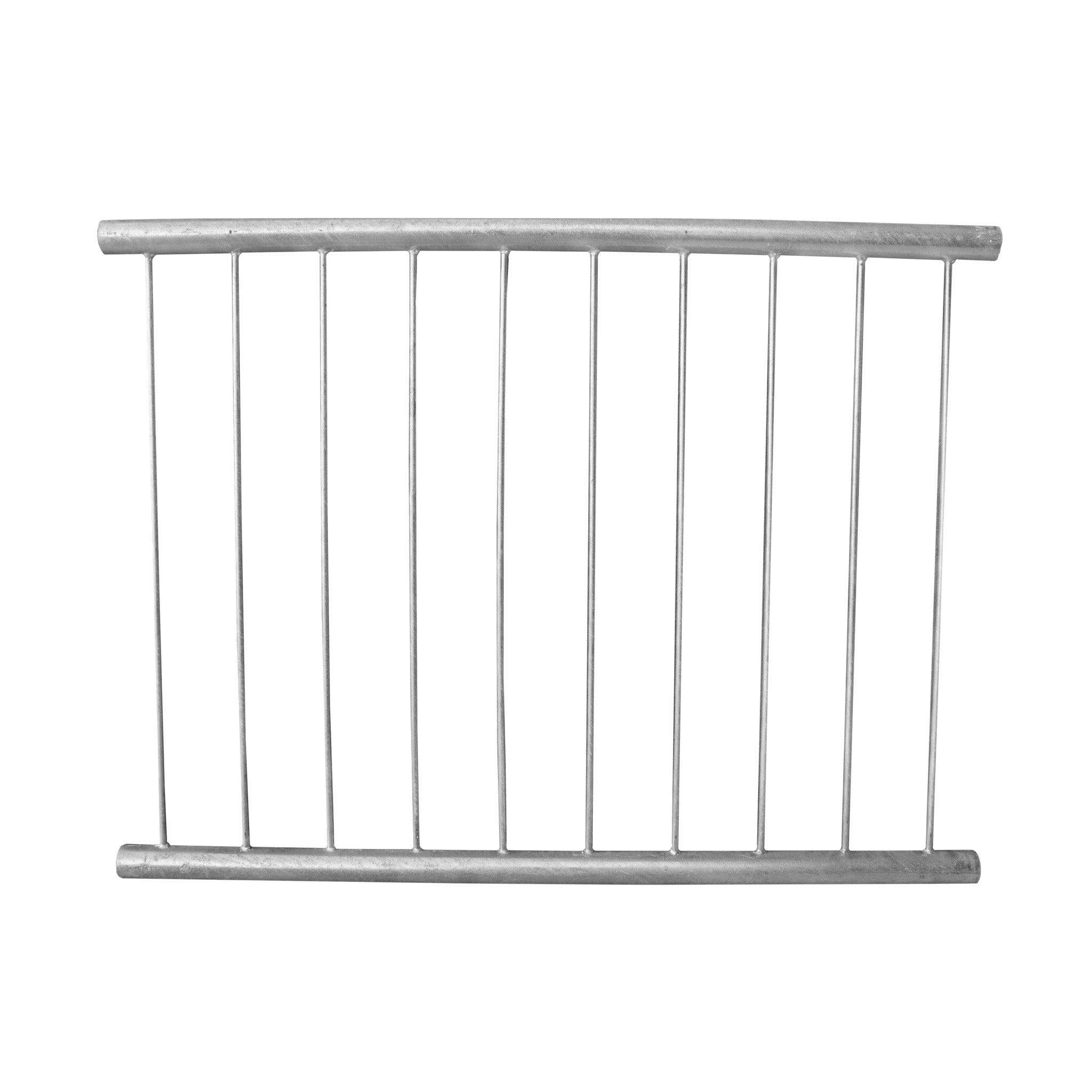

We supply a range heavy duty safety barrier panels. Panels come in both 32NB and 40NB tubing, with welded rods covering the span.
Using the Tubeclamp fittings together with the posts, panels, end termination sections and rails, safety systems are very quick to assemble - require no specialist equipment or vast technical expertise.
The simplicity of the entire system means faster and less expensive assembly making the total installed cost way less than traditional fabrication methods. Products can be delivered and installed within days!
* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.
* Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
-
Fitting Size Tube Size Tubeclamp Code Kee Klamp Code Outside Diameter Imperial Metric T 21 4 21.3mm ½ 15NB A 27 5 26.9mm ¾ 20NB B 34 6 33.7mm 1 25NB C 42 7 42.4mm 1 ¼ 32NB D 48 8 48.3mm 1 ½ 40NB E 60 9 60.3mm 2 50NB *Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.
-
Product: TubeClamp® fittings Material: Fittings cast of malleable cast iron - galvanized finish
Cast iron fittings or casting to comply with AS 1832 (ISO 5922)
Hot Dipped Galvanized finish to comply with AS 4680Set Screw: Cup Point Case hardened setscrew in 45CR Alloy Steel (alternative* Stainless Steel 308)
Size C42, D48, E60 using 3/8” ISO 228 with 5/16” (8mm) hex key
Size A27, B34 using ¼” ISO 228 with ¼” (6.5mm) hex key
Size T21 using 1/8 BSF with 3/16” (5mm) hex keyFeature: No Welding Slip on Structural Fittings Tensile Load: min 5,650 N axial load subjected to 40Nm tightened torque (FOS 2.0 min) Testing: Internally by Solid Dynamics Engineering Pty Ltd. Testing videos are available upon request Design: Tubeclamp Structural Fittings, when properly installed per manufacturing recommendations, meet or exceed all applicable requirements as specified by Australian Standard Applications: Handrails, Trolley Bays, Temporary Structure, Shop Fittings, Furnitures and many more.
