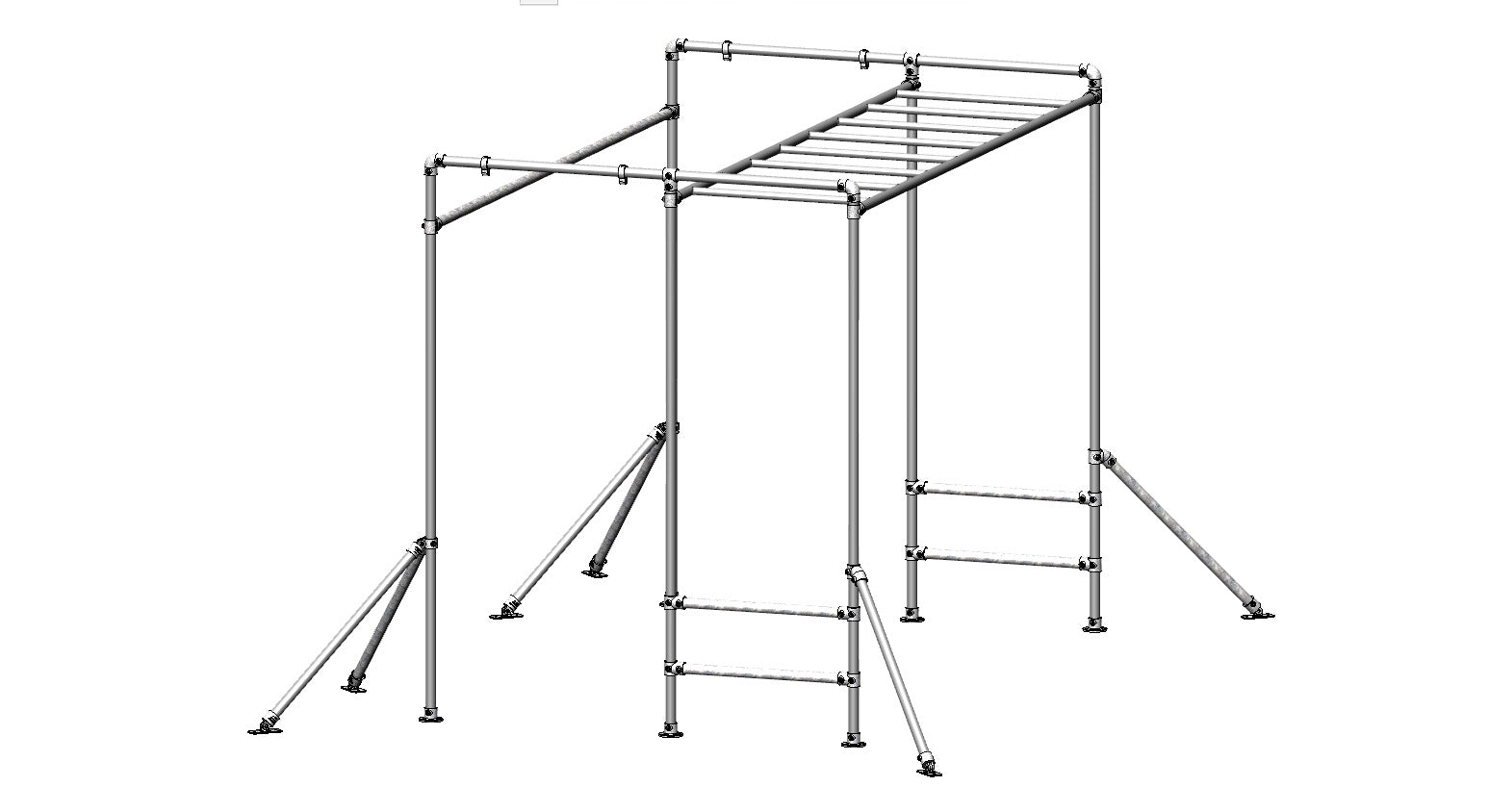

Double frames at each end make this structure perfect for the extended family. This solid and durable structure is strong enough to take anything you can throw at it.
Height adjustable and can take an individual load of 150kg. Weather proof, low maintenance and suitable for modifying in the future.
- Easy to construct
- Strong and sturdy
- Built to last
- Extendable, add accessories or extend the structure
- LayBuy and ZipPay available (By request only and subject to approval
Assembled size footprint:
L: 4560mm x W: 3520mm (approx)
Main structure dimensions
L: 2850mm x W: 1800mm x H: 2300mm
Designed for both indoor and outdoor projects. Featuring our easy slip-on and tighten connection system which only requires a hex key to secure, making it simple to assemble.
*Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.
Fittings cast of malleable cast iron - galvanized finish
Cup Point Case hardened setscrew in 45CR Alloy Steel (alternative* Stainless Steel 308)
|Feature:||No Welding Slip on Structural Fittings|
|Tensile Load:||min 5,650 N axial load subjected to 40Nm tightened torque (FOS 2.0 min)|
|Testing:||Internally by Solid Dynamics Engineering Pty Ltd. Testing videos are available upon request|
|Design:||Tubeclamp Structural Fittings, when properly installed per manufacturing recommendations, meet or exceed all applicable requirements as specified by Australian Standard|
|Applications:||Handrails, Trolley Bays, Temporary Structure, Shop Fittings, Furnitures and many more.|
