Parkour Fitness NewGuinea 8015

  • Sale
  • Regular price $1,684.39
Tax included.

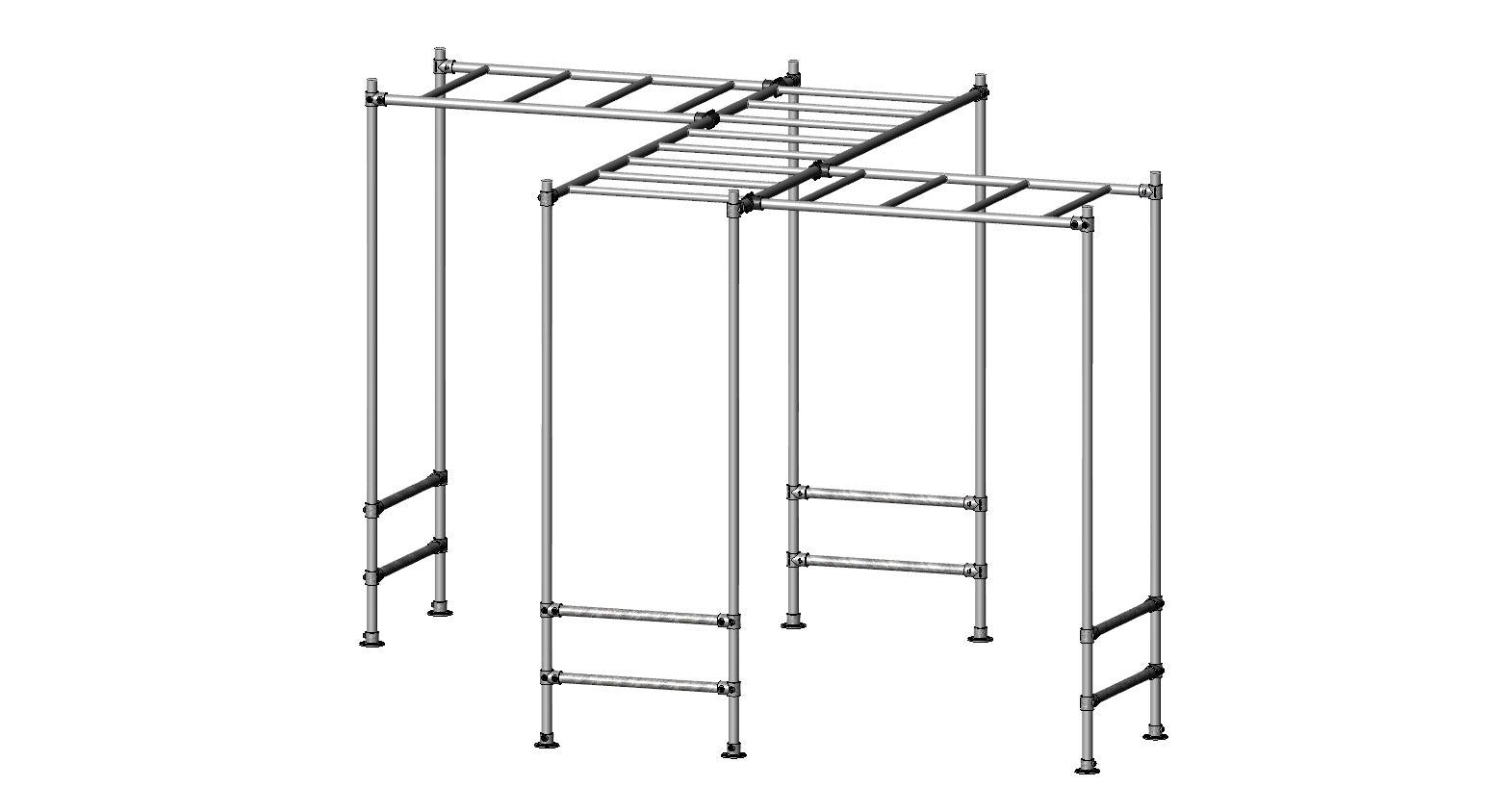

This unique design features an extended ladder section with corners to increase the difficulty. Can you make it all the way across?

Height adjustable and can take an individual load of 150kg. Weather proof, low maintenance and suitable for modifying in the future.

 - Easy to construct
 - Strong and sturdy

 - Built to last

 - Extendable, add accessories or extend the structure
 - LayBuy and ZipPay available (By request only and subject to approval

Assembled size footprint:

L: 3752mm x W: 2850mm (approx)

Main structure dimensions

L: 2850mm x W: 3600mm x H: 2300mm

Designed for both indoor and outdoor projects. Featuring our easy slip-on and tighten connection system which only requires a hex key to secure, making it simple to assemble.

Fitting Size
Tube Size
Tubeclamp Code
Outside Diameter
Imperial
Metric
T 21
21.3mm
½
15NB
A 27
26.9mm
¾
20NB
B 34
33.7mm
1
25NB
C 42
42.4mm
1 ¼
32NB
D 48
48.3mm
1 ½
40NB
E 60
60.3mm
2
50NB

*Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.




Product: TubeClamp® fittings
Material:

Fittings cast of malleable cast iron - galvanized finish
Cast iron fittings or casting to comply with AS 1832 (ISO 5922)
Hot Dipped Galvanized finish to comply with AS 4680

Set Screw:

Cup Point Case hardened setscrew in 45CR Alloy Steel (alternative* Stainless Steel 308)
Size C42, D48, E60 using 3/8” ISO 228 with 5/16” (8mm) hex key
Size A27, B34 using ¼” ISO 228 with ¼” (6.5mm) hex key
Size T21 using 1/8 BSF with 3/16” (5mm) hex key

Feature: No Welding Slip on Structural Fittings
Tensile Load: min 5,650 N axial load subjected to 40Nm tightened torque (FOS 2.0 min)
Testing: Internally by Solid Dynamics Engineering Pty Ltd. Testing videos are available upon request
Design: Tubeclamp Structural Fittings, when properly installed per manufacturing recommendations, meet or exceed all applicable requirements as specified by Australian Standard
Applications: Handrails, Trolley Bays, Temporary Structure, Shop Fittings, Furnitures and many more.
