Parkour Fitness Borneo 8013

  • Sale
  • Regular price $1,418.34
Tax included.

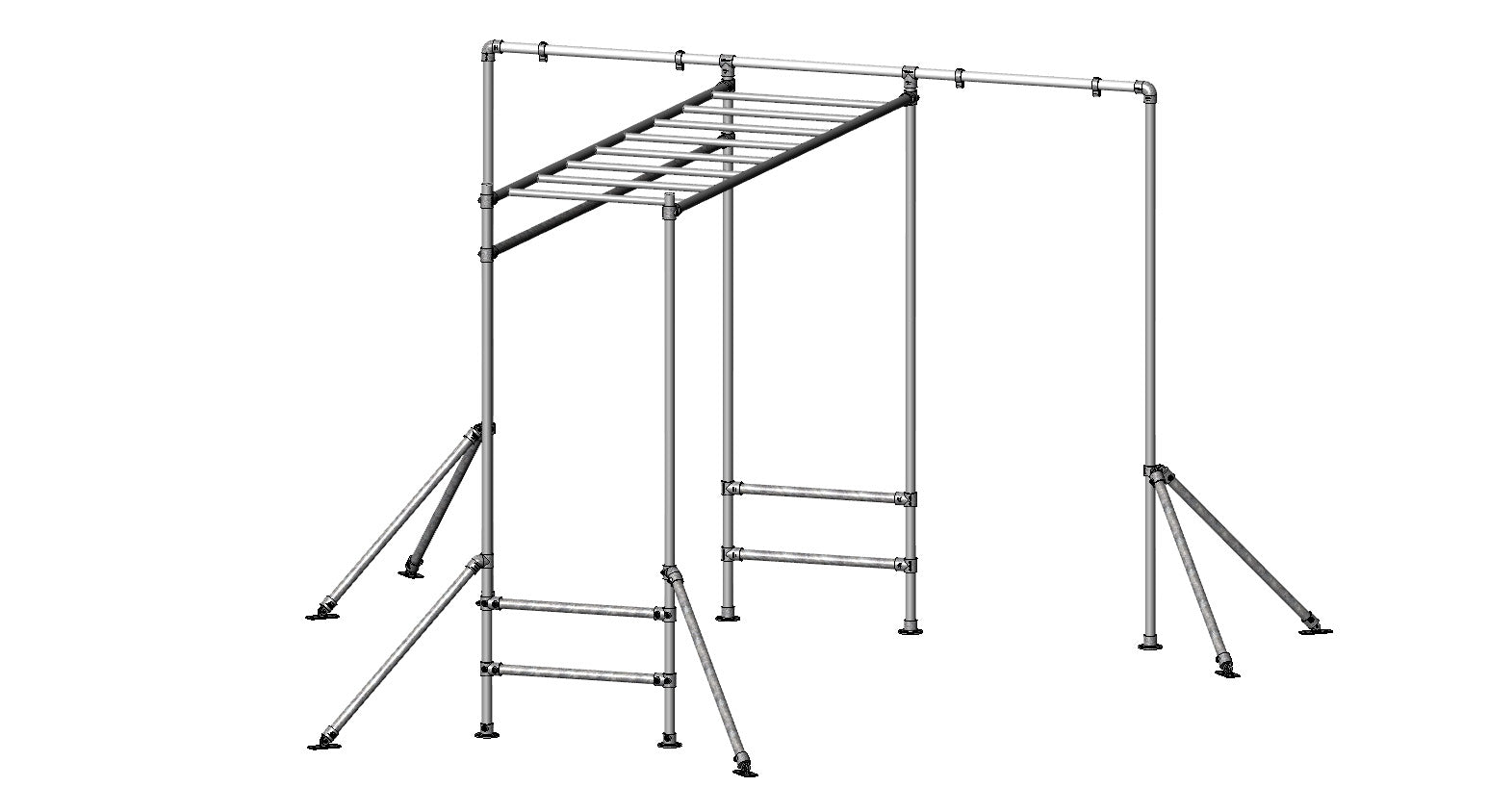

More bars, more fun! This structure features a triple end frame at one end, with lots of room to monkey around. Made from our strong and durable Tubeclamp fittings, this structure will last a lifetime.

Height adjustable and can take an individual load of 150kg. Weather proof, low maintenance and suitable for modifying in the future.

 - Easy to construct
 - Strong and sturdy
 - Built to last
 - Extendable, add accessories or extend the structure
 - LayBuy and ZipPay available (By request only and subject to approval

Assembled size footprint:

L: 4580mm x W: 4630mm (approx)

Main structure dimensions

L: 2850mm x W: 2850mm x H: 2300mm

    Designed for both indoor and outdoor projects. Featuring our easy slip-on and tighten connection system which only requires a hex key to secure, making it simple to assemble.

    Fitting Size
    Tube Size
    Tubeclamp Code
    Outside Diameter
    Imperial
    Metric
    T 21
    21.3mm
    ½
    15NB
    A 27
    26.9mm
    ¾
    20NB
    B 34
    33.7mm
    1
    25NB
    C 42
    42.4mm
    1 ¼
    32NB
    D 48
    48.3mm
    1 ½
    40NB
    E 60
    60.3mm
    2
    50NB

    *Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.




    Product: TubeClamp® fittings
    Material:

    Fittings cast of malleable cast iron - galvanized finish
    Cast iron fittings or casting to comply with AS 1832 (ISO 5922)
    Hot Dipped Galvanized finish to comply with AS 4680

    Set Screw:

    Cup Point Case hardened setscrew in 45CR Alloy Steel (alternative* Stainless Steel 308)
    Size C42, D48, E60 using 3/8” ISO 228 with 5/16” (8mm) hex key
    Size A27, B34 using ¼” ISO 228 with ¼” (6.5mm) hex key
    Size T21 using 1/8 BSF with 3/16” (5mm) hex key

    Feature: No Welding Slip on Structural Fittings
    Tensile Load: min 5,650 N axial load subjected to 40Nm tightened torque (FOS 2.0 min)
    Testing: Internally by Solid Dynamics Engineering Pty Ltd. Testing videos are available upon request
    Design: Tubeclamp Structural Fittings, when properly installed per manufacturing recommendations, meet or exceed all applicable requirements as specified by Australian Standard
    Applications: Handrails, Trolley Bays, Temporary Structure, Shop Fittings, Furnitures and many more.
