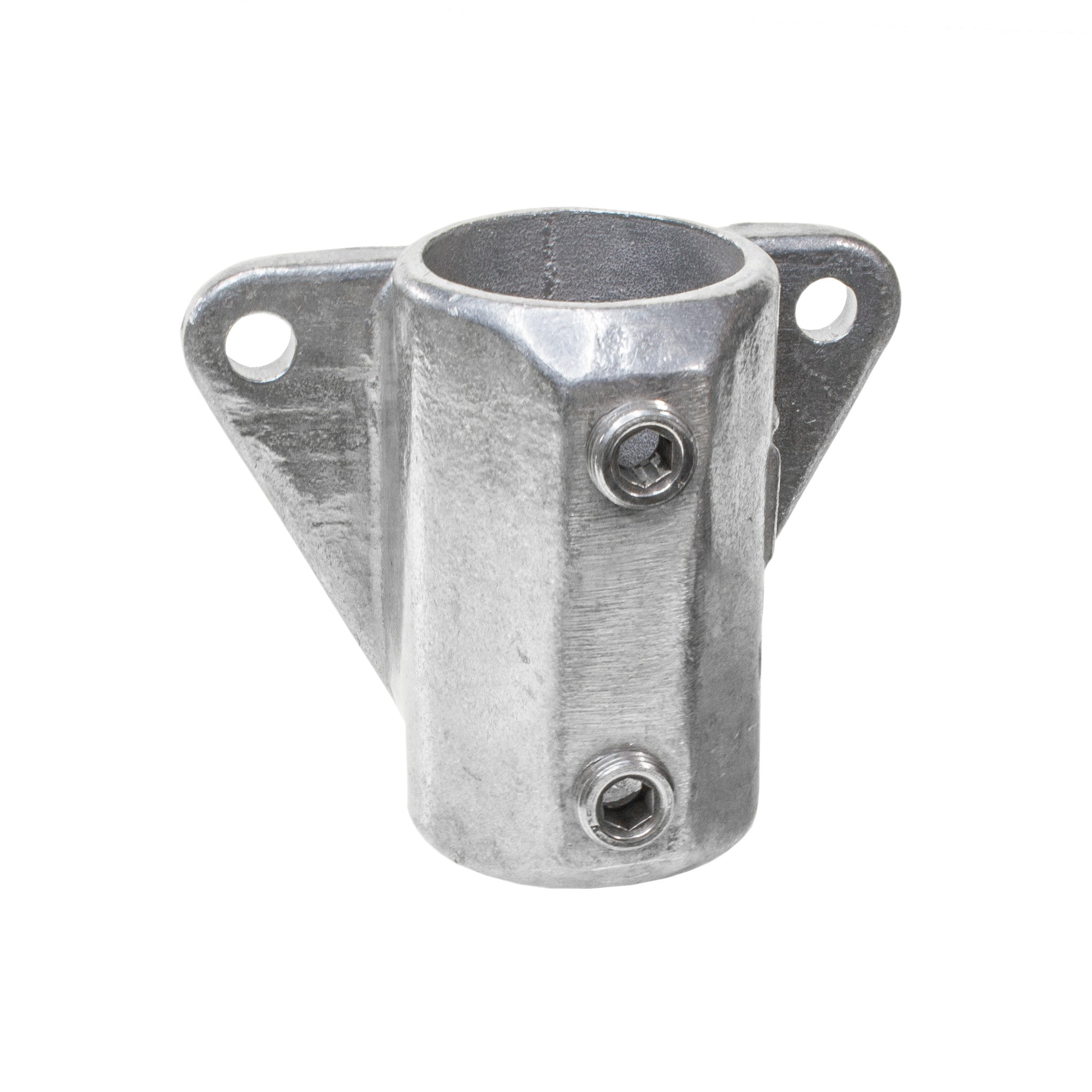

Side palm flange for fixing guardrail and balustrades to walls, parapets, steps and ramps. The upright cannot drop through the socket.
This fitting is available for 48.3mm only.
*Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.
| Product: | LiteClamp® fittings |
| Material: | Lightweight high strength Aluminium-Magnesium Alloy A535 |
| Set Screw: | Forged internal/external knurled cup point set screw with class 3A threads 6mm with 5mm hex (allen) socket key |
| Feature: | Corrosion Resistance Permanent shinny surface Low Maintenance |
| Tensile Load: | Up to 185kg (with FOS 1.5 min) |
| Testing: | Internally by Solid Dynamics Engineering Pty Ltd. Testing videos are available upon request |
| Applications: | Handrails, Shop Fittings, Furnitures and many more. |
